- Trion V4e Pro vs Orion ONE-Laser

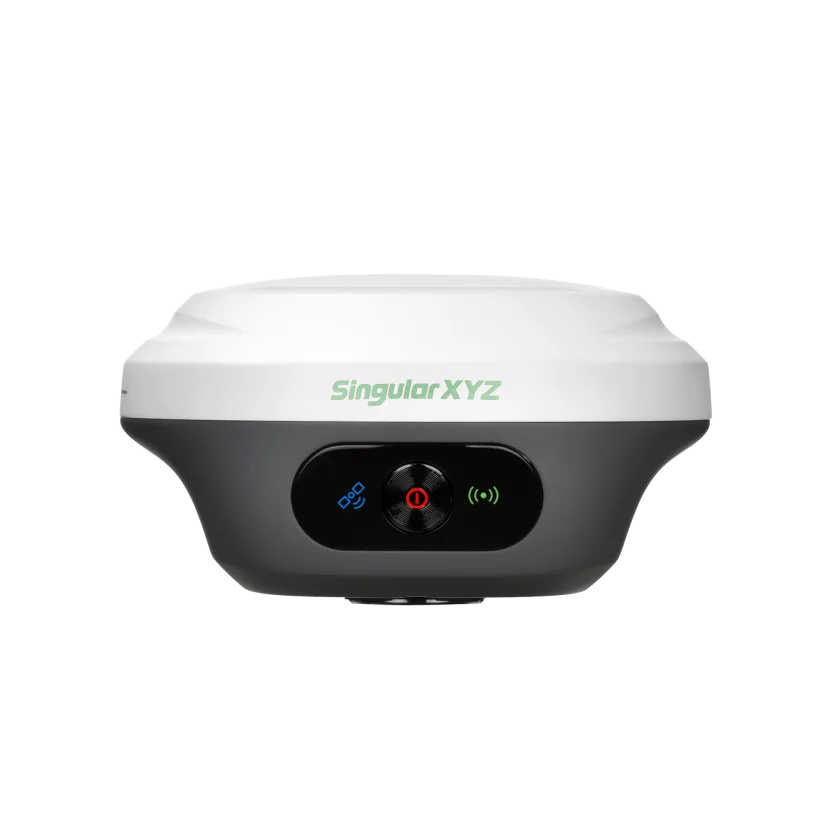

FJD Trion V4e Pro vs SingularXYZ Orion ONE-Laser
What Trion V4e Pro does better (1) and where Orion ONE-Laser wins (3) — every spec side by side.
vs
4.6Positioning6.3
5.9Connectivity & safety5.9
4.8Battery4.8
4.0Durability7.2
Dimensions
Size comparison
Trion V4e ProOrion ONE-Laser
| Trion V4e Pro | Orion ONE-Laser | Difference | |
|---|---|---|---|
| Height | 182 mm | 59 mm | +123 mm |
| Width | 53 mm | 107 mm | −54 mm |
| Depth | 53 mm | 107 mm | −54 mm |
| Weight | 320 g | 547 g | −227 g |
Drawn to the same scale from the official dimensions (front and side).
Why is Trion V4e Pro better than Orion ONE-Laser?
- Weight320 g vs 547 g+71%
Why is Orion ONE-Laser better than Trion V4e Pro?
- Operating temperature (min)-20 °C vs -40 °C+-50%
- Drop resistance1.2 m vs 2 m+67%
- Operating temperature (max)60 °C vs 65 °C+8%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS | GPS, GLONASS, Galileo, BeiDou, QZSS |
| Satellite systems supported | 5 | 5 |
| Multi-band GNSS (L1 + L5/L2) | — | Yes |
| Frequency bands | — | L1, L2, L5, E1, E5a, E5b, B1, B2, B3 |
| Tracking channels | 1,408 | 1,408 |
| SBAS (WAAS / EGNOS) | — | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 8 mm | 8 mm |
| RTK accuracy (vertical) | 15 mm | 15 mm |
| Static accuracy (horizontal) | — | 2.5 mm |
| Tilt compensation (IMU) | Yes | Yes |
| Max. tilt angle | 30° | 60° |
| Correction sources | NTRIP (internet) | UHF radio, L-band / PPP, SBAS |
| Built-in UHF radio | — | Yes |
| L-band / PPP corrections | — | Yes |
| Raw data logging (RINEX) | — | Yes |
| Maps & navigation | ||
| Internal storage | — | 8 GB |
| Connectivity & safety | ||
| Wi-Fi | Yes | Yes |
| Bluetooth | Yes | Yes |
| NFC | — | Yes |
| USB-C | — | Yes |
| Camera | — | Yes |
| Battery & power | ||
| Battery life | 12 h | 12 h |
| Build & durability | ||
| Protection rating | IP67 | IP67 |
| Water protection (IPx) | IPx7 | IPx7 |
| Drop resistance | 1.2 m | 2 m |
| Operating temperature (min) | -20 °C | -40 °C |
| Operating temperature (max) | 60 °C | 65 °C |
| Weight | 320 g | 547 g |
| Width | 53 mm | 107 mm |
| Height | 182 mm | 59 mm |
| Depth | 53 mm | 107 mm |
| Housing material | PC+ABS | Magnesium-aluminum alloy |
