- GPSMAP H1 vs GPSMAP H1i Plus

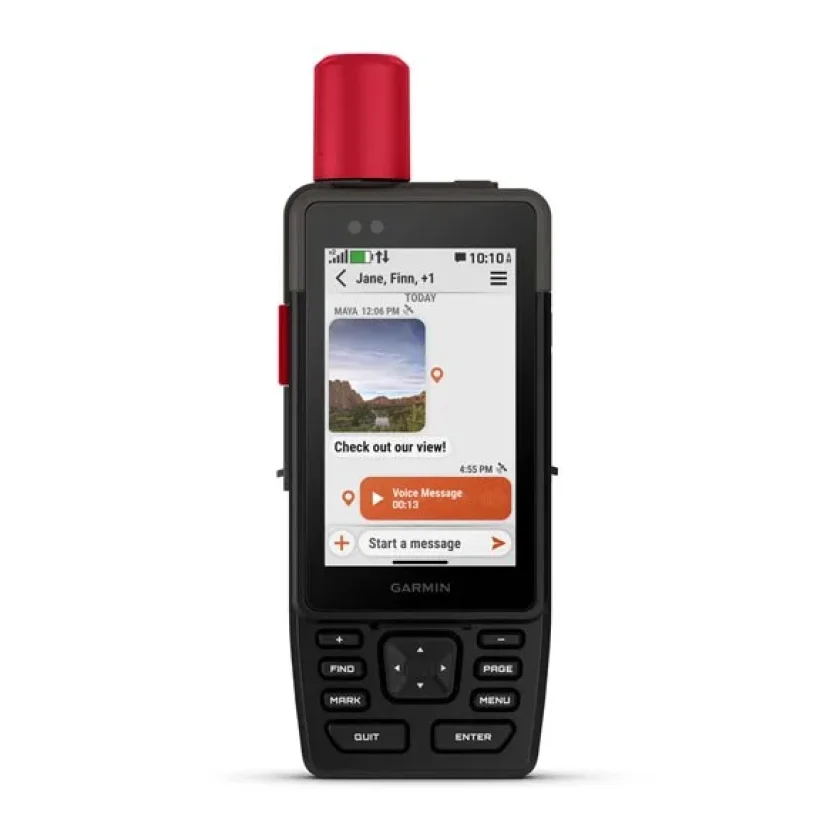

Garmin GPSMAP H1 vs Garmin GPSMAP H1i Plus
What GPSMAP H1 does better (1) and where GPSMAP H1i Plus wins (0) — every spec side by side.
vs
8.2Positioning8.2
7.9Display7.9
9.6Maps & navigation9.0
4.0Connectivity & safety6.4
8.7Battery8.7
4.3Durability4.0
Dimensions
Size comparison
GPSMAP H1GPSMAP H1i Plus
| GPSMAP H1 | GPSMAP H1i Plus | Difference | |
|---|---|---|---|
| Height | 179 mm | 179 mm | = |
| Width | 67 mm | 67 mm | = |
| Depth | 33 mm | 33 mm | = |
| Weight | 276 g | 290 g | −14 g |
Drawn to the same scale from the official dimensions (front and side).
Why is GPSMAP H1 better than GPSMAP H1i Plus?
- Weight276 g vs 290 g+5%
Why is GPSMAP H1i Plus better than GPSMAP H1?
GPSMAP H1i Plus has no measurable advantages in this pair.
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, Galileo, BeiDou, QZSS, NavIC (IRNSS) | GPS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 5 | 5 |
| Multi-band GNSS (L1 + L5/L2) | Yes | Yes |
| Raw data logging (RINEX) | Yes | Yes |
| Display | ||
| Screen size | 3.5″ | 3.5″ |
| Resolution | 282 × 470 | 282 × 470 |
| Horizontal resolution | 282 px | 282 px |
| Vertical resolution | 470 px | 470 px |
| Pixel density | 157 ppi | 157 ppi |
| Display type | Transflective colour (sunlight-readable) | Transflective colour (sunlight-readable) |
| Touchscreen | Yes | Yes |
| Maps & navigation | ||
| Preloaded maps | Yes | Yes |
| Map types | Road, Topographic, Satellite imagery | Road, Topographic, Satellite imagery |
| Turn-by-turn routing | Yes | Yes |
| Voice control | — | Yes |
| Satellite imagery | Yes | Yes |
| Internal storage | 64 GB | 64 GB |
| Memory card slot | Yes | Yes |
| Barometric altimeter | Yes | Yes |
| Connectivity & safety | ||
| Two-way satellite messaging | — | Yes |
| SOS / emergency alert | — | Yes |
| Satellite network | — | Iridium |
| Wi-Fi | Yes | Yes |
| Bluetooth | Yes | Yes |
| ANT+ | Yes | Yes |
| USB-C | Yes | Yes |
| Smartphone notifications | Yes | Yes |
| Flashlight | Yes | Yes |
| Battery & power | ||
| Battery life | 145 h | 145 h |
| Power source | Built-in rechargeable | Built-in rechargeable |
| Build & durability | ||
| Protection rating | IP67 | IP67 |
| Water protection (IPx) | IPx7 | IPx7 |
| MIL-STD-810 | Yes | Yes |
| Weight | 276 g | 290 g |
| Width | 67 mm | 67 mm |
| Height | 179 mm | 179 mm |
| Depth | 33 mm | 33 mm |
