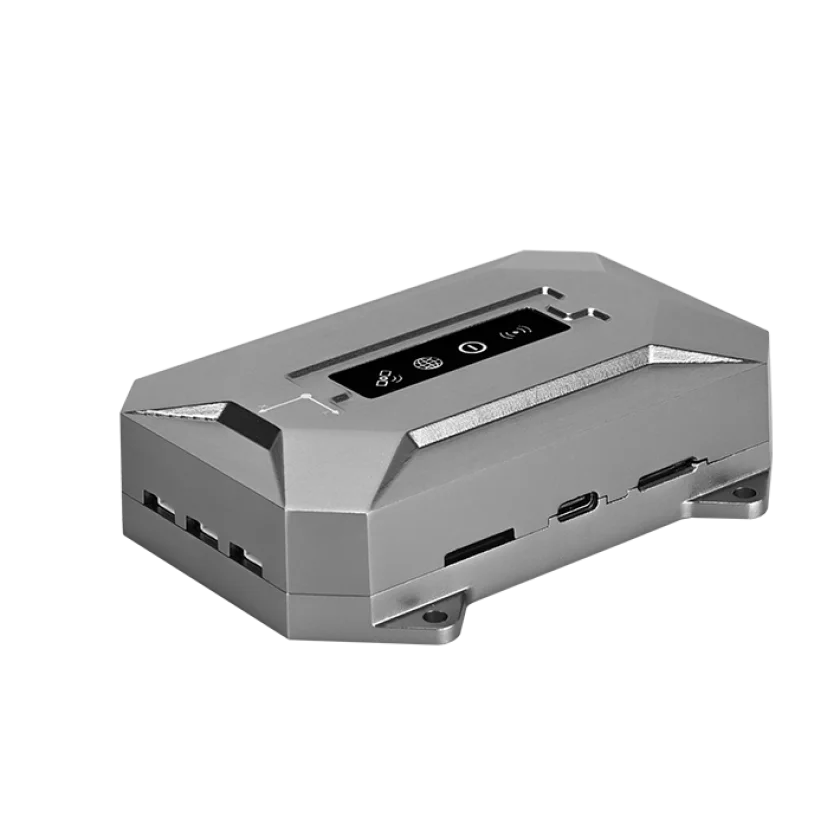

INTEC Magic L vs SingularXYZ SV200 INS
What Magic L does better (0) and where SV200 INS wins (2) — every spec side by side.
Dimensions
Size comparison
Magic LSV200 INS
| Magic L | SV200 INS | Difference | |
|---|---|---|---|
| Height | 109 mm | 29 mm | +80 mm |
| Width | 132 mm | 70 mm | +62 mm |
| Depth | 132 mm | 110 mm | +22 mm |
| Weight | 850 g | 203 g | +647 g |
Drawn to the same scale from the official dimensions (front and side).
Why is Magic L better than SV200 INS?
Magic L has no measurable advantages in this pair.
Why is SV200 INS better than Magic L?
- Weight850 g vs 203 g4.2×
- Satellite systems supported5 vs 6+20%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 5 | 6 |
| Multi-band GNSS (L1 + L5/L2) | Yes | Yes |
| Frequency bands | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3 | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3 |
| Tracking channels | 1,408 | 1,408 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 8 mm | 8 mm |
| RTK accuracy (vertical) | 15 mm | 15 mm |
| Static accuracy (horizontal) | — | 2.5 mm |
| Tilt compensation (IMU) | Yes | — |
| Max. tilt angle | 120° | — |
| Dual-antenna heading | — | Yes |
| Correction sources | NTRIP (internet), UHF radio, Cellular modem, SBAS | NTRIP (internet), Cellular modem, SBAS |
| Built-in UHF radio | Yes | — |
| Maps & navigation | ||
| Memory card slot | — | Yes |
| Connectivity & safety | ||
| Wi-Fi | Yes | — |
| Bluetooth | Yes | Yes |
| Cellular modem (4G / LTE) | Yes | Yes |
| NFC | Yes | — |
| USB-C | Yes | — |
| Camera | Yes | — |
| Battery & power | ||
| Battery life | 18 h | — |
| Build & durability | ||
| MIL-STD-810 | — | Yes |
| Operating temperature (min) | — | -40 °C |
| Operating temperature (max) | — | 85 °C |
| Weight | 850 g | 203 g |
| Width | 132 mm | 70 mm |
| Height | 109 mm | 29 mm |
| Depth | 132 mm | 110 mm |
| Housing material | ABS | Aluminum alloy |
