Alpha GEOGNSS / RTK receiver

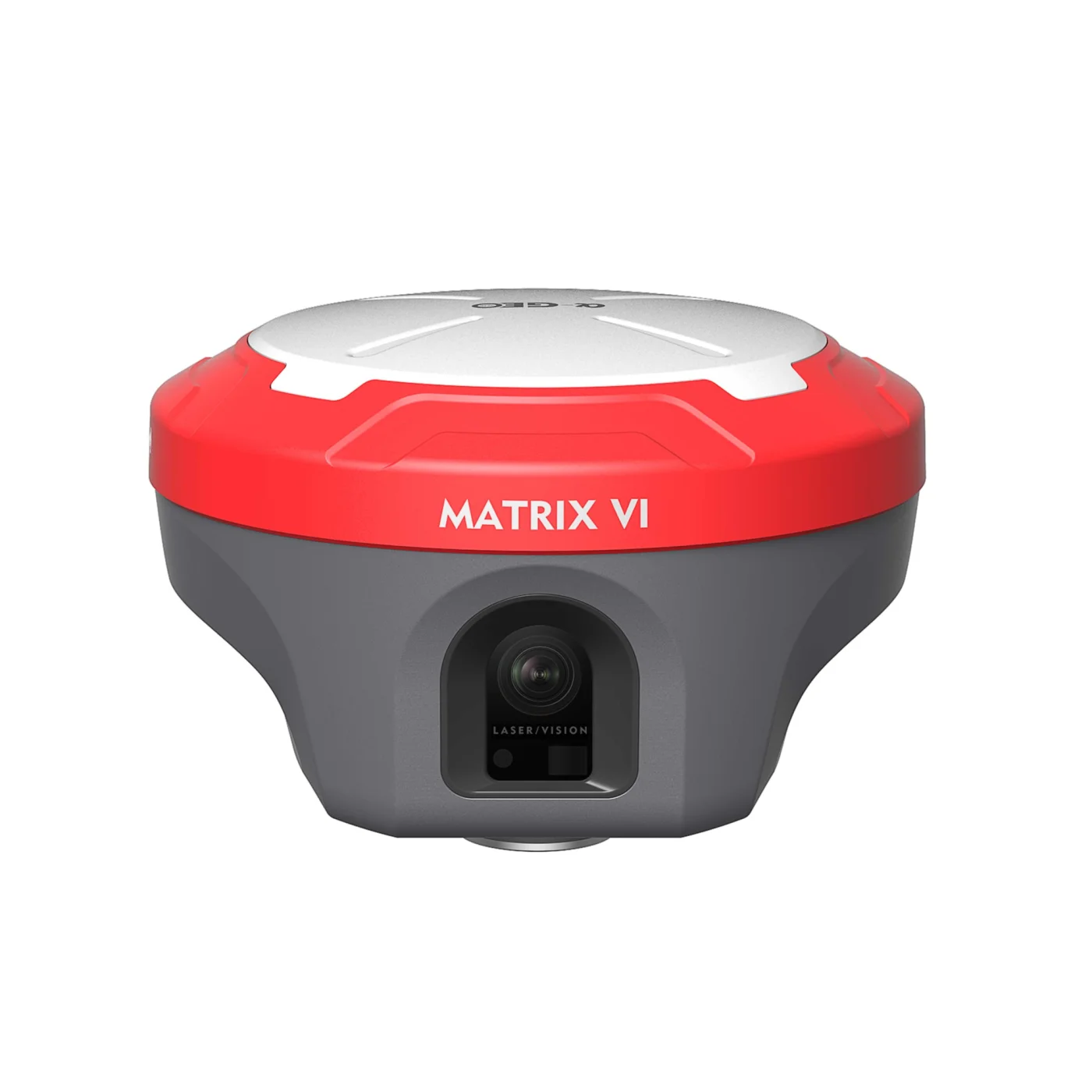

Alpha GEO Matrix VI
Alpha GEO Matrix VI is a GNSS / RTK receiver released in 2025. Key specs: tracking channels 1,408, battery life 12 h, water protection (IPx) IPx7, weight 800 g.
9.2Score
Maps & navigation9.8
Connectivity & safety5.9
Battery5.6
Durability7.4
price range—
- Year
- 2025
- Brand
- Alpha GEO
- Popularity
- #116 of 301
- Model numbers
1,408Tracking channels
12 hBattery life
IPx7Water protection (IPx)
800 gWeight
64 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
Tracking channels · 1,408Top 33%
Battery life · 12 hBottom 25%
Water protection (IPx) · IPx7Bottom 36%
Weight · 800 gBottom 40%
Internal storage · 64 GBTop 5%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is Matrix VI a good choice?
Internal storage: 64 GBbetter than 99% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Tracking channels
- 1,408
- SBAS (WAAS / EGNOS)
- Yes
- L-band / PPP corrections
- Yes
Maps & navigation
- Internal storage
- 64 GB
Connectivity & safety
- Bluetooth
- Yes
- Camera
- Yes
Battery & power
- Battery life
- 12 h
- Battery capacity
- 7,000 mAh
- Power source
- Built-in rechargeable
- External power input
- 9~24V DC external power input to 5-pin LEMO port
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Drop resistance
- 2 m
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 75 °C
- Weight
- 800 g
- Width
- 99 mm
- Height
- 129 mm
- Depth
- 129 mm
- Housing material
- Magnesium alloy
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
