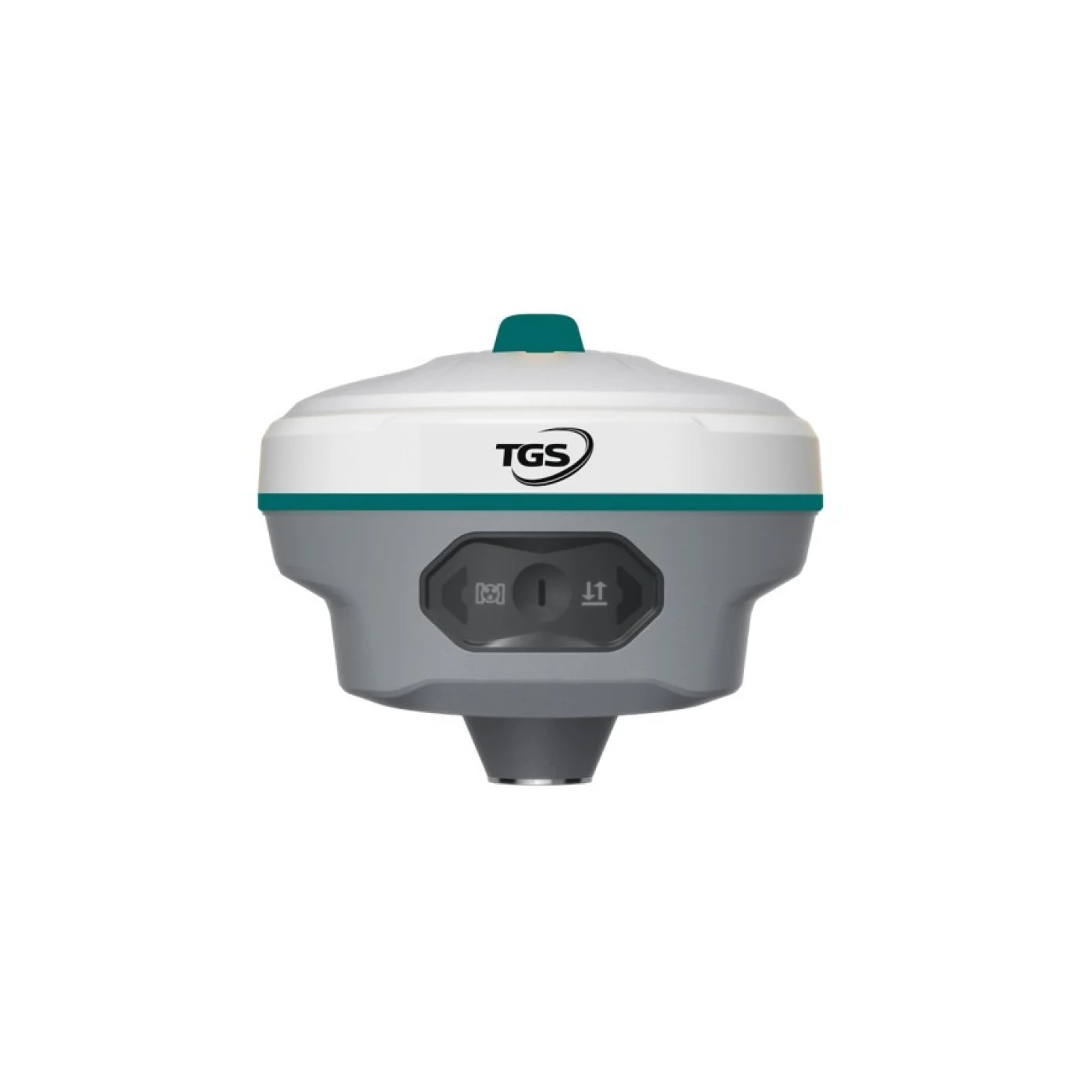

TechnoGISGNSS / RTK receiver
TechnoGIS TGS
TechnoGIS TGS is a GNSS / RTK receiver released in 2024. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 1,408, tilt compensation (IMU), satellite systems supported 6.
9.1Score
Positioning8.3
Maps & navigation4.9
Connectivity & safety5.9
Battery9.7
Durability9.3
price range—
- Year
- 2024
- Brand
- TechnoGIS
- Popularity
- #139 of 301
- Model numbers
- TGS GNSS RTK Receivers
8 mmRTK accuracy (horizontal)
1,408Tracking channels
YesTilt compensation (IMU)
6Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
30 hBattery life
IPx8Water protection (IPx)
850 gWeight
8 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 1,408Top 33%
Satellite systems supported · 6Top 16%
Battery life · 30 hTop 12%
Water protection (IPx) · IPx8Top 11%
Weight · 850 gBottom 23%
Internal storage · 8 GBBottom 23%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is TGS a good choice?
Battery life: 30 hbetter than 98% of GNSS / RTK receivers
Water protection (IPx): IPx8better than 85% of GNSS / RTK receivers
Satellite systems supported: 6better than 70% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 6
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3, L-band
- Tracking channels
- 1,408
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- RTK accuracy (vertical)
- 5 mm
- Static accuracy (horizontal)
- 2.5 mm
- Position update rate
- 1 Hz
- Tilt compensation (IMU)
- Yes
- Max. tilt angle
- 60°
- Built-in UHF radio
- Yes
- L-band / PPP corrections
- Yes
- Raw data logging (RINEX)
- Yes
Maps & navigation
- Internal storage
- 8 GB
Connectivity & safety
- Bluetooth
- Yes
- Cellular modem (4G / LTE)
- Yes
- NFC
- Yes
- USB-C
- Yes
Battery & power
- Battery life
- 30 h
Build & durability
- Protection rating
- IP68
- Water protection (IPx)
- IPx8
- Drop resistance
- 2 m
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 85 °C
- Weight
- 850 g
- Width
- 85 mm
- Height
- 130 mm
- Depth
- 130 mm
- Housing material
- Magnesium Alloy and ABS industrial grade
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
