Bad ElfGNSS / RTK receiver

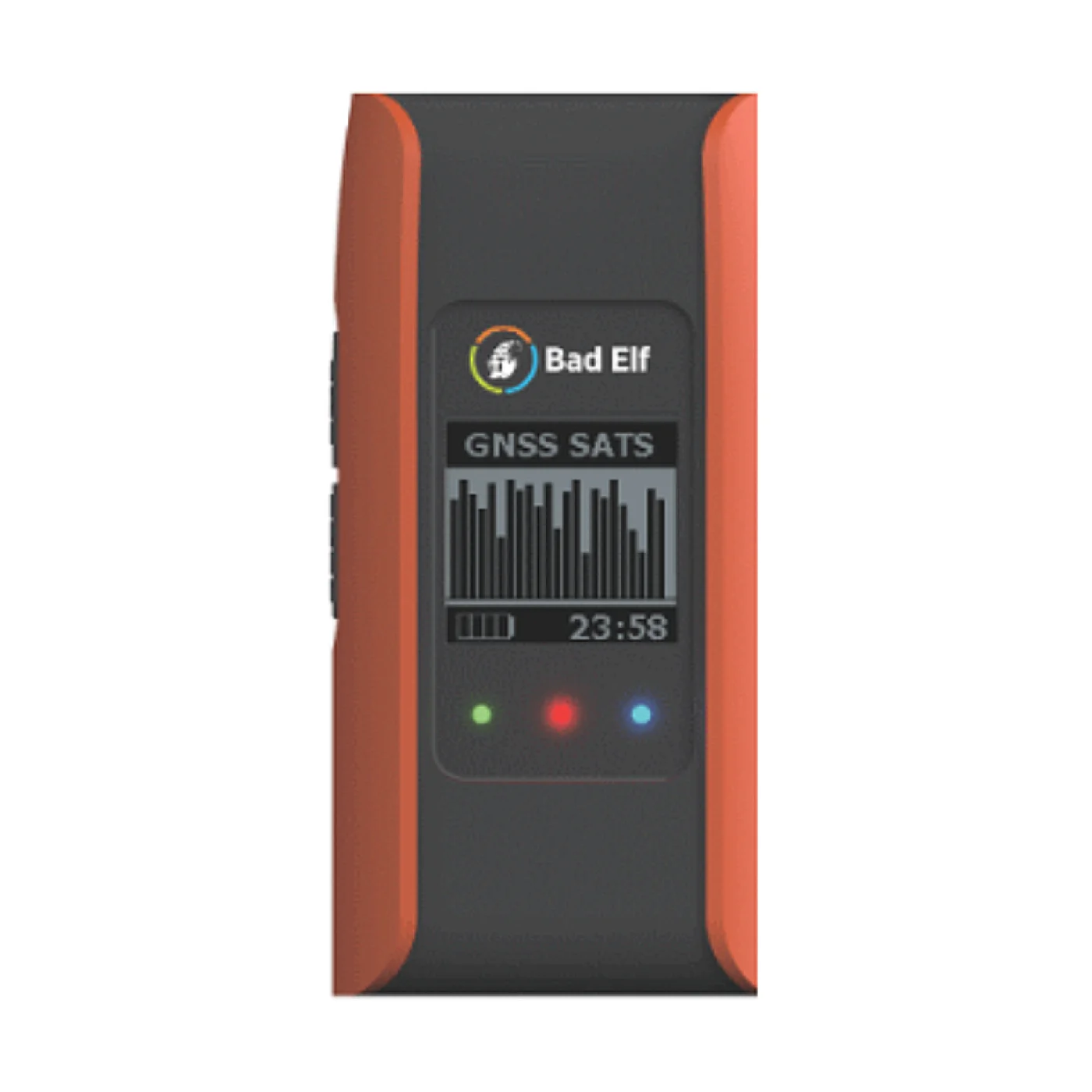

Bad Elf Flex Mini
Bad Elf Flex Mini is a GNSS / RTK receiver released in 2023. Key specs: RTK accuracy (horizontal) 10 mm, tracking channels 135, satellite systems supported 5, multi-band GNSS (L1 + L5/L2).
8.2Score
Positioning2.1
Connectivity & safety5.9
Battery9.4
price range—
- Year
- 2023
- Brand
- Bad Elf
- Popularity
- #154 of 301
- Model numbers
- Bad Elf Flex Mini GNSS
10 mmRTK accuracy (horizontal)
135Tracking channels
5Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
24 hBattery life
143 gWeight
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 10 mmBottom 8%
Tracking channels · 135Bottom 1%
Satellite systems supported · 5Bottom 40%
Battery life · 24 hTop 16%
Weight · 143 gTop 8%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is Flex Mini a good choice?
Battery life: 24 hbetter than 95% of GNSS / RTK receivers
Weight: 143 gbetter than 98% of GNSS / RTK receivers
Weak points
RTK accuracy (horizontal): 10 mmworse than 86% of GNSS / RTK receivers
Satellite systems supported: 5worse than 88% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 5
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L5, E1, E5a, B1, B2
- Tracking channels
- 135
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 10 mm
Connectivity & safety
- Bluetooth
- Yes
- USB-C
- Yes
Battery & power
- Battery life
- 24 h
Build & durability
- Weight
- 143 g
- Width
- 45 mm
- Height
- 90 mm
- Depth
- 32 mm
- Housing material
- Polycarbonate
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
