CHCNAVGNSS / RTK receiver

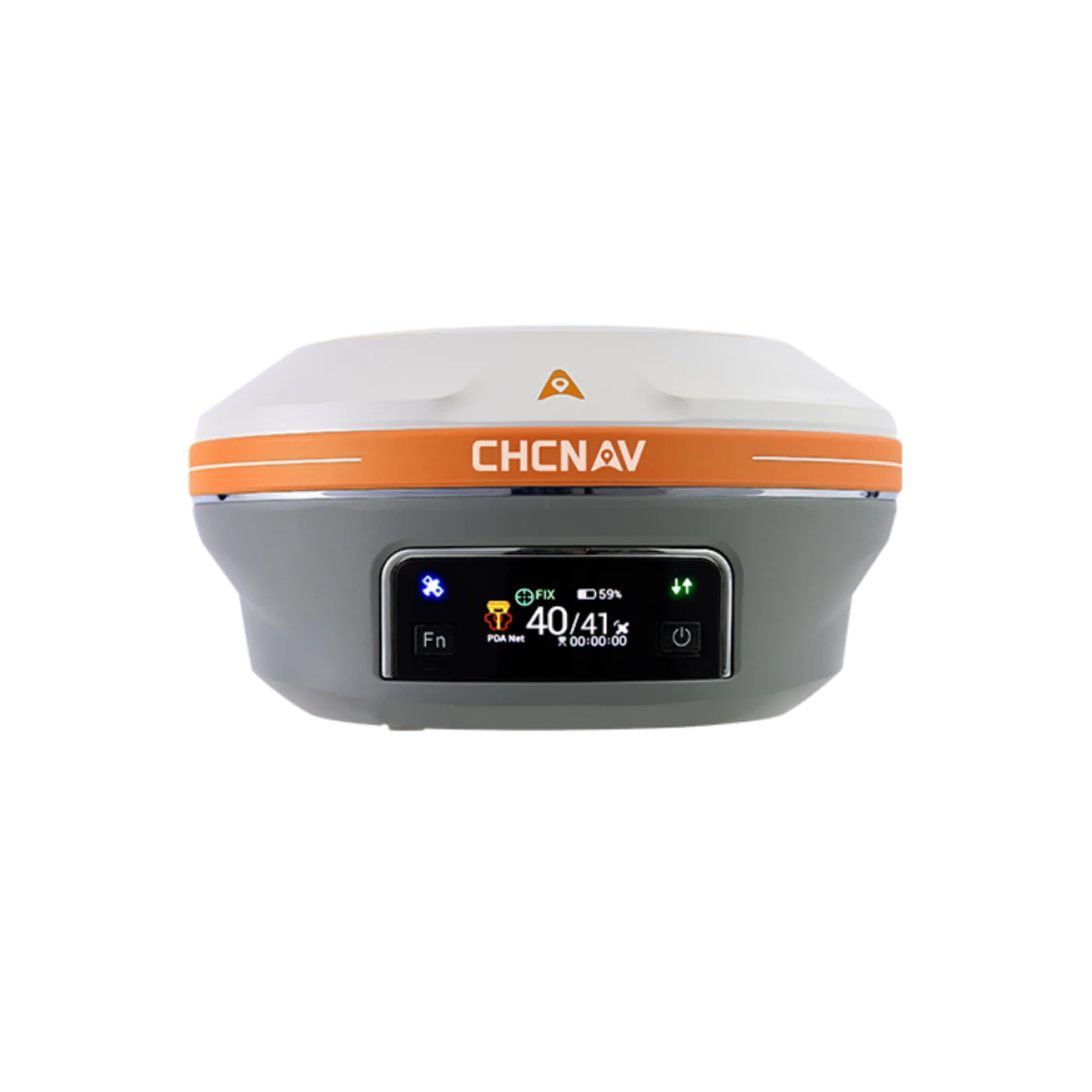

CHCNAV i93
CHCNAV i93 is a GNSS / RTK receiver released in 2023. Key specs: tracking channels 1,408, tilt compensation (IMU), satellite systems supported 5, battery life 36 h.
8.6Score
Positioning4.0
Connectivity & safety5.9
Battery9.8
Durability3.4
price range—
- Year
- 2023
- Brand
- CHCNAV
- Popularity
- #162 of 301
- Model numbers
- i93 VISUAL IMU-RTK GNSS
1,408Tracking channels
YesTilt compensation (IMU)
5Satellite systems supported
36 hBattery life
1,150 gWeight
Spec guide
How it ranks among GNSS / RTK receivers
Tracking channels · 1,408Top 33%
Satellite systems supported · 5Bottom 40%
Battery life · 36 hTop 8%
Weight · 1,150 gBottom 15%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is i93 a good choice?
Battery life: 36 hbetter than 99% of GNSS / RTK receivers
Weak points
Satellite systems supported: 5worse than 88% of GNSS / RTK receivers
Weight: 1,150 gworse than 76% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 5
- Tracking channels
- 1,408
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- Tilt compensation (IMU)
- Yes
- L-band / PPP corrections
- Yes
Connectivity & safety
- Wi-Fi
- Yes
- Bluetooth
- Yes
- Camera
- Yes
Battery & power
- Battery life
- 36 h
- External power input
- 9 V DC to 28 V DC
Build & durability
- MIL-STD-810
- Yes
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 65 °C
- Weight
- 1,150 g
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
