FJDNewGNSS / RTK receiver

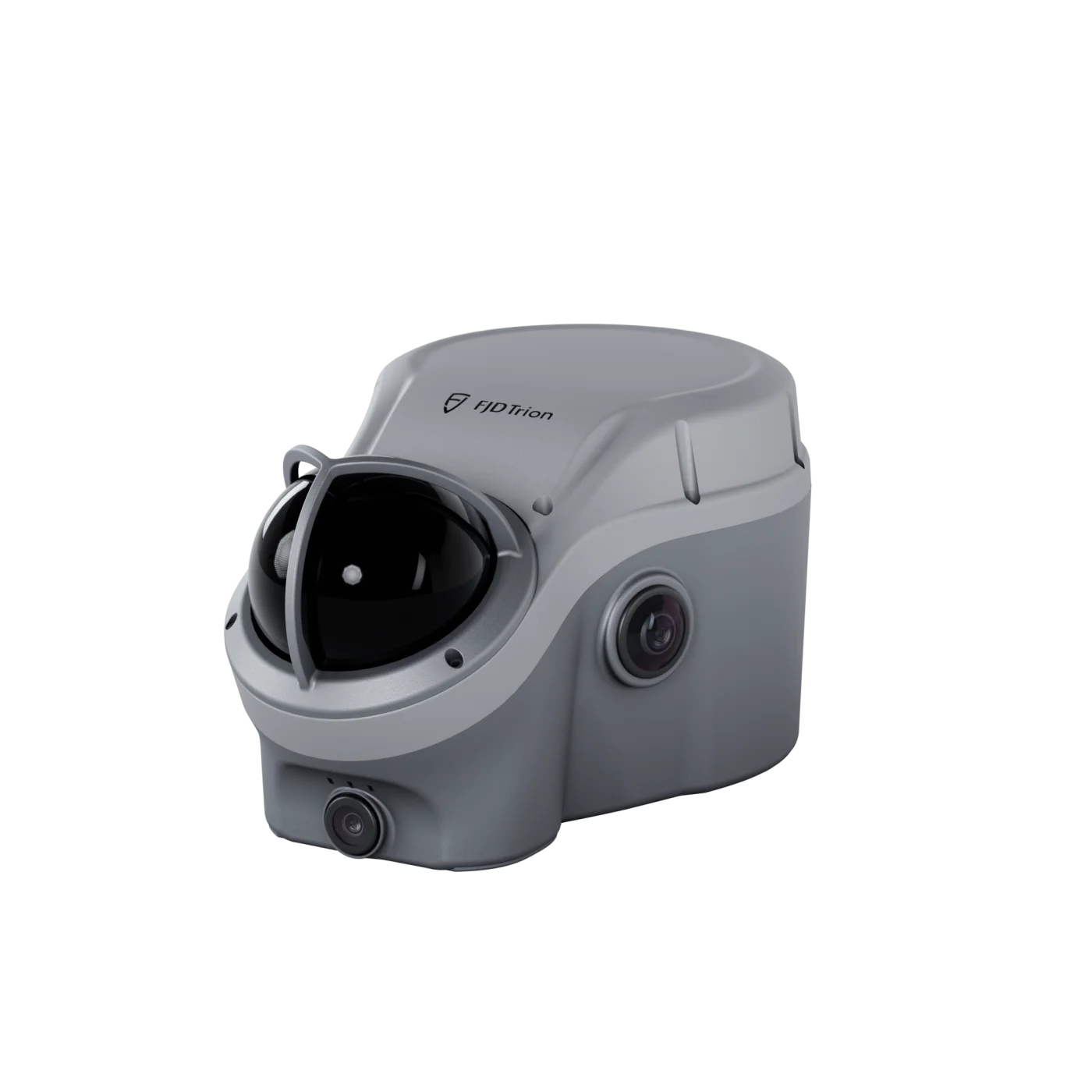

FJD Trion V100F
FJD Trion V100F is a GNSS / RTK receiver released in 2026. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 1,408, tilt compensation (IMU), satellite systems supported 6.
3.7Score
Positioning8.6
Connectivity & safety5.9
Battery2.5
Durability2.1
price range—
- Year
- 2026
- Brand
- FJD
- Popularity
- #75 of 301
- Model numbers
- FJD Trion V100F
8 mmRTK accuracy (horizontal)
1,408Tracking channels
YesTilt compensation (IMU)
6Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
5 hBattery life
IPx5Water protection (IPx)
1,750 gWeight
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 1,408Top 33%
Satellite systems supported · 6Top 19%
Battery life · 5 hBottom 24%
Water protection (IPx) · IPx5Bottom 3%
Weight · 1,750 gBottom 4%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is Trion V100F a good choice?
Satellite systems supported: 6better than 70% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx5worse than 100% of GNSS / RTK receivers
Battery life: 5 hworse than 97% of GNSS / RTK receivers
Weight: 1,750 gworse than 94% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 6
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3
- Tracking channels
- 1,408
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- Static accuracy (horizontal)
- 2.5 mm
- Tilt compensation (IMU)
- Yes
- Max. tilt angle
- 60°
- Built-in UHF radio
- Yes
- Raw data logging (RINEX)
- Yes
Connectivity & safety
- Wi-Fi
- Yes
- Bluetooth
- Yes
- Cellular modem (4G / LTE)
- Yes
- NFC
- Yes
- USB-C
- Yes
- Camera
- Yes
Battery & power
- Battery life
- 5 h
- Battery capacity
- 4,500 mAh
Build & durability
- Protection rating
- IP65
- Water protection (IPx)
- IPx5
- Operating temperature (min)
- -20 °C
- Operating temperature (max)
- 55 °C
- Weight
- 1,750 g
- Width
- 215 mm
- Height
- 120 mm
- Depth
- 130 mm
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
