- Trion V100F vs Xbase

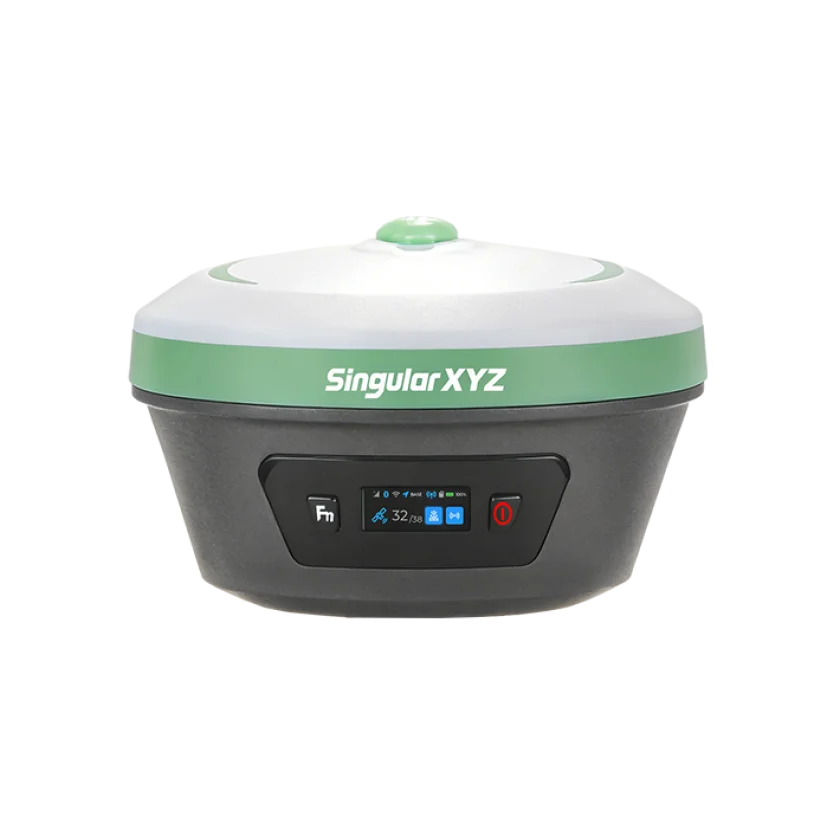

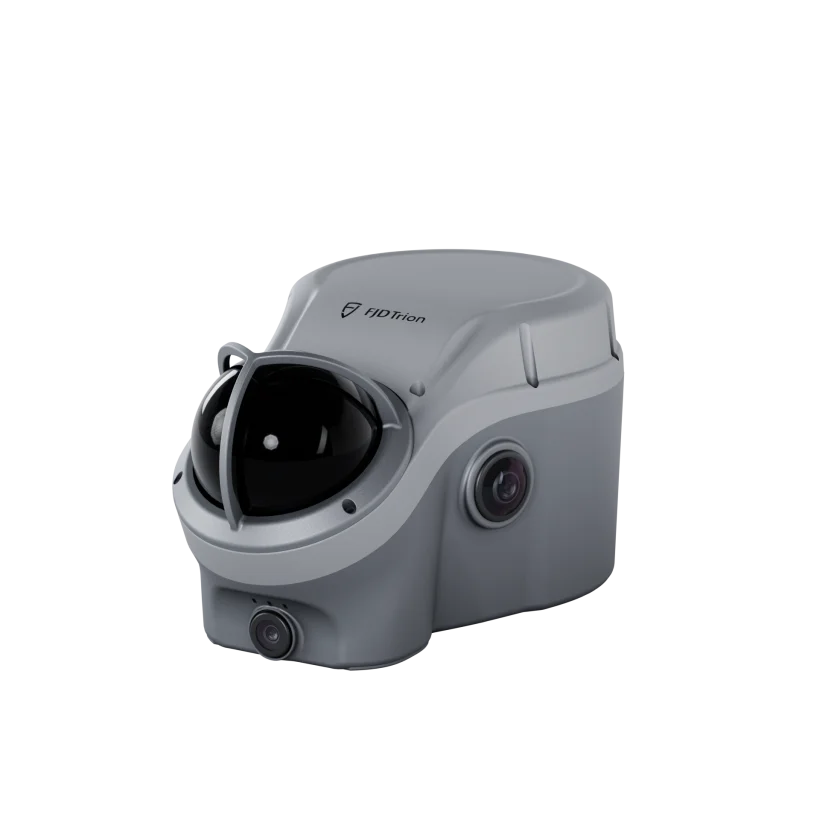

FJD Trion V100F vs SingularXYZ Xbase
What Trion V100F does better (0) and where Xbase wins (5) — every spec side by side.
vs
8.6Positioning8.1
5.9Connectivity & safety5.9
2.5Battery2.4
2.1Durability6.4
Dimensions
Size comparison
Trion V100FXbase
| Trion V100F | Xbase | Difference | |
|---|---|---|---|
| Height | 120 mm | 93 mm | +27 mm |
| Width | 215 mm | 145 mm | +70 mm |
| Depth | 130 mm | 145 mm | −15 mm |
| Weight | 1,750 g | 1,204 g | +546 g |
Drawn to the same scale from the official dimensions (front and side).
Why is Trion V100F better than Xbase?
Trion V100F has no measurable advantages in this pair.
Why is Xbase better than Trion V100F?
- Battery life5 h vs 8 h+60%
- Water protection (IPx)IPx5 vs IPx8+60%
- Weight1,750 g vs 1,204 g+45%
- Operating temperature (min)-20 °C vs -30 °C+-33%
- Operating temperature (max)55 °C vs 65 °C+18%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 6 | 6 |
| Multi-band GNSS (L1 + L5/L2) | Yes | Yes |
| Frequency bands | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3 | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3 |
| Tracking channels | 1,408 | 1,408 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 8 mm | 8 mm |
| RTK accuracy (vertical) | — | 15 mm |
| Static accuracy (horizontal) | 2.5 mm | 2.5 mm |
| Tilt compensation (IMU) | Yes | Yes |
| Max. tilt angle | 60° | — |
| Correction sources | NTRIP (internet), UHF radio, LoRa radio, Cellular modem, SBAS | NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS |
| Built-in UHF radio | Yes | Yes |
| L-band / PPP corrections | — | Yes |
| Raw data logging (RINEX) | Yes | Yes |
| Maps & navigation | ||
| Internal storage | — | 8 GB |
| Connectivity & safety | ||
| Wi-Fi | Yes | Yes |
| Bluetooth | Yes | Yes |
| Cellular modem (4G / LTE) | Yes | Yes |
| NFC | Yes | Yes |
| USB-C | Yes | Yes |
| Camera | Yes | — |
| Battery & power | ||
| Battery life | 5 h | 8 h |
| Battery capacity | 4,500 mAh | — |
| Build & durability | ||
| Protection rating | IP65 | IP68 |
| Water protection (IPx) | IPx5 | IPx8 |
| Drop resistance | — | 2 m |
| Operating temperature (min) | -20 °C | -30 °C |
| Operating temperature (max) | 55 °C | 65 °C |
| Weight | 1,750 g | 1,204 g |
| Width | 215 mm | 145 mm |
| Height | 120 mm | 93 mm |
| Depth | 130 mm | 145 mm |
| Housing material | — | Magnesium-aluminum Alloy |
