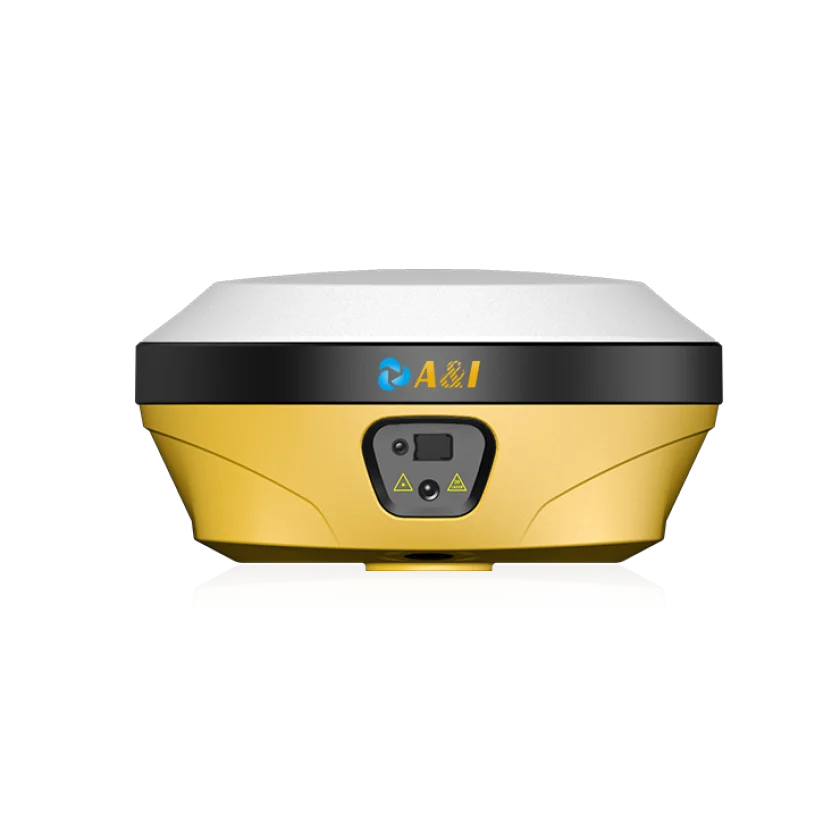

Archimedes Innovation AL16 vs eSurvey eBase 30
What AL16 does better (4) and where eBase 30 wins (4) — every spec side by side.
Dimensions
Size comparison
AL16eBase 30
| AL16 | eBase 30 | Difference | |
|---|---|---|---|
| Height | 72 mm | 110 mm | −38 mm |
| Width | 139 mm | 151 mm | −12 mm |
| Depth | 72 mm | 151 mm | −79 mm |
| Weight | 918 g | 1,300 g | −382 g |
Drawn to the same scale from the official dimensions (front and side).
Why is AL16 better than eBase 30?
- Multi-band GNSS (L1 + L5/L2)Yes · eBase 30: No
- Battery life16 h vs 13 h+23%
- Weight918 g vs 1,300 g+42%
- Drop resistance2 m vs 1.2 m+67%
Why is eBase 30 better than AL16?
- RTK accuracy (horizontal)10 mm vs 8 mm+25%
- Battery capacity6,500 mAh vs 24,000 mAh3.7×
- Operating temperature (min)-25 °C vs -30 °C+-17%
- Operating temperature (max)60 °C vs 65 °C+8%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 6 | 6 |
| Multi-band GNSS (L1 + L5/L2) | Yes | No |
| Frequency bands | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3 | L-band |
| Tracking channels | 1,408 | 1,408 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 10 mm | 8 mm |
| RTK accuracy (vertical) | 15 mm | 15 mm |
| Static accuracy (horizontal) | 2.5 mm | 2.5 mm |
| Tilt compensation (IMU) | Yes | — |
| Max. tilt angle | 60° | — |
| Correction sources | NTRIP (internet), UHF radio, LoRa radio, Cellular modem, L-band / PPP, SBAS | NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS |
| Built-in UHF radio | Yes | Yes |
| L-band / PPP corrections | Yes | Yes |
| Raw data logging (RINEX) | — | Yes |
| Maps & navigation | ||
| Internal storage | 8 GB | 8 GB |
| Connectivity & safety | ||
| Wi-Fi | Yes | Yes |
| Bluetooth | Yes | Yes |
| Cellular modem (4G / LTE) | Yes | Yes |
| NFC | Yes | — |
| USB-C | Yes | Yes |
| Camera | Yes | — |
| Battery & power | ||
| Battery life | 16 h | 13 h |
| Battery capacity | 6,500 mAh | 24,000 mAh |
| Power source | — | Built-in rechargeable |
| External power input | — | Type-C PD (12V/1.5A), 5-pin (15V/2A) |
| Build & durability | ||
| Protection rating | IP68 | IP68 |
| Water protection (IPx) | IPx8 | IPx8 |
| Drop resistance | 2 m | 1.2 m |
| Operating temperature (min) | -25 °C | -30 °C |
| Operating temperature (max) | 60 °C | 65 °C |
| Weight | 918 g | 1,300 g |
| Width | 139 mm | 151 mm |
| Height | 72 mm | 110 mm |
| Depth | 72 mm | 151 mm |
| Housing material | — | Magnalium |
