eSurveyGNSS / RTK receiver

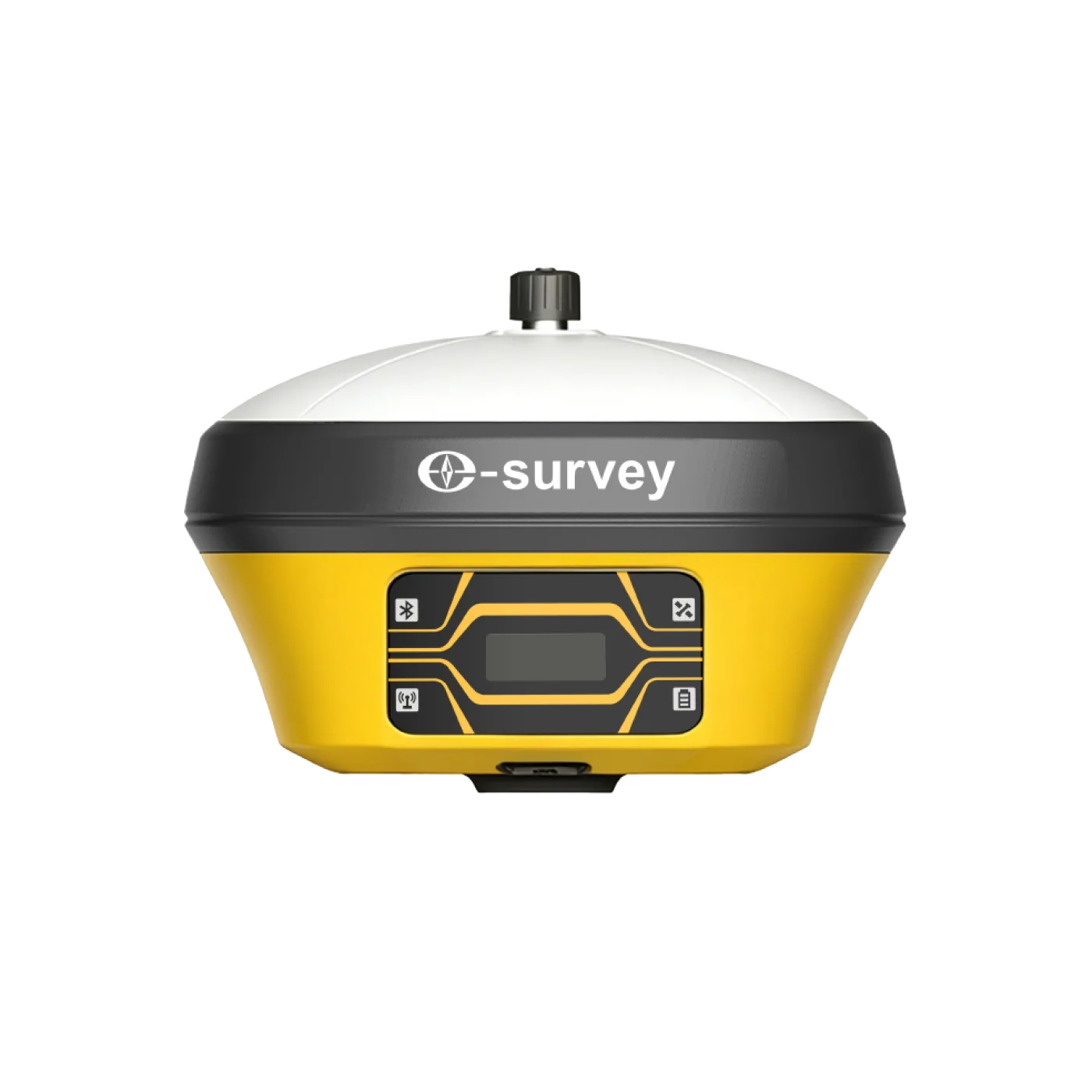

eSurvey eBase 30
eSurvey eBase 30 is a GNSS / RTK receiver released in 2025. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 1,408, satellite systems supported 6, battery life 13 h.
6.8Score
Positioning5.7
Maps & navigation4.9
Connectivity & safety5.9
Battery7.1
Durability4.7
price range—
- Year
- 2025
- Brand
- eSurvey
- Popularity
- #93 of 301
- Model numbers
8 mmRTK accuracy (horizontal)
1,408Tracking channels
6Satellite systems supported
NoMulti-band GNSS (L1 + L5/L2)
13 hBattery life
IPx8Water protection (IPx)
1,300 gWeight
8 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 1,408Top 33%
Satellite systems supported · 6Top 25%
Battery life · 13 hBottom 41%
Water protection (IPx) · IPx8Top 15%
Weight · 1,300 gBottom 2%
Internal storage · 8 GBBottom 26%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is eBase 30 a good choice?
Water protection (IPx): IPx8better than 85% of GNSS / RTK receivers
Satellite systems supported: 6better than 70% of GNSS / RTK receivers
Weak points
Weight: 1,300 gworse than 89% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 6
- Multi-band GNSS (L1 + L5/L2)
- No
- Frequency bands
- L-band
- Tracking channels
- 1,408
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- RTK accuracy (vertical)
- 15 mm
- Static accuracy (horizontal)
- 2.5 mm
- Built-in UHF radio
- Yes
- L-band / PPP corrections
- Yes
- Raw data logging (RINEX)
- Yes
Maps & navigation
- Internal storage
- 8 GB
Connectivity & safety
- Wi-Fi
- Yes
- Bluetooth
- Yes
- Cellular modem (4G / LTE)
- Yes
- USB-C
- Yes
Battery & power
- Battery life
- 13 h
- Battery capacity
- 24,000 mAh
- Power source
- Built-in rechargeable
- External power input
- Type-C PD (12V/1.5A), 5-pin (15V/2A)
Build & durability
- Protection rating
- IP68
- Water protection (IPx)
- IPx8
- Drop resistance
- 1.2 m
- Operating temperature (min)
- -30 °C
- Operating temperature (max)
- 65 °C
- Weight
- 1,300 g
- Width
- 151 mm
- Height
- 110 mm
- Depth
- 151 mm
- Housing material
- Magnalium
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
