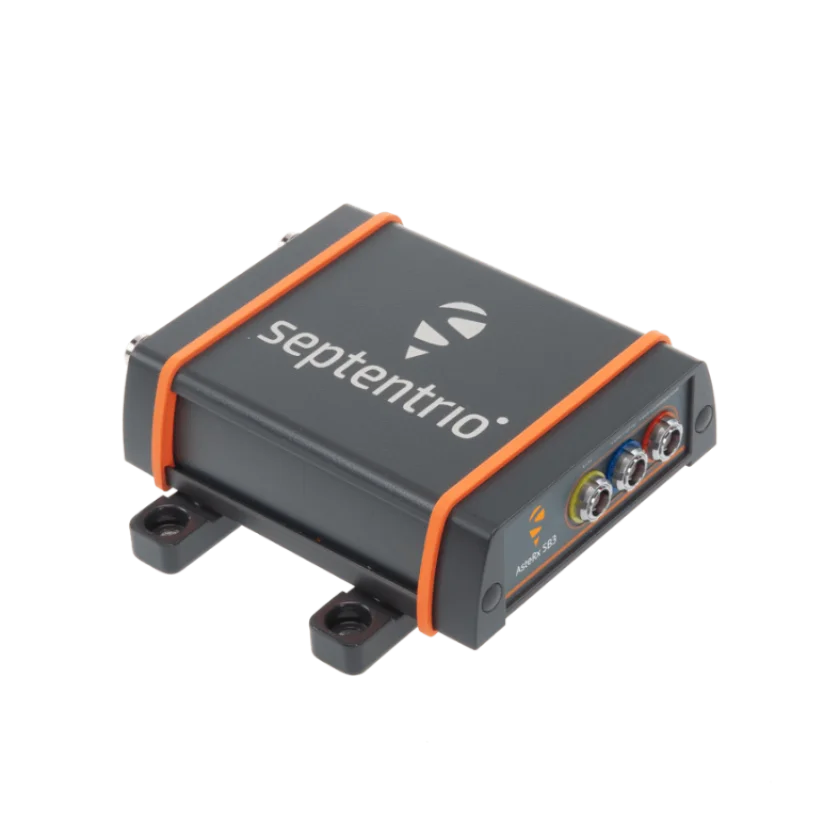

Bynav M20 vs Septentrio AsteRx SB3 Pro+
What M20 does better (3) and where AsteRx SB3 Pro+ wins (0) — every spec side by side.
4.0Positioning6.6
Why is M20 better than AsteRx SB3 Pro+?
- Tracking channels1,507 vs 5442.8×
- Operating temperature (min)-40 °C vs -30 °C+-25%
- Operating temperature (max)85 °C vs 65 °C+31%
Why is AsteRx SB3 Pro+ better than M20?
AsteRx SB3 Pro+ has no measurable advantages in this pair.
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 6 | 6 |
| Tracking channels | 1,507 | 544 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | — |
| RTK accuracy (horizontal) | 10 mm | — |
| Tilt compensation (IMU) | Yes | — |
| Dual-antenna heading | Yes | Yes |
| Correction sources | L-band / PPP, SBAS | L-band / PPP, SBAS |
| L-band / PPP corrections | Yes | Yes |
| Maps & navigation | ||
| Internal storage | — | 16 GB |
| Battery & power | ||
| External power input | 5V; 3.3V | 5-36 VDC |
| Build & durability | ||
| Protection rating | — | IP68 |
| Water protection (IPx) | — | IPx8 |
| MIL-STD-810 | — | Yes |
| Operating temperature (min) | -40 °C | -30 °C |
| Operating temperature (max) | 85 °C | 65 °C |
| Weight | — | 497 g |
| Width | 22 mm | 102 mm |
| Height | 17 mm | 118 mm |
| Housing material | Aluminium | Ruggedized enclosure IP68 |
