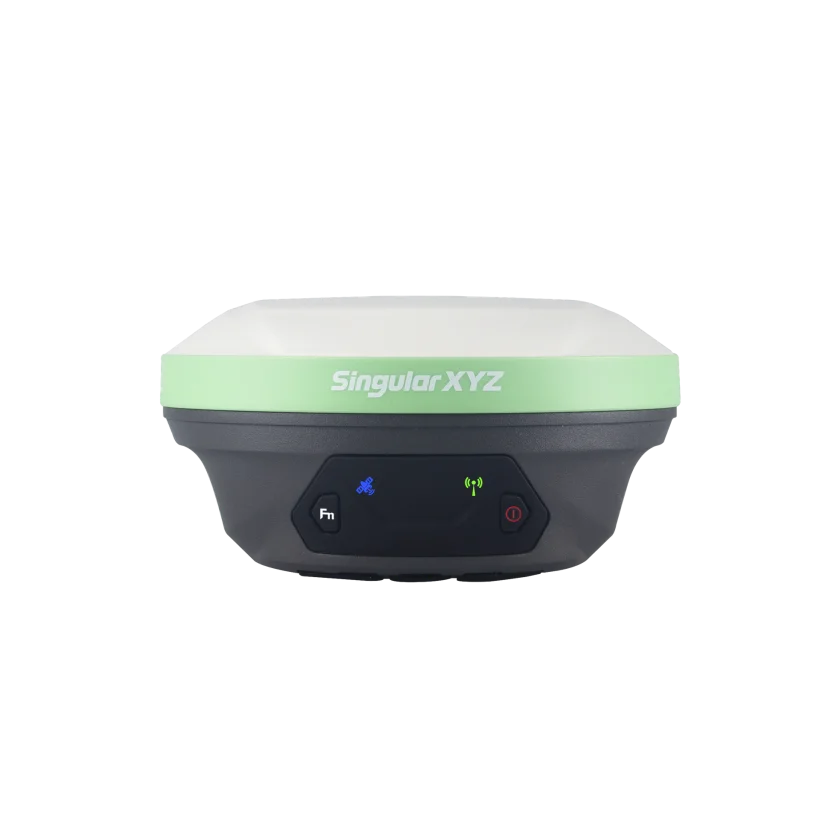

Bynav M20 vs SingularXYZ X1 Lite
What M20 does better (2) and where X1 Lite wins (1) — every spec side by side.
Dimensions
Size comparison
M20X1 Lite
| M20 | X1 Lite | Difference | |
|---|---|---|---|
| Height | 17 mm | 67 mm | −50 mm |
| Width | 22 mm | 134 mm | −112 mm |
Drawn to the same scale from the official dimensions (front and side).
Why is M20 better than X1 Lite?
- Operating temperature (max)85 °C vs 65 °C+31%
- Tracking channels1,507 vs 1,408+7%
Why is X1 Lite better than M20?
- RTK accuracy (horizontal)10 mm vs 8 mm+25%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 6 | 6 |
| Multi-band GNSS (L1 + L5/L2) | — | Yes |
| Frequency bands | — | L1, L2, L5, E1, E5a, E5b, B1, B2, B3 |
| Tracking channels | 1,507 | 1,408 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 10 mm | 8 mm |
| RTK accuracy (vertical) | — | 15 mm |
| Static accuracy (horizontal) | — | 2.5 mm |
| Tilt compensation (IMU) | Yes | Yes |
| Max. tilt angle | — | 60° |
| Dual-antenna heading | Yes | — |
| Correction sources | L-band / PPP, SBAS | NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS |
| Built-in UHF radio | — | Yes |
| L-band / PPP corrections | Yes | Yes |
| Raw data logging (RINEX) | — | Yes |
| Maps & navigation | ||
| Internal storage | — | 8 GB |
| Connectivity & safety | ||
| Wi-Fi | — | Yes |
| Bluetooth | — | Yes |
| Cellular modem (4G / LTE) | — | Yes |
| NFC | — | Yes |
| USB-C | — | Yes |
| Battery & power | ||
| Battery life | — | 20 h |
| External power input | 5V; 3.3V | 28 |
| Build & durability | ||
| Protection rating | — | IP68 |
| Water protection (IPx) | — | IPx8 |
| Operating temperature (min) | -40 °C | -40 °C |
| Operating temperature (max) | 85 °C | 65 °C |
| Weight | — | 870 g |
| Width | 22 mm | 134 mm |
| Height | 17 mm | 67 mm |
| Depth | — | 134 mm |
| Housing material | Aluminium | Magnesium-aluminum alloy |
