- i83 vs AsteRx SBi3 Pro+

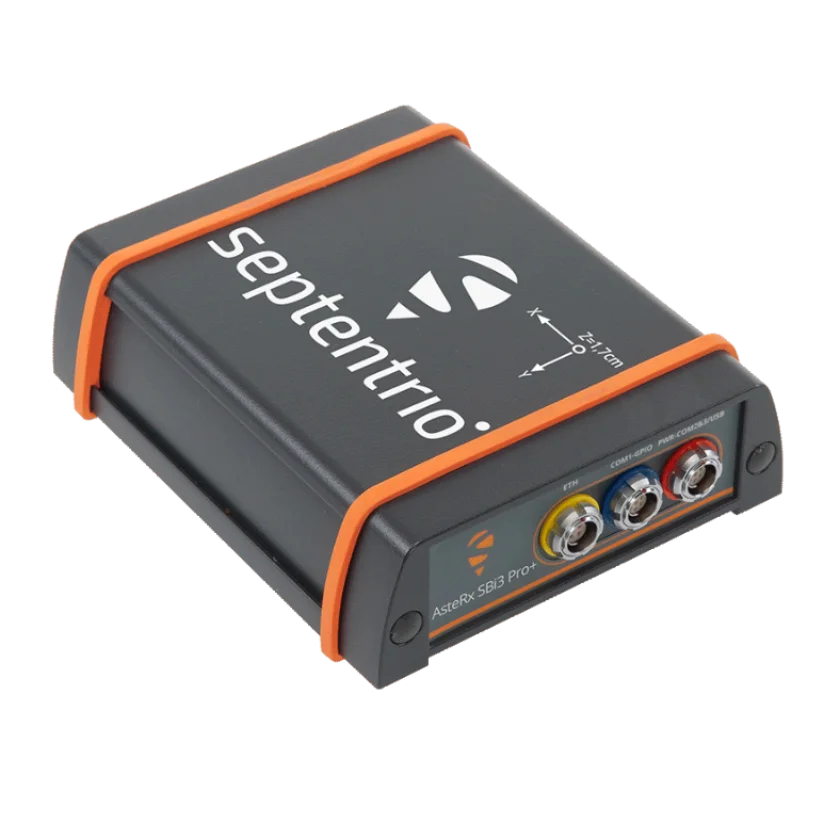

CHCNAV i83 vs Septentrio AsteRx SBi3 Pro+
What i83 does better (2) and where AsteRx SBi3 Pro+ wins (3) — every spec side by side.
vs
4.9Positioning6.4
4.0Durability8.5
Dimensions
Size comparison
i83AsteRx SBi3 Pro+
| i83 | AsteRx SBi3 Pro+ | Difference | |
|---|---|---|---|
| Height | 78 mm | 36 mm | +42 mm |
| Width | 152 mm | 102 mm | +50 mm |
| Depth | 152 mm | 118 mm | +34 mm |
| Weight | 1,150 g | 490 g | +660 g |
Drawn to the same scale from the official dimensions (front and side).
Why is i83 better than AsteRx SBi3 Pro+?
- Tracking channels1,408 vs 5442.6×
- Operating temperature (min)-40 °C vs -30 °C+-25%
Why is AsteRx SBi3 Pro+ better than i83?
- Weight1,150 g vs 490 g2.3×
- Water protection (IPx)IPx7 vs IPx8+14%
- Satellite systems supported5 vs 6+20%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 5 | 6 |
| Multi-band GNSS (L1 + L5/L2) | Yes | — |
| Frequency bands | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3 | — |
| Tracking channels | 1,408 | 544 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | — |
| Tilt compensation (IMU) | Yes | Yes |
| Dual-antenna heading | — | Yes |
| Correction sources | NTRIP (internet), SBAS | L-band / PPP, SBAS |
| L-band / PPP corrections | — | Yes |
| Raw data logging (RINEX) | Yes | — |
| Maps & navigation | ||
| Internal storage | — | 16 GB |
| Connectivity & safety | ||
| Wi-Fi | Yes | — |
| Battery & power | ||
| Battery life | 18 h | — |
| Battery capacity | 9,600 mAh | — |
| Power source | Removable rechargeable pack | — |
| Build & durability | ||
| Protection rating | IP67 | IP68 |
| Water protection (IPx) | IPx7 | IPx8 |
| MIL-STD-810 | — | Yes |
| Drop resistance | 2 m | — |
| Operating temperature (min) | -40 °C | -30 °C |
| Operating temperature (max) | 65 °C | 65 °C |
| Weight | 1,150 g | 490 g |
| Width | 152 mm | 102 mm |
| Height | 78 mm | 36 mm |
| Depth | 152 mm | 118 mm |
| Housing material | — | Ruggedized enclosure |
