CHCNAVGNSS / RTK receiver

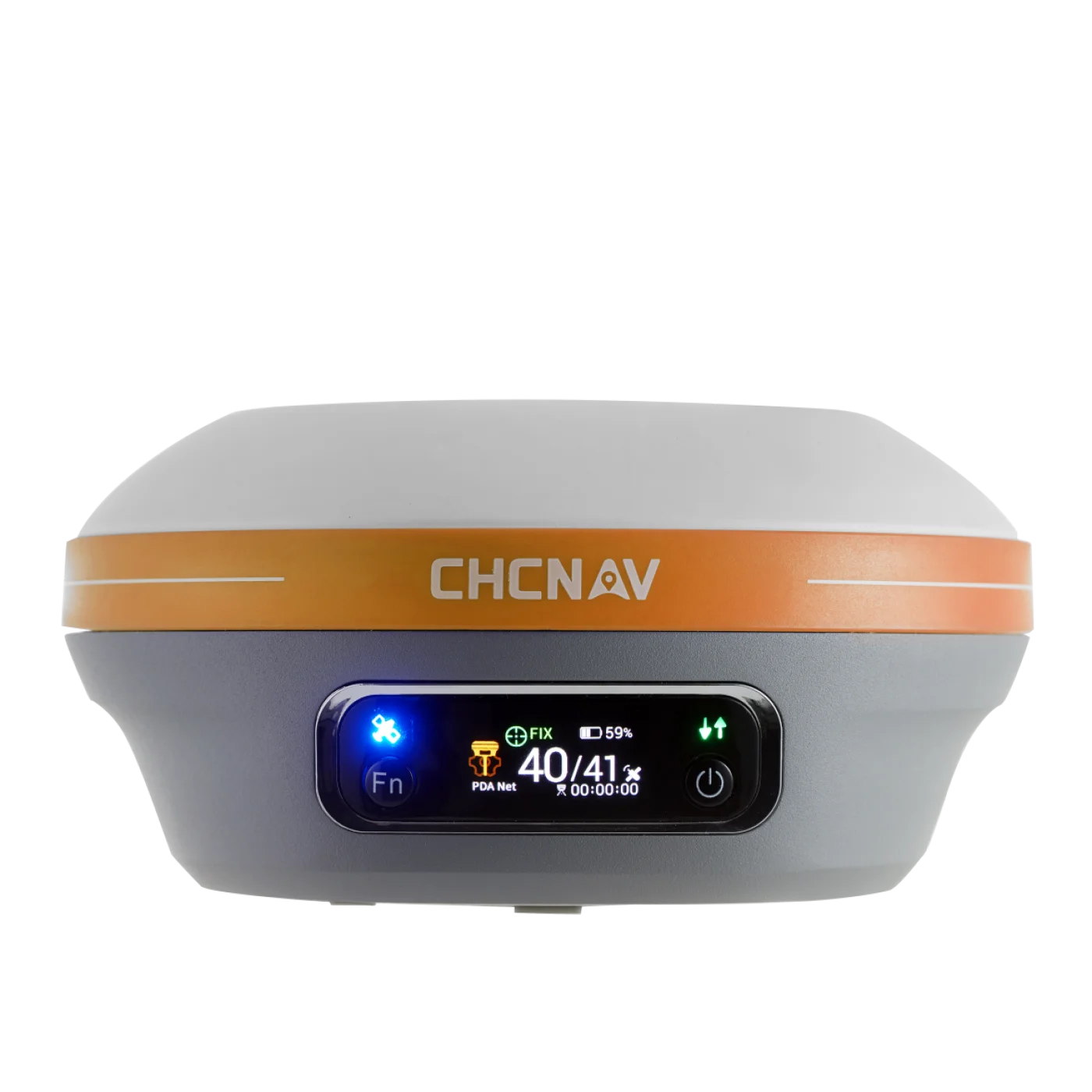

CHCNAV i83
CHCNAV i83 is a GNSS / RTK receiver released in 2022. Key specs: tracking channels 1,408, tilt compensation (IMU), satellite systems supported 5, multi-band GNSS (L1 + L5/L2).
8.4Score
Positioning4.9
Battery8.6
Durability4.0
price range—
- Year
- 2022
- Brand
- CHCNAV
- Popularity
- #179 of 301
- Model numbers
- i83 IMU-RTK GNSS
1,408Tracking channels
YesTilt compensation (IMU)
5Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
18 hBattery life
IPx7Water protection (IPx)
1,150 gWeight
Spec guide
How it ranks among GNSS / RTK receivers
Tracking channels · 1,408Top 33%
Satellite systems supported · 5Top 34%
Battery life · 18 hTop 33%
Water protection (IPx) · IPx7Bottom 41%
Weight · 1,150 gBottom 9%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is i83 a good choice?
Battery life: 18 hbetter than 80% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
Satellite systems supported: 5worse than 88% of GNSS / RTK receivers
Weight: 1,150 gworse than 76% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 5
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3
- Tracking channels
- 1,408
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- Tilt compensation (IMU)
- Yes
- Raw data logging (RINEX)
- Yes
Connectivity & safety
- Wi-Fi
- Yes
Battery & power
- Battery life
- 18 h
- Battery capacity
- 9,600 mAh
- Power source
- Removable rechargeable pack
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Drop resistance
- 2 m
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 65 °C
- Weight
- 1,150 g
- Width
- 152 mm
- Height
- 78 mm
- Depth
- 152 mm
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
