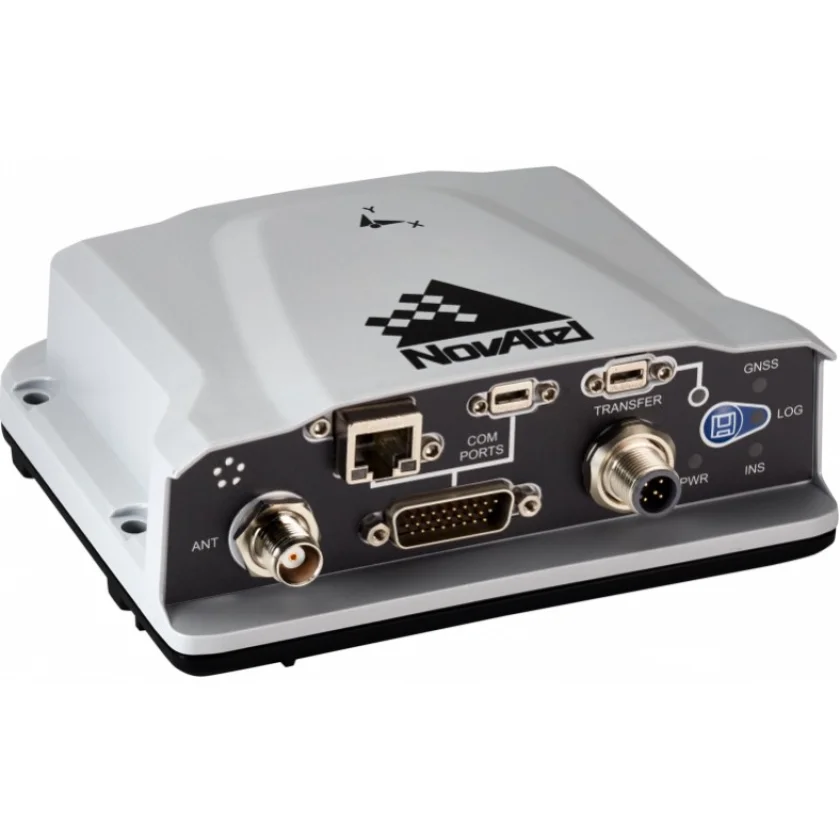

ComNav A100 vs NovAtel PwrPak7
What A100 does better (2) and where PwrPak7 wins (2) — every spec side by side.
Dimensions
Size comparison
A100PwrPak7
| A100 | PwrPak7 | Difference | |
|---|---|---|---|
| Height | 72 mm | 53 mm | +19 mm |
| Width | 132 mm | 147 mm | −15 mm |
| Depth | 132 mm | 145 mm | −13 mm |
| Weight | 700 g | 500 g | +200 g |
Drawn to the same scale from the official dimensions (front and side).
Why is A100 better than PwrPak7?
- RTK accuracy (horizontal)8 mm vs 10 mm+25%
- Water protection (IPx)IPx8 vs IPx7+14%
Why is PwrPak7 better than A100?
- Satellite systems supported4 vs 6+50%
- Weight700 g vs 500 g+40%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 4 | 6 |
| Multi-band GNSS (L1 + L5/L2) | Yes | Yes |
| Frequency bands | L1, L2, E1, E5b, B1, B2 | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3, L-band |
| Tracking channels | 352 | — |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 8 mm | 10 mm |
| Static accuracy (horizontal) | 2.5 mm | — |
| Tilt compensation (IMU) | — | Yes |
| Correction sources | NTRIP (internet), Cellular modem, SBAS | NTRIP (internet), UHF radio, L-band / PPP, SBAS |
| Built-in UHF radio | — | Yes |
| L-band / PPP corrections | — | Yes |
| Maps & navigation | ||
| Internal storage | — | 16 GB |
| Connectivity & safety | ||
| Bluetooth | Yes | — |
| Cellular modem (4G / LTE) | Yes | — |
| Battery & power | ||
| External power input | 6 - 36 VDC, with overvoltage protection | — |
| Build & durability | ||
| Protection rating | IP68 | IPX7 |
| Water protection (IPx) | IPx8 | IPx7 |
| Drop resistance | 2 m | — |
| Operating temperature (min) | -40 °C | -40 °C |
| Operating temperature (max) | 75 °C | 75 °C |
| Weight | 700 g | 500 g |
| Width | 132 mm | 147 mm |
| Height | 72 mm | 53 mm |
| Depth | 132 mm | 145 mm |
| Housing material | Aluminum-magnesium alloy | — |
