ComNavGNSS / RTK receiver

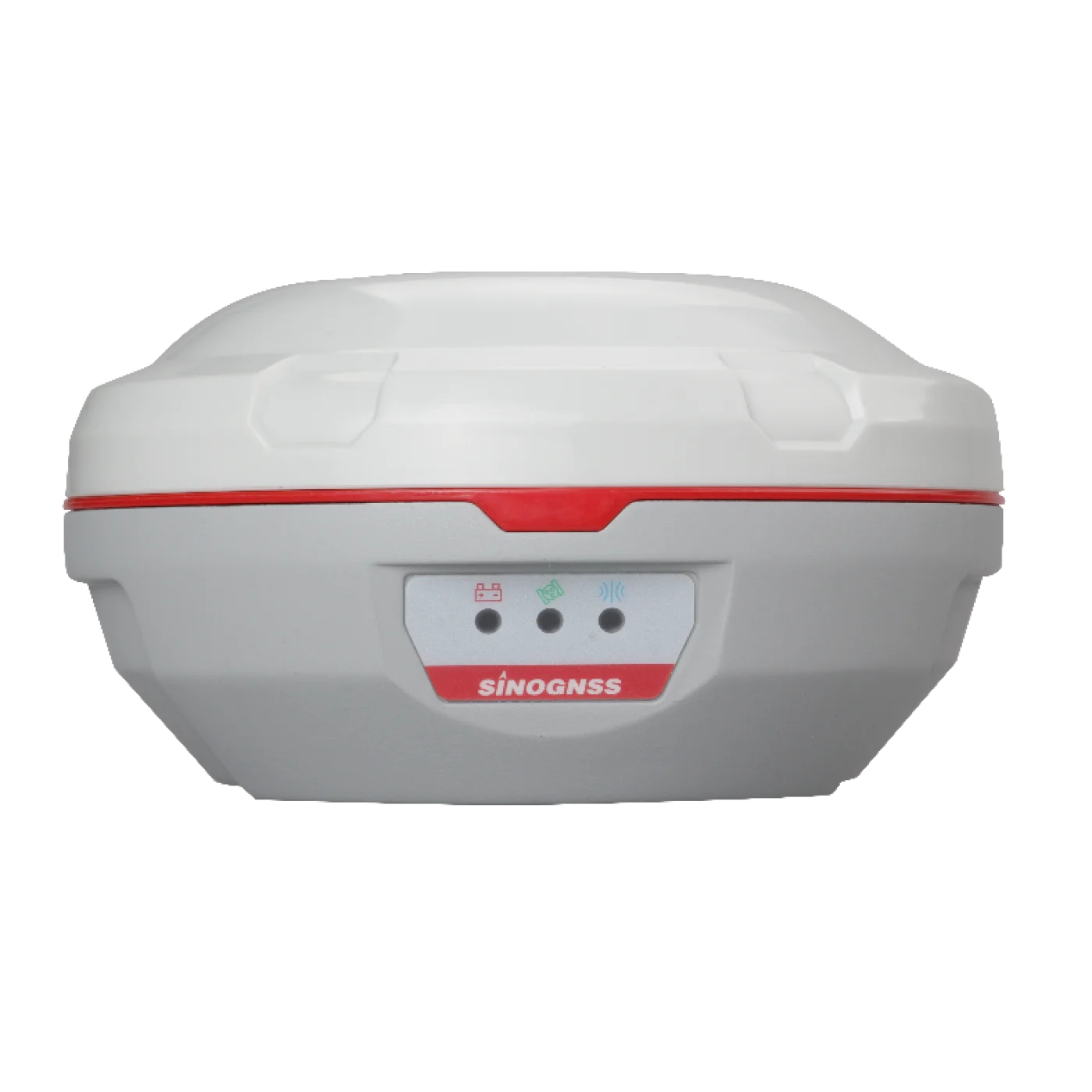

ComNav A100
ComNav A100 is a GNSS / RTK receiver released in 2017. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 352, satellite systems supported 4, multi-band GNSS (L1 + L5/L2).
8.0Score
Positioning3.0
Connectivity & safety5.9
Durability9.4
price range—
- Year
- 2017
- Brand
- ComNav
- Popularity
- #296 of 301
- Model numbers
- A100 GNSS Receiver
8 mmRTK accuracy (horizontal)
352Tracking channels
4Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
IPx8Water protection (IPx)
700 gWeight
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 352Bottom 9%
Satellite systems supported · 4Bottom 38%
Water protection (IPx) · IPx8Top 11%
Weight · 700 gBottom 39%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is A100 a good choice?
Water protection (IPx): IPx8better than 85% of GNSS / RTK receivers
Weak points
Satellite systems supported: 4worse than 97% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 4
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, E1, E5b, B1, B2
- Tracking channels
- 352
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- Static accuracy (horizontal)
- 2.5 mm
Connectivity & safety
- Bluetooth
- Yes
- Cellular modem (4G / LTE)
- Yes
Battery & power
- External power input
- 6 - 36 VDC, with overvoltage protection
Build & durability
- Protection rating
- IP68
- Water protection (IPx)
- IPx8
- Drop resistance
- 2 m
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 75 °C
- Weight
- 700 g
- Width
- 132 mm
- Height
- 72 mm
- Depth
- 132 mm
- Housing material
- Aluminum-magnesium alloy
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
