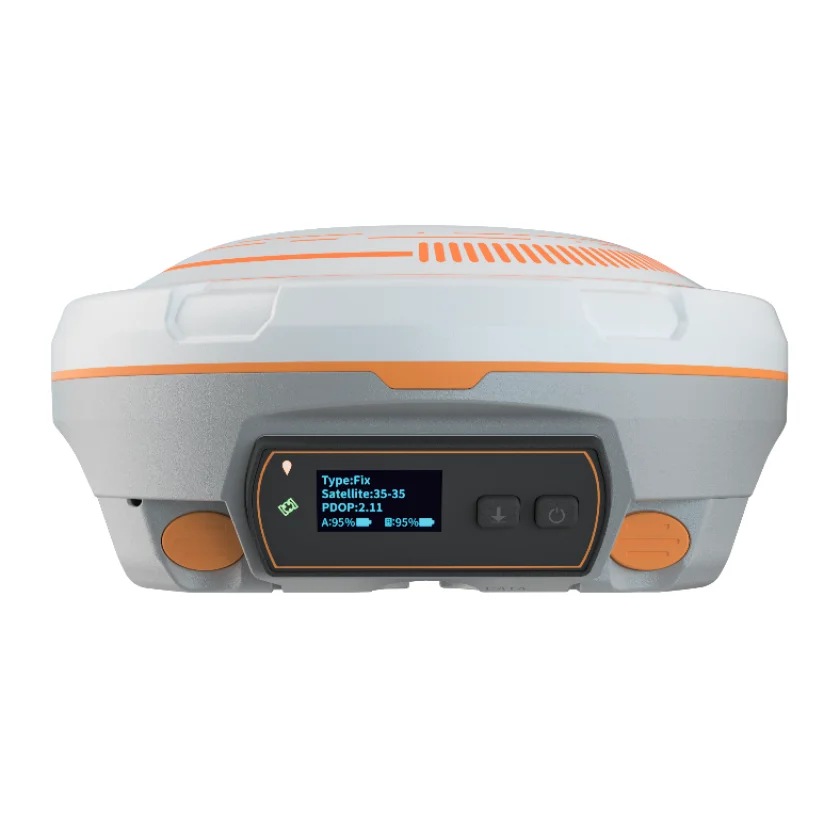

ComNav N5 IMU vs eSurvey E800
What N5 IMU does better (4) and where E800 wins (2) — every spec side by side.
Dimensions
Size comparison
N5 IMUE800
| N5 IMU | E800 | Difference | |
|---|---|---|---|
| Height | 73 mm | 76 mm | −3 mm |
| Width | 155 mm | 154 mm | +1 mm |
| Depth | 155 mm | 154 mm | +1 mm |
| Weight | 1,200 g | 1,500 g | −300 g |
Drawn to the same scale from the official dimensions (front and side).
Why is N5 IMU better than E800?
- Battery life25 h vs 15 h+67%
- Multi-band GNSS (L1 + L5/L2)Yes · E800: No
- Weight1,200 g vs 1,500 g+25%
- Tracking channels1,198 vs 800+50%
Why is E800 better than N5 IMU?
- Internal storage8 GB vs 32 GB4×
- Static accuracy (horizontal)3 mm vs 2 mm+50%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 6 | 6 |
| Multi-band GNSS (L1 + L5/L2) | Yes | No |
| Frequency bands | L1, L2, L5, E1, E5a, E5b, B1, B2, B3 | L-band |
| Tracking channels | 1,198 | 800 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 8 mm | 8 mm |
| Static accuracy (horizontal) | 3 mm | 2 mm |
| Tilt compensation (IMU) | Yes | — |
| Correction sources | NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS | NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS |
| Built-in UHF radio | Yes | Yes |
| L-band / PPP corrections | Yes | Yes |
| Maps & navigation | ||
| Internal storage | 8 GB | 32 GB |
| Connectivity & safety | ||
| Bluetooth | Yes | Yes |
| Cellular modem (4G / LTE) | Yes | Yes |
| USB-C | — | Yes |
| Battery & power | ||
| Battery life | 25 h | 15 h |
| Battery capacity | — | 13,600 mAh |
| External power input | 7-28 VDC | 5-pin lemo, 9~28 VDC |
| Build & durability | ||
| Protection rating | IP67 | IP67 |
| Water protection (IPx) | IPx7 | IPx7 |
| Drop resistance | 2 m | 2 m |
| Operating temperature (min) | -40 °C | -40 °C |
| Operating temperature (max) | 65 °C | 65 °C |
| Weight | 1,200 g | 1,500 g |
| Width | 155 mm | 154 mm |
| Height | 73 mm | 76 mm |
| Depth | 155 mm | 154 mm |
| Housing material | Magnesium-aluminium | Magnesium Alloy |
