ComNavGNSS / RTK receiver

ComNav N5 IMU

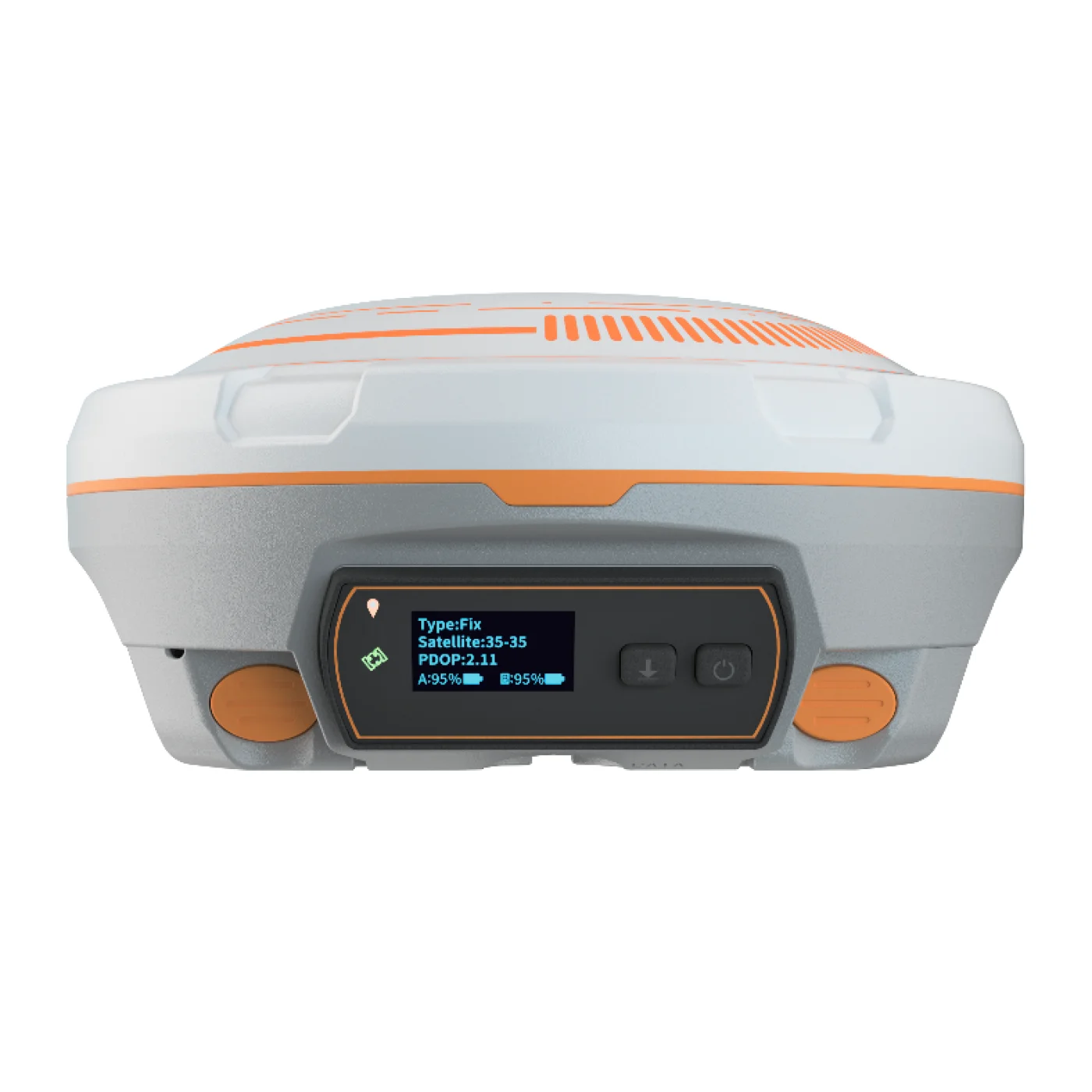

Name: ComNav N5 IMU
Brand: ComNav

ComNav N5 IMU is a GNSS / RTK receiver released in 2020. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 1,198, tilt compensation (IMU), satellite systems supported 6.

8.1Score

Positioning7.3

Maps & navigation4.9

Connectivity & safety5.9

Battery9.6

Durability3.6

price range—

Full specifications

Year: 2020
Type: GNSS / RTK receiver
Brand: ComNav
Popularity: #212 of 301
Model numbers: N5 IMU GNSS Receiver

8 mmRTK accuracy (horizontal)

1,198Tracking channels

YesTilt compensation (IMU)

6Satellite systems supported

YesMulti-band GNSS (L1 + L5/L2)

25 hBattery life

IPx7Water protection (IPx)

1,200 gWeight

8 GBInternal storage

Spec guide

How it ranks among GNSS / RTK receivers

Spec guide

RTK accuracy (horizontal) · 8 mmTop 47% Tracking channels · 1,198Bottom 44% Satellite systems supported · 6Top 19% Battery life · 25 hTop 13% Water protection (IPx) · IPx7Bottom 43% Weight · 1,200 gBottom 10% Internal storage · 8 GBBottom 23%

Compared with every model of this kind in the catalog.

compared with other GNSS / RTK receivers

Why is N5 IMU a good choice?

Battery life: 25 hbetter than 97% of GNSS / RTK receivers

Satellite systems supported: 6better than 70% of GNSS / RTK receivers

Weak points

Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers

Weight: 1,200 gworse than 80% of GNSS / RTK receivers

In rankings

#29Longest battery life #6Best battery life #4GNSS receivers with the longest battery life

Specifications

Full specifications

Satellite positioning

Satellite systems: GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS)
Satellite systems supported: 6
Multi-band GNSS (L1 + L5/L2): Yes
Frequency bands: L1, L2, L5, E1, E5a, E5b, B1, B2, B3
Tracking channels: 1,198
SBAS (WAAS / EGNOS): Yes
RTK positioning: Yes
RTK accuracy (horizontal): 8 mm
Static accuracy (horizontal): 3 mm
Tilt compensation (IMU): Yes
Correction sources: NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS
Built-in UHF radio: Yes
L-band / PPP corrections: Yes
