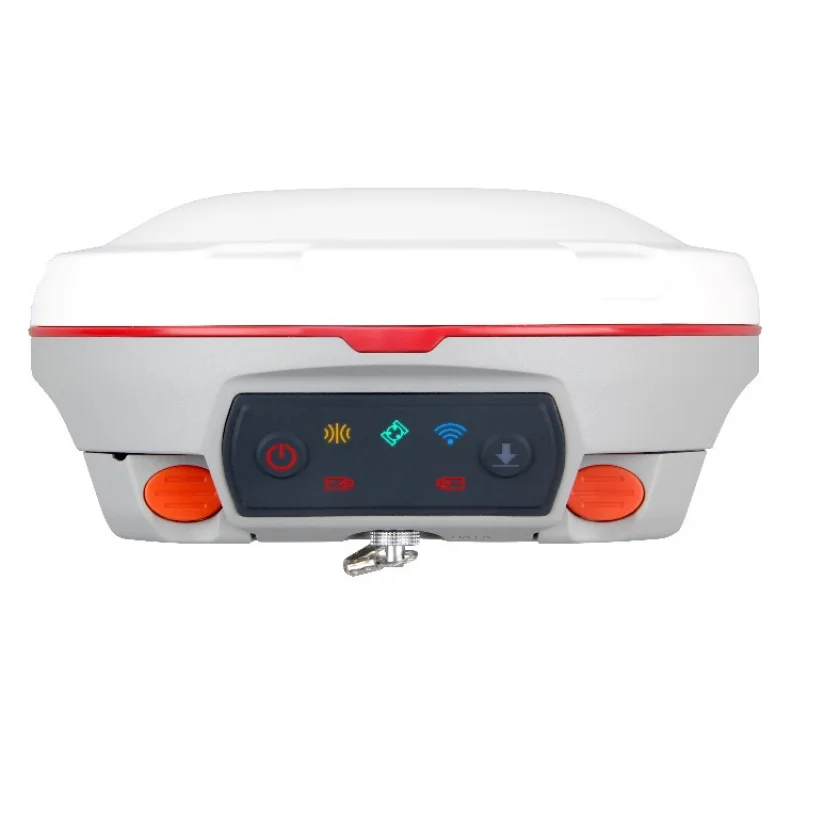

ComNav T30 vs eSurvey E100
What T30 does better (2) and where E100 wins (4) — every spec side by side.
Dimensions
Size comparison
T30E100
| T30 | E100 | Difference | |
|---|---|---|---|
| Height | 73 mm | 60 mm | +13 mm |
| Width | 158 mm | 148 mm | +10 mm |
| Depth | 158 mm | 148 mm | +10 mm |
| Weight | 1,200 g | 900 g | +300 g |
Drawn to the same scale from the official dimensions (front and side).
Why is T30 better than E100?
- Multi-band GNSS (L1 + L5/L2)Yes · E100: No
- Built-in UHF radioYes · E100: No
Why is E100 better than T30?
- Battery life12 h vs 15 h+25%
- Weight1,200 g vs 900 g+33%
- Static accuracy (horizontal)3 mm vs 2 mm+50%
- Tracking channels574 vs 800+39%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 6 | 6 |
| Multi-band GNSS (L1 + L5/L2) | Yes | No |
| Frequency bands | L1, L2, L5, E1, E5a, E5b, B1, B2, B3 | L-band |
| Tracking channels | 574 | 800 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 8 mm | 8 mm |
| Static accuracy (horizontal) | 3 mm | 2 mm |
| Tilt compensation (IMU) | Yes | — |
| Correction sources | NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS | NTRIP (internet), Cellular modem, L-band / PPP, SBAS |
| Built-in UHF radio | Yes | No |
| L-band / PPP corrections | Yes | Yes |
| Raw data logging (RINEX) | — | Yes |
| Maps & navigation | ||
| Internal storage | 8 GB | 8 GB |
| Connectivity & safety | ||
| Wi-Fi | Yes | — |
| Bluetooth | Yes | Yes |
| Cellular modem (4G / LTE) | Yes | Yes |
| USB-C | — | Yes |
| Battery & power | ||
| Battery life | 12 h | 15 h |
| Battery capacity | — | 4,800 mAh |
| Hot-swappable batteries | Yes | — |
| External power input | 5-27 VDC | 5-pin lemo, 9~28 VDC |
| Build & durability | ||
| Protection rating | IP67 | IP67 |
| Water protection (IPx) | IPx7 | IPx7 |
| Drop resistance | 2 m | 2 m |
| Operating temperature (min) | -40 °C | -40 °C |
| Operating temperature (max) | 65 °C | 65 °C |
| Weight | 1,200 g | 900 g |
| Width | 158 mm | 148 mm |
| Height | 73 mm | 60 mm |
| Depth | 158 mm | 148 mm |
| Housing material | Magnesium-aluminium | Magnesium Alloy |
