eSurveyGNSS / RTK receiver

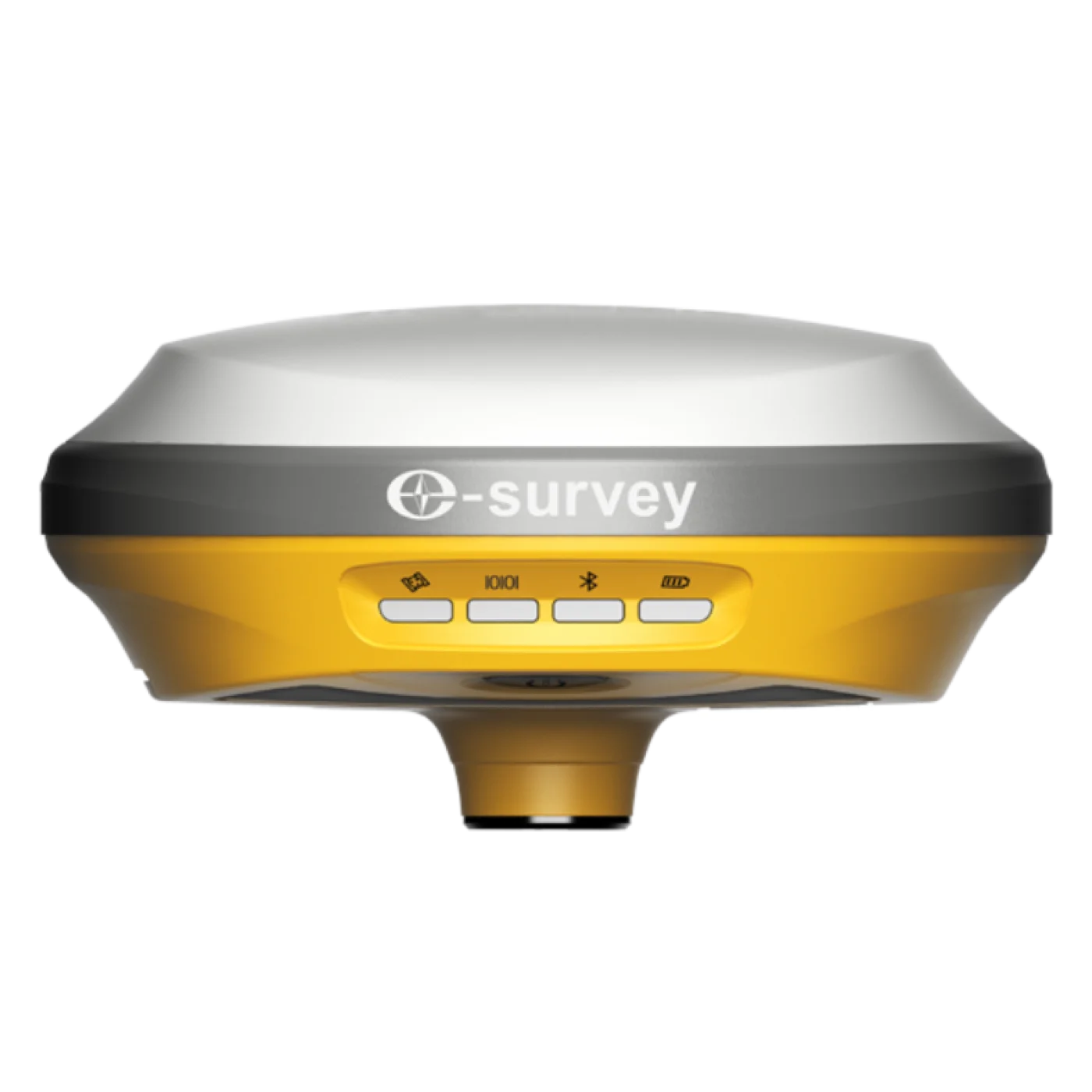

eSurvey E100
eSurvey E100 is a GNSS / RTK receiver released in 2019. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 800, satellite systems supported 6, battery life 15 h.
5.8Score
Positioning4.3
Maps & navigation4.9
Connectivity & safety5.9
Battery6.0
Durability5.4
price range—
- Year
- 2019
- Brand
- eSurvey
- Popularity
- #219 of 301
- Model numbers
- eSurvey E100 GNSS Receiver
8 mmRTK accuracy (horizontal)
800Tracking channels
6Satellite systems supported
NoMulti-band GNSS (L1 + L5/L2)
15 hBattery life
IPx7Water protection (IPx)
900 gWeight
8 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 800Bottom 32%
Satellite systems supported · 6Top 19%
Battery life · 15 hTop 38%
Water protection (IPx) · IPx7Bottom 43%
Weight · 900 gBottom 26%
Internal storage · 8 GBBottom 23%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is E100 a good choice?
Satellite systems supported: 6better than 70% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 6
- Multi-band GNSS (L1 + L5/L2)
- No
- Frequency bands
- L-band
- Tracking channels
- 800
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- Static accuracy (horizontal)
- 2 mm
- Built-in UHF radio
- No
- L-band / PPP corrections
- Yes
- Raw data logging (RINEX)
- Yes
Maps & navigation
- Internal storage
- 8 GB
Connectivity & safety
- Bluetooth
- Yes
- Cellular modem (4G / LTE)
- Yes
- USB-C
- Yes
Battery & power
- Battery life
- 15 h
- Battery capacity
- 4,800 mAh
- External power input
- 5-pin lemo, 9~28 VDC
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Drop resistance
- 2 m
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 65 °C
- Weight
- 900 g
- Width
- 148 mm
- Height
- 60 mm
- Depth
- 148 mm
- Housing material
- Magnesium Alloy
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
