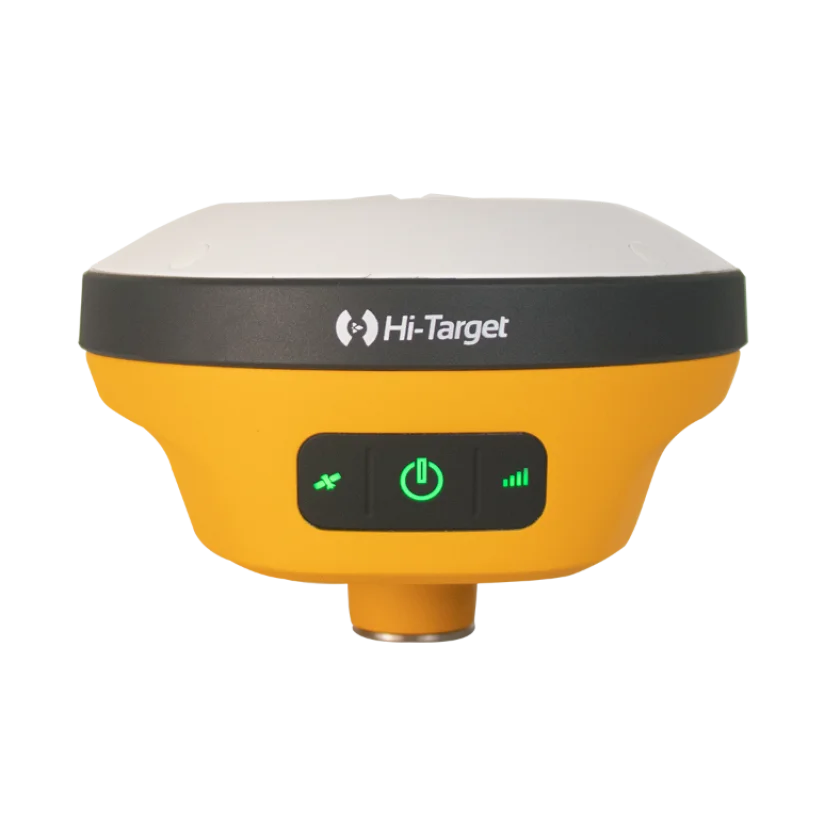

Hi-Target V200 vs Trimble Catalyst DA2
What V200 does better (3) and where Catalyst DA2 wins (1) — every spec side by side.
vs
7.7Positioning9.1
5.1Durability3.0
Dimensions
Size comparison
V200Catalyst DA2
| V200 | Catalyst DA2 | Difference | |
|---|---|---|---|
| Height | 67 mm | 60 mm | +7 mm |
| Width | 132 mm | 130 mm | +2 mm |
| Weight | 800 g | 300 g | +500 g |
Drawn to the same scale from the official dimensions (front and side).
Why is V200 better than Catalyst DA2?
- Water protection (IPx)IPx7 vs IPx5+40%
- Operating temperature (min)-30 °C vs -20 °C+-33%
- Operating temperature (max)70 °C vs 60 °C+17%
Why is Catalyst DA2 better than V200?
- Weight800 g vs 300 g2.7×
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 6 | 6 |
| Multi-band GNSS (L1 + L5/L2) | Yes | Yes |
| Frequency bands | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3 | L1, L2, L5, E1, E5a, B1, B2 |
| Tracking channels | 800 | — |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | — |
| RTK accuracy (horizontal) | 8 mm | — |
| Static accuracy (horizontal) | 2.5 mm | — |
| Tilt compensation (IMU) | Yes | — |
| Correction sources | UHF radio, L-band / PPP, SBAS | L-band / PPP, SBAS |
| Built-in UHF radio | Yes | — |
| L-band / PPP corrections | Yes | Yes |
| Maps & navigation | ||
| Internal storage | 8 GB | — |
| Connectivity & safety | ||
| Bluetooth | Yes | Yes |
| Battery & power | ||
| Battery life | 12 h | — |
| Build & durability | ||
| Protection rating | IP67 | IP65 |
| Water protection (IPx) | IPx7 | IPx5 |
| MIL-STD-810 | — | Yes |
| Operating temperature (min) | -30 °C | -20 °C |
| Operating temperature (max) | 70 °C | 60 °C |
| Weight | 800 g | 300 g |
| Width | 132 mm | 130 mm |
| Height | 67 mm | 60 mm |
| Depth | — | 130 mm |
| Housing material | magnesium | Plastic |
