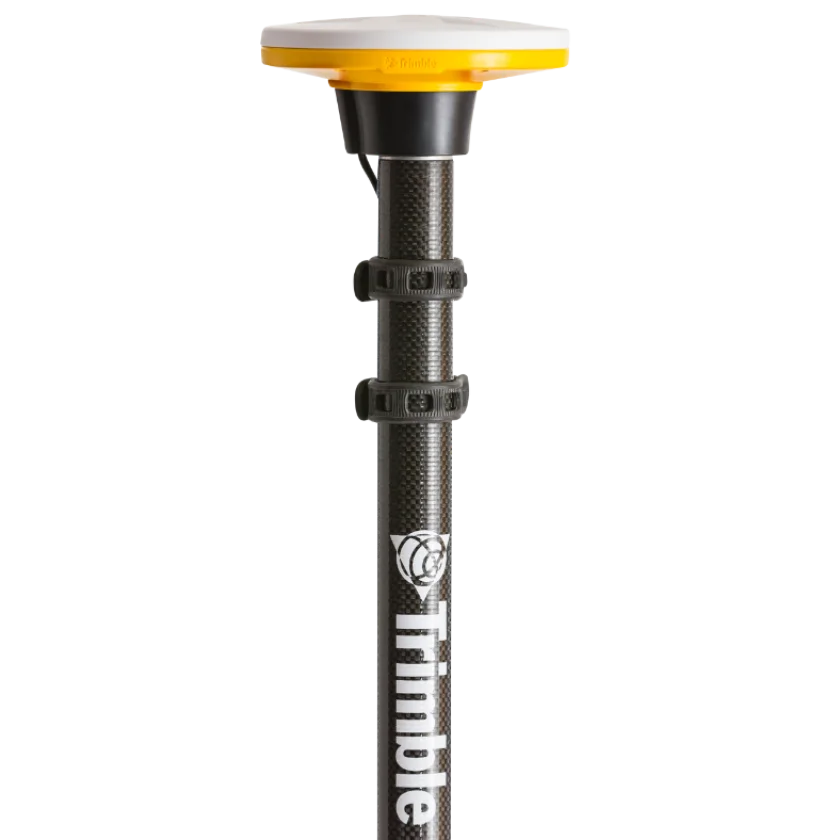

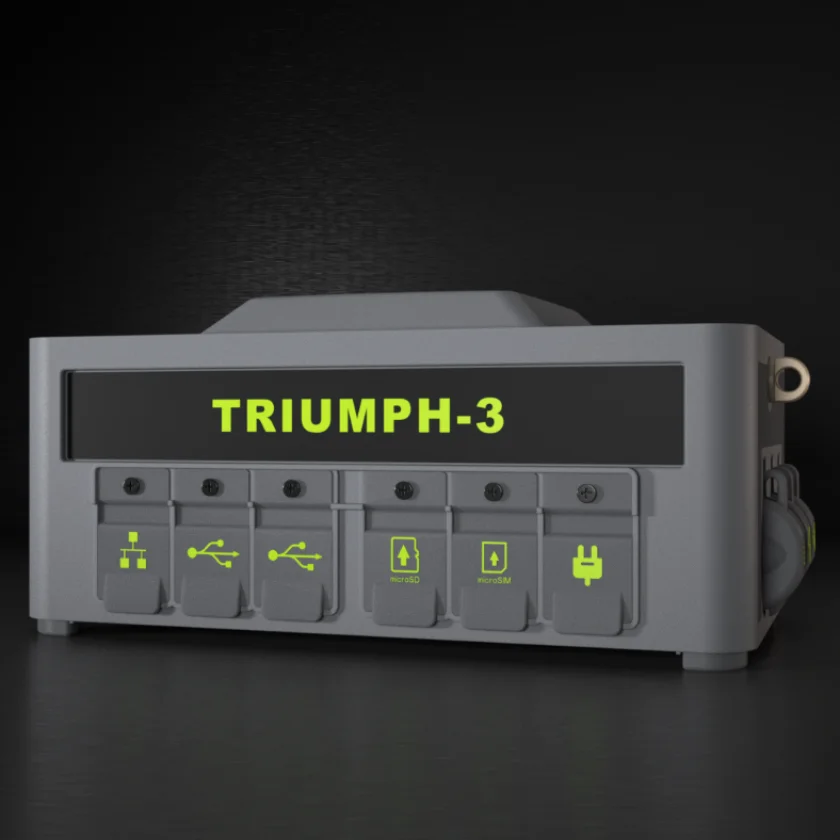

JAVAD TRIUMPH-3 vs Trimble Catalyst DA2
What TRIUMPH-3 does better (2) and where Catalyst DA2 wins (2) — every spec side by side.
vs
3.5Positioning9.1
3.0Durability3.0
Dimensions
Size comparison
TRIUMPH-3Catalyst DA2
| TRIUMPH-3 | Catalyst DA2 | Difference | |
|---|---|---|---|
| Height | 78 mm | 60 mm | +18 mm |
| Width | 182 mm | 130 mm | +52 mm |
| Depth | 96 mm | 130 mm | −34 mm |
| Weight | 1,250 g | 300 g | +950 g |
Drawn to the same scale from the official dimensions (front and side).
Why is TRIUMPH-3 better than Catalyst DA2?
- Water protection (IPx)IPx7 vs IPx5+40%
- Operating temperature (min)-40 °C vs -20 °C+-50%
Why is Catalyst DA2 better than TRIUMPH-3?
- Weight1,250 g vs 300 g4.2×
- Multi-band GNSS (L1 + L5/L2)No · TRIUMPH-3: Yes
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 6 | 6 |
| Multi-band GNSS (L1 + L5/L2) | No | Yes |
| Frequency bands | L-band | L1, L2, L5, E1, E5a, B1, B2 |
| Tracking channels | 874 | — |
| SBAS (WAAS / EGNOS) | — | Yes |
| Correction sources | UHF radio, L-band / PPP | L-band / PPP, SBAS |
| Built-in UHF radio | Yes | — |
| L-band / PPP corrections | Yes | Yes |
| Maps & navigation | ||
| Internal storage | 21 GB | — |
| Memory card slot | Yes | — |
| Connectivity & safety | ||
| Wi-Fi | Yes | — |
| Bluetooth | Yes | Yes |
| Battery & power | ||
| Battery life | 12 h | — |
| Build & durability | ||
| Protection rating | IP67 | IP65 |
| Water protection (IPx) | IPx7 | IPx5 |
| MIL-STD-810 | Yes | Yes |
| Operating temperature (min) | -40 °C | -20 °C |
| Operating temperature (max) | 60 °C | 60 °C |
| Weight | 1,250 g | 300 g |
| Width | 182 mm | 130 mm |
| Height | 78 mm | 60 mm |
| Depth | 96 mm | 130 mm |
| Housing material | Moulded magnesium alloy and plastic | Plastic |
