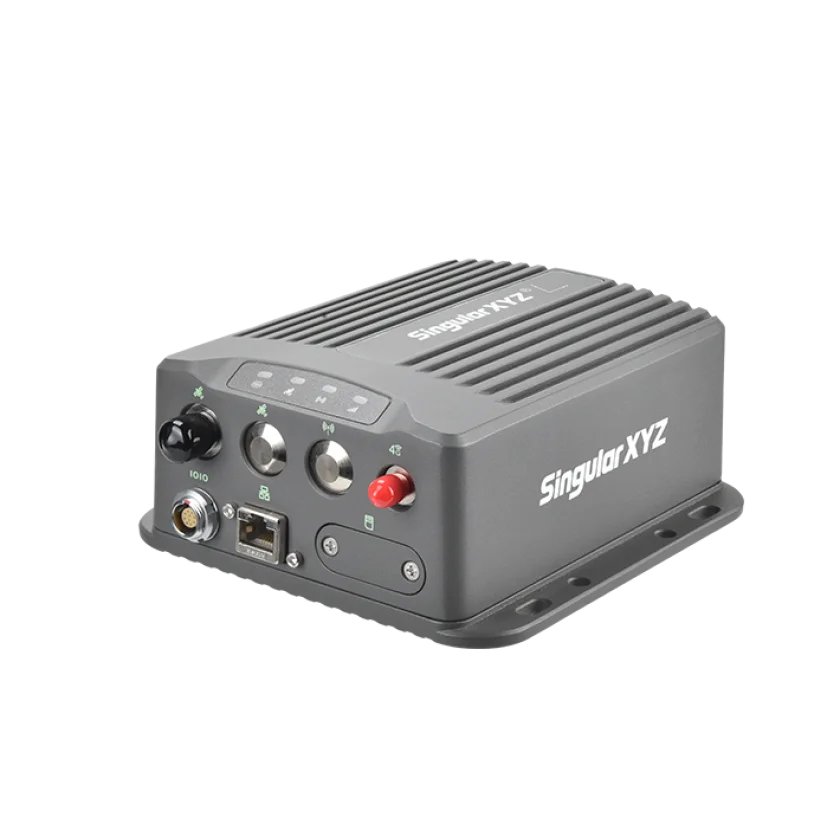

SingularXYZ SV100 INS vs Stonex S599
What SV100 INS does better (4) and where S599 wins (2) — every spec side by side.
Dimensions
Size comparison
SV100 INSS599
| SV100 INS | S599 | Difference | |
|---|---|---|---|
| Height | 65 mm | 46 mm | +19 mm |
| Width | 142 mm | 98 mm | +44 mm |
| Depth | 162 mm | 98 mm | +64 mm |
| Weight | 1,050 g | 385 g | +665 g |
Drawn to the same scale from the official dimensions (front and side).
Why is SV100 INS better than S599?
- Battery life13 h vs 12 h+8%
- Built-in UHF radioYes · S599: No
- Operating temperature (min)-40 °C vs -30 °C+-25%
- Operating temperature (max)75 °C vs 60 °C+25%
Why is S599 better than SV100 INS?
- Weight1,050 g vs 385 g2.7×
- Water protection (IPx)IPx7 vs IPx8+14%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 6 | 6 |
| Multi-band GNSS (L1 + L5/L2) | Yes | — |
| Frequency bands | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3 | — |
| Tracking channels | — | 1,408 |
| SBAS (WAAS / EGNOS) | — | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 8 mm | 8 mm |
| RTK accuracy (vertical) | 15 mm | — |
| Static accuracy (horizontal) | — | 2.5 mm |
| Tilt compensation (IMU) | Yes | Yes |
| Correction sources | NTRIP (internet), UHF radio, Cellular modem | L-band / PPP, SBAS |
| Built-in UHF radio | Yes | No |
| L-band / PPP corrections | — | Yes |
| Raw data logging (RINEX) | Yes | — |
| Maps & navigation | ||
| Internal storage | 8 GB | 8 GB |
| Connectivity & safety | ||
| Bluetooth | Yes | Yes |
| Cellular modem (4G / LTE) | Yes | — |
| USB-C | — | Yes |
| Camera | — | Yes |
| Battery & power | ||
| Battery life | 13 h | 12 h |
| Battery capacity | — | 6,000 mAh |
| External power input | 9 - 28 V DC | — |
| Build & durability | ||
| Protection rating | IP67 | IP68 |
| Water protection (IPx) | IPx7 | IPx8 |
| MIL-STD-810 | Yes | — |
| Operating temperature (min) | -40 °C | -30 °C |
| Operating temperature (max) | 75 °C | 60 °C |
| Weight | 1,050 g | 385 g |
| Width | 142 mm | 98 mm |
| Height | 65 mm | 46 mm |
| Depth | 162 mm | 98 mm |
| Housing material | Aluminum alloy | — |
