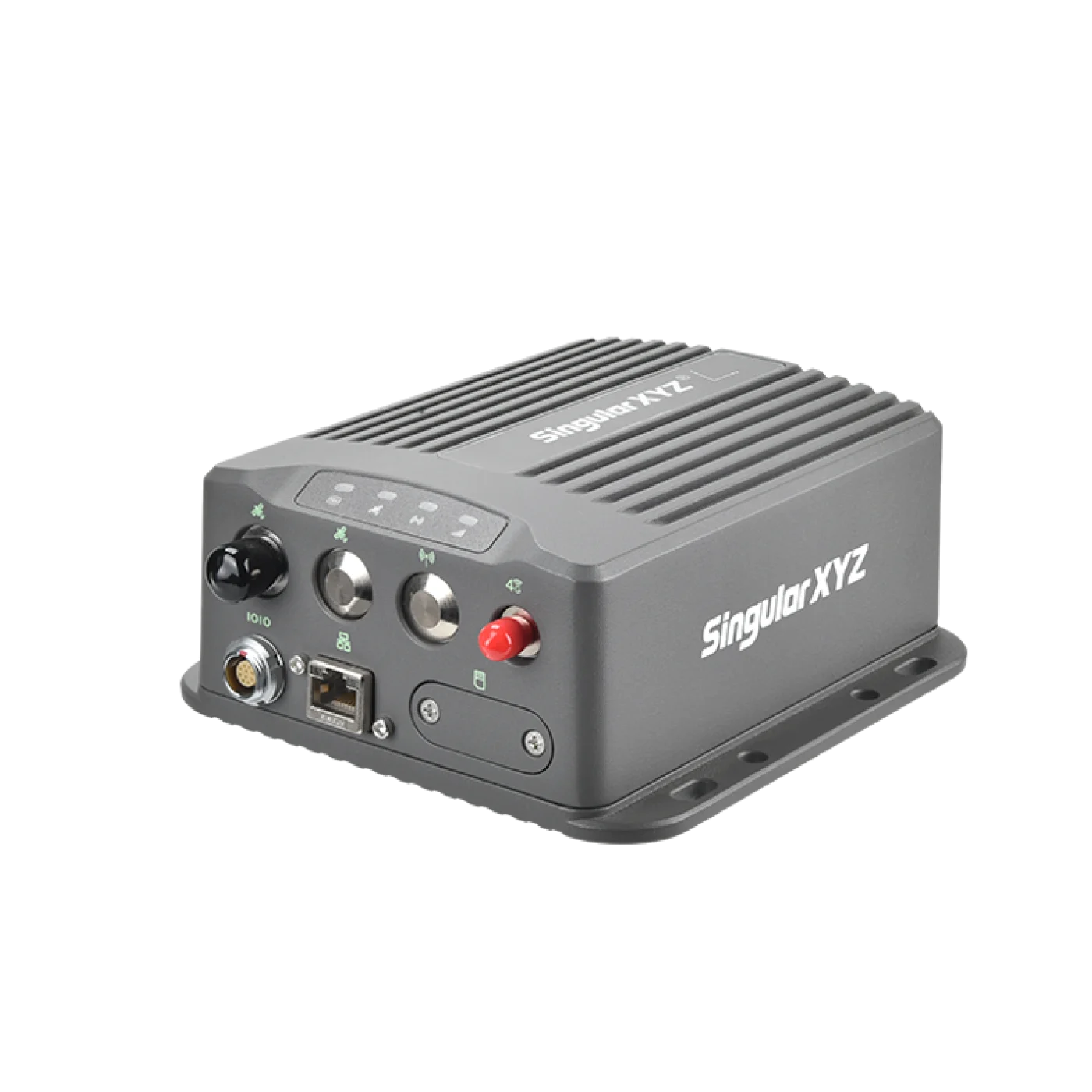

Name: SingularXYZ SV100 INS
Brand: SingularXYZ

SingularXYZ SV100 INS is a GNSS / RTK receiver released in 2025. Key specs: RTK accuracy (horizontal) 8 mm, tilt compensation (IMU), satellite systems supported 6, multi-band GNSS (L1 + L5/L2).

6.6Score

Positioning8.0

Maps & navigation4.9

Connectivity & safety5.9

Battery5.8

Durability5.3

price range—

Full specifications

Year: 2025
Type: GNSS / RTK receiver
Brand: SingularXYZ
Popularity: #108 of 301
Model numbers: SV100 INS GNSS Receiver

8 mmRTK accuracy (horizontal)

YesTilt compensation (IMU)

6Satellite systems supported

YesMulti-band GNSS (L1 + L5/L2)

13 hBattery life

IPx7Water protection (IPx)

1,050 gWeight

8 GBInternal storage

Spec guide

How it ranks among GNSS / RTK receivers

Spec guide

RTK accuracy (horizontal) · 8 mmTop 47% Satellite systems supported · 6Top 25% Battery life · 13 hBottom 41% Water protection (IPx) · IPx7Bottom 36% Weight · 1,050 gBottom 6% Internal storage · 8 GBBottom 26%

Compared with every model of this kind in the catalog.

compared with other GNSS / RTK receivers

Why is SV100 INS a good choice?

Satellite systems supported: 6better than 70% of GNSS / RTK receivers

Weak points

Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers

In rankings

#24Most accurate RTK receivers #8Best SingularXYZ GPS & navigation #29Best GPS & navigation of 2025

Specifications

Full specifications

Satellite positioning

Satellite systems: GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS)
Satellite systems supported: 6
Multi-band GNSS (L1 + L5/L2): Yes
Frequency bands: L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3
RTK positioning: Yes
RTK accuracy (horizontal): 8 mm
RTK accuracy (vertical): 15 mm
Tilt compensation (IMU): Yes
Correction sources: NTRIP (internet), UHF radio, Cellular modem
Built-in UHF radio: Yes
Raw data logging (RINEX): Yes

Maps & navigation

Internal storage: 8 GB

Connectivity & safety

Bluetooth: Yes
Cellular modem (4G / LTE): Yes

Battery & power

Battery life: 13 h
External power input: 9 - 28 V DC

Build & durability

Protection rating: IP67
Water protection (IPx): IPx7
MIL-STD-810: Yes
Operating temperature (min): -40 °C
Operating temperature (max): 75 °C
Weight: 1,050 g
Width: 142 mm
Height: 65 mm
Depth: 162 mm
Housing material: Aluminum alloy
