JAVADGNSS / RTK receiver

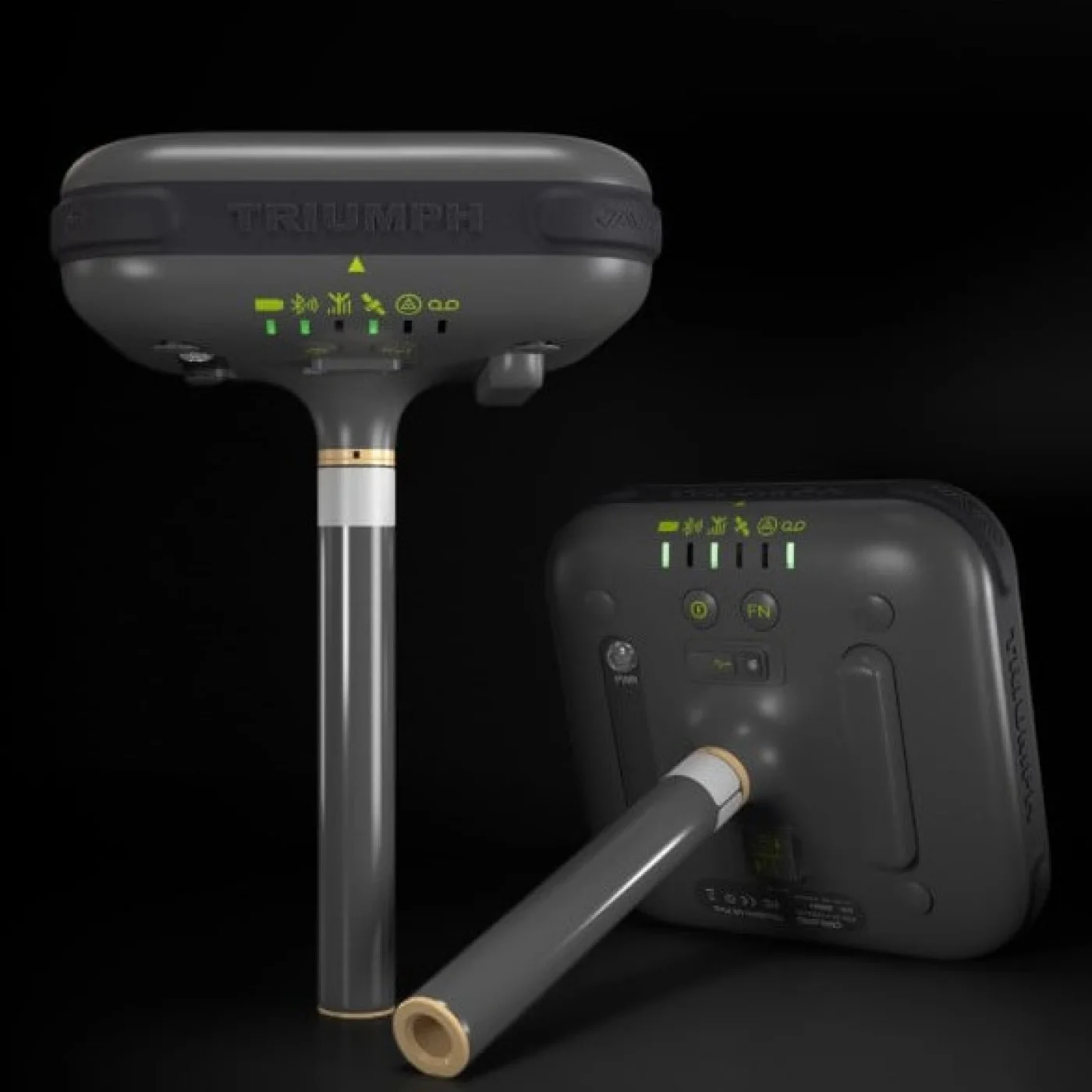

JAVAD TRIUMPH-1M Plus
JAVAD TRIUMPH-1M Plus is a GNSS / RTK receiver released in 2023. Key specs: tracking channels 874, tilt compensation (IMU), satellite systems supported 6, battery life 18 h.
9.0Score
Positioning3.9
Maps & navigation8.3
Connectivity & safety5.9
Battery8.4
Durability6.7
price range—
- Year
- 2023
- Brand
- JAVAD
- Popularity
- #157 of 301
- Model numbers
874Tracking channels
YesTilt compensation (IMU)
6Satellite systems supported
NoMulti-band GNSS (L1 + L5/L2)
18 hBattery life
IPx8Water protection (IPx)
1,700 gWeight
62 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
Tracking channels · 874Bottom 38%
Satellite systems supported · 6Top 22%
Battery life · 18 hTop 26%
Water protection (IPx) · IPx8Top 11%
Weight · 1,700 gBottom 5%
Internal storage · 62 GBTop 9%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is TRIUMPH-1M Plus a good choice?
Water protection (IPx): IPx8better than 85% of GNSS / RTK receivers
Battery life: 18 hbetter than 80% of GNSS / RTK receivers
Internal storage: 62 GBbetter than 96% of GNSS / RTK receivers
Satellite systems supported: 6better than 70% of GNSS / RTK receivers
Weak points
Weight: 1,700 gworse than 93% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 6
- Multi-band GNSS (L1 + L5/L2)
- No
- Frequency bands
- L-band
- Tracking channels
- 874
- Tilt compensation (IMU)
- Yes
- Built-in UHF radio
- Yes
- L-band / PPP corrections
- Yes
Maps & navigation
- Internal storage
- 62 GB
- Memory card slot
- Yes
Connectivity & safety
- Wi-Fi
- Yes
- Bluetooth
- Yes
Battery & power
- Battery life
- 18 h
- Power source
- Removable rechargeable pack
- External power input
- 10-30 VDC
Build & durability
- Protection rating
- IP68
- Water protection (IPx)
- IPx8
- MIL-STD-810
- Yes
- Drop resistance
- 2 m
- Operating temperature (max)
- 65 °C
- Weight
- 1,700 g
- Width
- 178 mm
- Height
- 96 mm
- Depth
- 178 mm
- Housing material
- Hardened Plastic
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
