SatLabGNSS / RTK receiver
SatLab Eyr

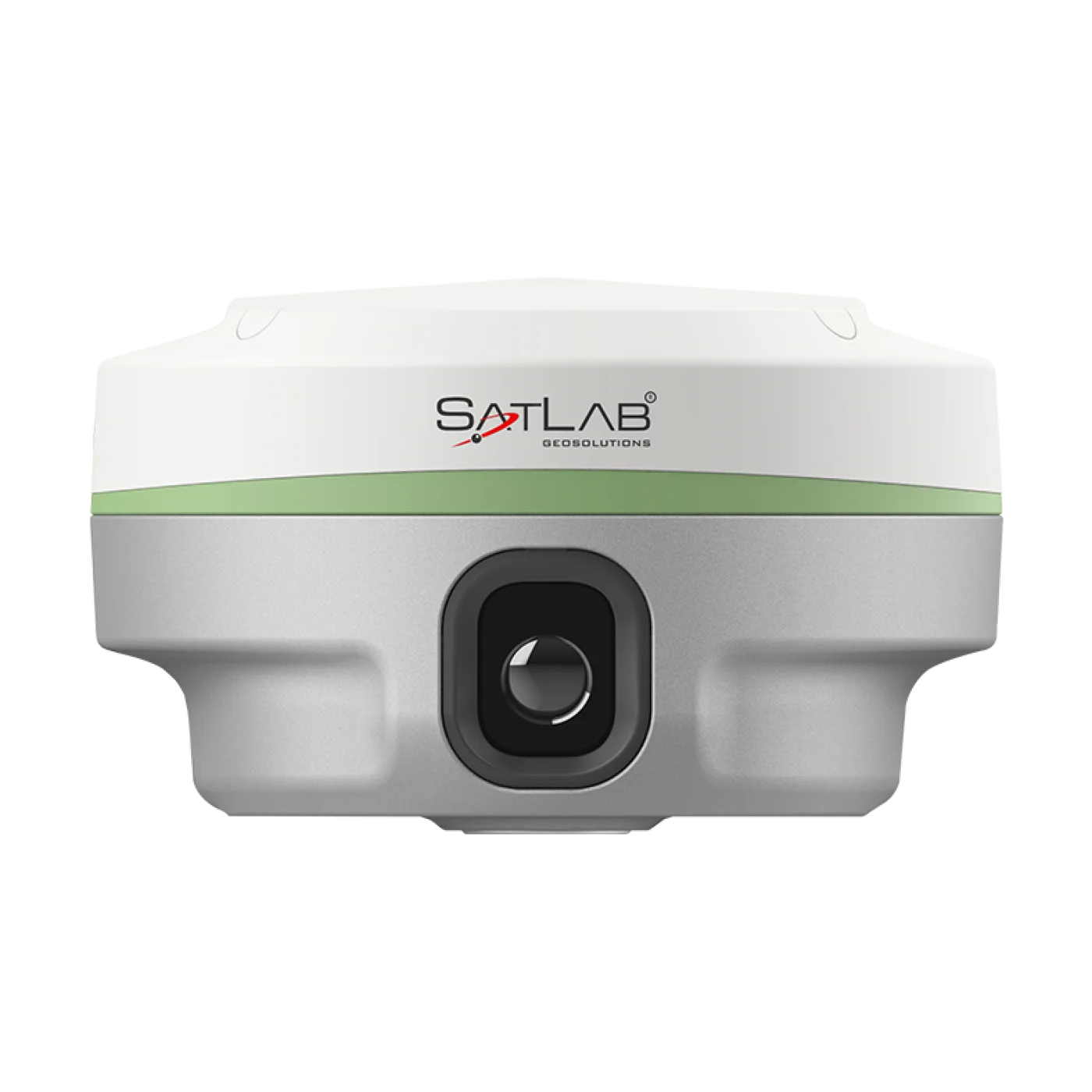

SatLab Eyr is a GNSS / RTK receiver released in 2022. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 1,408, satellite systems supported 6, multi-band GNSS (L1 + L5/L2).
7.9Score
Positioning8.9
Maps & navigation4.9
Connectivity & safety5.9
Battery6.8
Durability8.9
price range—
- Year
- 2022
- Brand
- SatLab
- Popularity
- #170 of 301
- Model numbers
- Eyr GNSS RTK System
8 mmRTK accuracy (horizontal)
1,408Tracking channels
6Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
15 hBattery life
IPx8Water protection (IPx)
980 gWeight
8 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 1,408Top 33%
Satellite systems supported · 6Top 12%
Battery life · 15 hTop 38%
Water protection (IPx) · IPx8Top 10%
Weight · 980 gBottom 18%
Internal storage · 8 GBBottom 14%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is Eyr a good choice?
Water protection (IPx): IPx8better than 85% of GNSS / RTK receivers
Satellite systems supported: 6better than 70% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 6
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3
- Tracking channels
- 1,408
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- Static accuracy (horizontal)
- 2.5 mm
- Built-in UHF radio
- Yes
- Raw data logging (RINEX)
- Yes
Maps & navigation
- Internal storage
- 8 GB
Connectivity & safety
- Bluetooth
- Yes
- Cellular modem (4G / LTE)
- Yes
- Camera
- Yes
Battery & power
- Battery life
- 15 h
Build & durability
- Protection rating
- IP68
- Water protection (IPx)
- IPx8
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 75 °C
- Weight
- 980 g
- Width
- 138 mm
- Height
- 79 mm
- Housing material
- Magnesium
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
