SingularXYZGNSS / RTK receiver

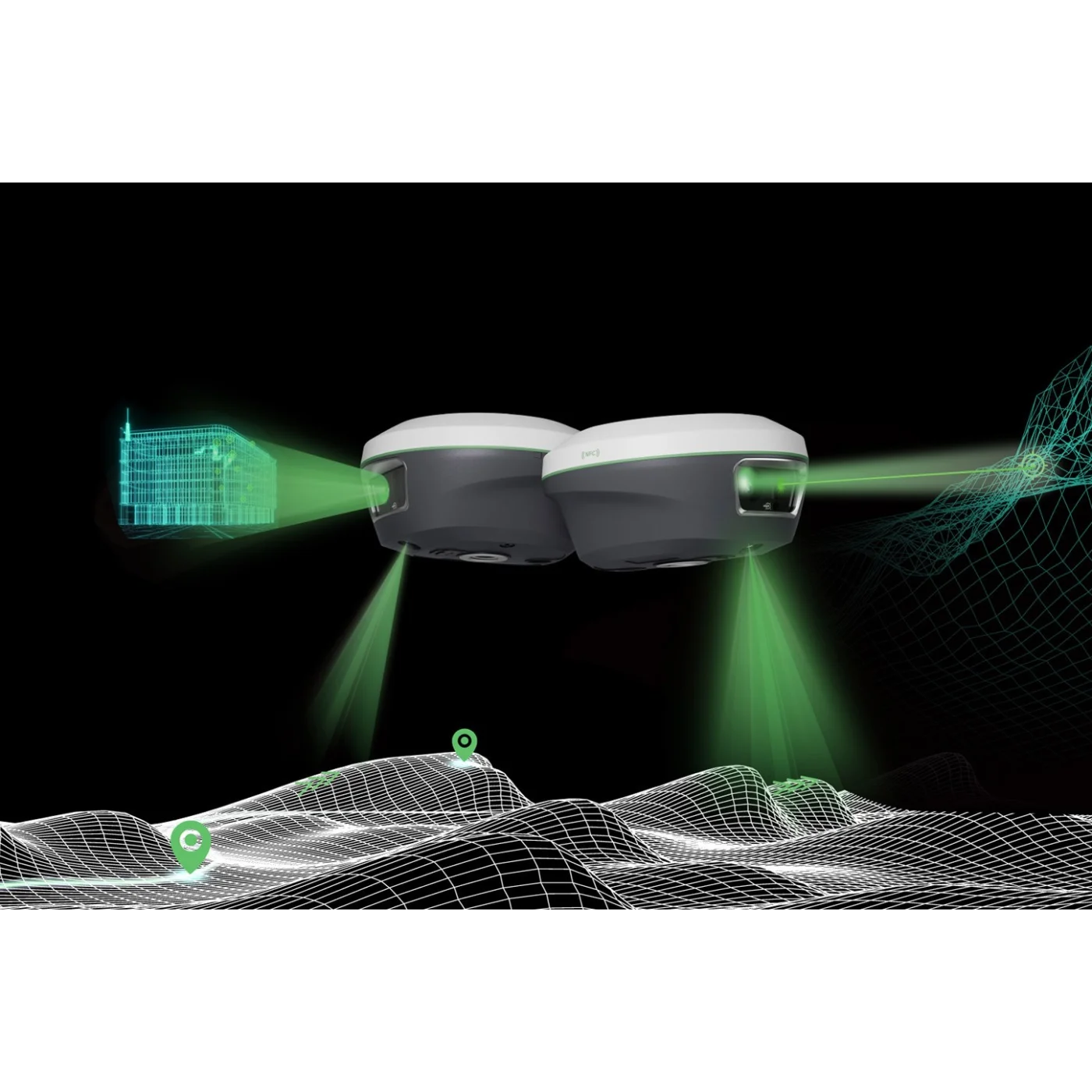

SingularXYZ Horus Visual & Laser

Name: SingularXYZ Horus Visual & Laser
Brand: SingularXYZ

SingularXYZ Horus Visual & Laser is a GNSS / RTK receiver released in 2025. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 1,408, tilt compensation (IMU), satellite systems supported 5.

5.2Score

Positioning6.3

Maps & navigation4.9

Connectivity & safety5.9

Battery4.8

Durability5.6

price range—

Full specifications

Year: 2025
Type: GNSS / RTK receiver
Brand: SingularXYZ
Popularity: #100 of 301
Model numbers

8 mmRTK accuracy (horizontal)

1,408Tracking channels

YesTilt compensation (IMU)

5Satellite systems supported

YesMulti-band GNSS (L1 + L5/L2)

12 hBattery life

IPx7Water protection (IPx)

720 gWeight

8 GBInternal storage

Spec guide

How it ranks among GNSS / RTK receivers

Spec guide

RTK accuracy (horizontal) · 8 mmTop 47% Tracking channels · 1,408Top 33% Satellite systems supported · 5Bottom 40% Battery life · 12 hBottom 25% Water protection (IPx) · IPx7Bottom 36% Weight · 720 gBottom 48% Internal storage · 8 GBBottom 26%

Compared with every model of this kind in the catalog.

Specifications

Full specifications

Satellite positioning

Satellite systems: GPS, GLONASS, Galileo, BeiDou, QZSS
Satellite systems supported: 5
Multi-band GNSS (L1 + L5/L2): Yes
Frequency bands: L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3
Tracking channels: 1,408
SBAS (WAAS / EGNOS): Yes
RTK positioning: Yes
RTK accuracy (horizontal): 8 mm
RTK accuracy (vertical): 15 mm
Static accuracy (horizontal): 2.5 mm
Tilt compensation (IMU): Yes
Max. tilt angle: 60°
Correction sources: NTRIP (internet), UHF radio, L-band / PPP, SBAS
Built-in UHF radio: Yes
L-band / PPP corrections: Yes
Raw data logging (RINEX): Yes

Maps & navigation

Internal storage: 8 GB

Connectivity & safety

Wi-Fi: Yes
Bluetooth: Yes
NFC: Yes
USB-C: Yes
Camera: Yes

Battery & power

Battery life: 12 h

Build & durability

Protection rating: IP67
Water protection (IPx): IPx7
Drop resistance: 2 m
Operating temperature (min): -30 °C
Operating temperature (max): 65 °C
Weight: 720 g
Width: 133 mm
Height: 72 mm
Depth: 133 mm
Housing material: Magnesium-aluminum Alloy

Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
