eSurveyGNSS / RTK receiver

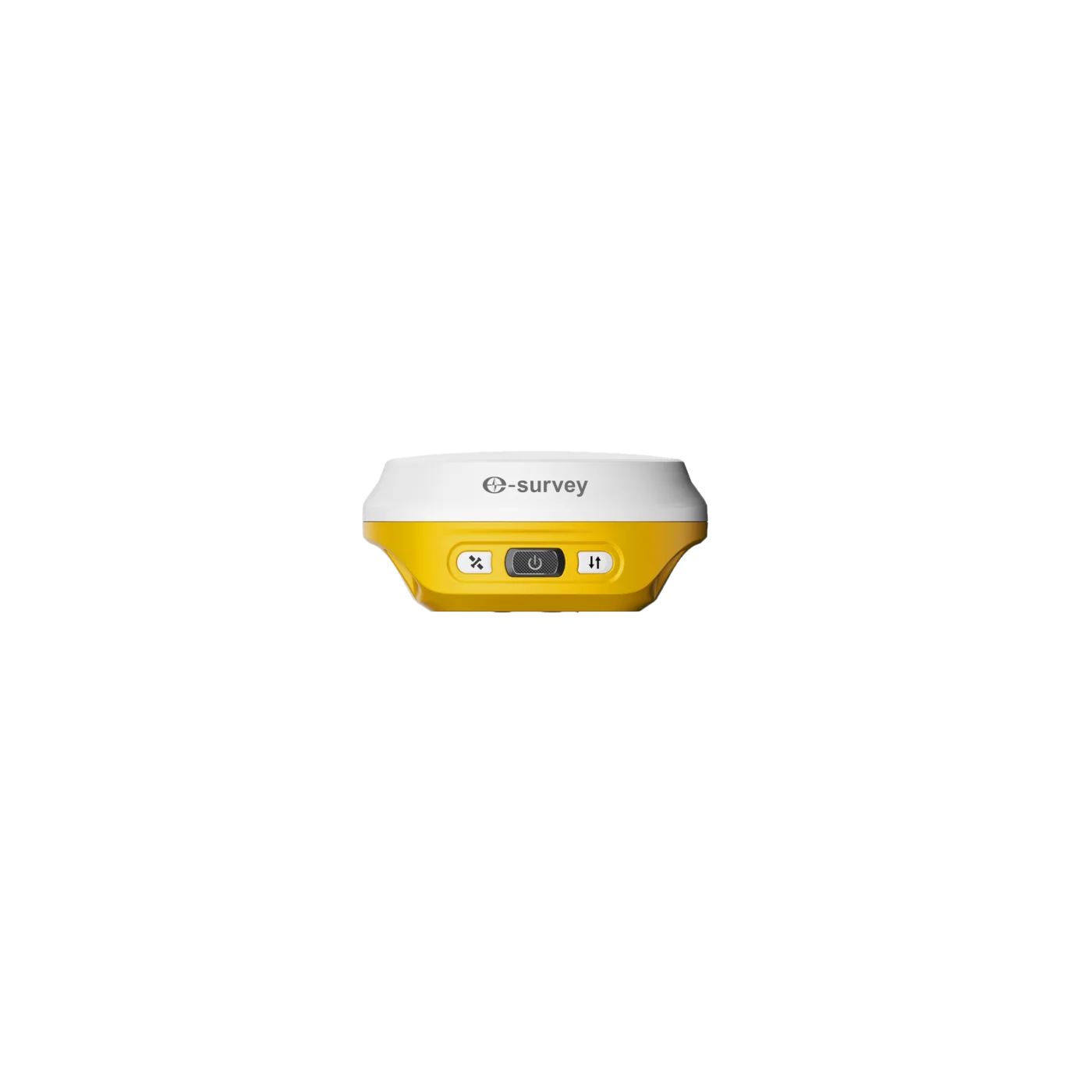

eSurvey eRTK10 mini

Name: eSurvey eRTK10 mini
Brand: eSurvey

eSurvey eRTK10 mini is a GNSS / RTK receiver released in 2025. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 1,408, tilt compensation (IMU), satellite systems supported 6.

5.4Score

Positioning5.4

Maps & navigation4.9

Connectivity & safety5.9

Battery5.2

Durability6.2

price range—

Full specifications

Year: 2025
Type: GNSS / RTK receiver
Brand: eSurvey
Popularity: #111 of 301
Model numbers: eSurvey eRTK10 mini

8 mmRTK accuracy (horizontal)

1,408Tracking channels

YesTilt compensation (IMU)

6Satellite systems supported

NoMulti-band GNSS (L1 + L5/L2)

12 hBattery life

IPx7Water protection (IPx)

380 gWeight

8 GBInternal storage

Spec guide

How it ranks among GNSS / RTK receivers

Spec guide

RTK accuracy (horizontal) · 8 mmTop 47% Tracking channels · 1,408Top 33% Satellite systems supported · 6Top 25% Battery life · 12 hBottom 25% Water protection (IPx) · IPx7Bottom 36% Weight · 380 gTop 25% Internal storage · 8 GBBottom 26%

Compared with every model of this kind in the catalog.

compared with other GNSS / RTK receivers

Why is eRTK10 mini a good choice?

Weight: 380 gbetter than 87% of GNSS / RTK receivers

Satellite systems supported: 6better than 70% of GNSS / RTK receivers

Weak points

Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers

In rankings

#27Most accurate RTK receivers #14Lightest GNSS receivers #5Best eSurvey GPS & navigation

Specifications

Full specifications

Satellite positioning

Satellite systems: GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS)
Satellite systems supported: 6
Multi-band GNSS (L1 + L5/L2): No
Frequency bands: L-band
Tracking channels: 1,408
SBAS (WAAS / EGNOS): Yes
RTK positioning: Yes
RTK accuracy (horizontal): 8 mm
Tilt compensation (IMU): Yes
Correction sources: UHF radio, L-band / PPP, SBAS
Built-in UHF radio: Yes
L-band / PPP corrections: Yes

Maps & navigation

Internal storage: 8 GB

Connectivity & safety

Bluetooth: Yes
USB-C: Yes
Camera: Yes

Battery & power

Battery life: 12 h
Battery capacity: 5,800 mAh
Power source: Built-in rechargeable

Build & durability

Protection rating: IP67
Water protection (IPx): IPx7
Drop resistance: 2 m
Operating temperature (min): -30 °C
Operating temperature (max): 60 °C
Weight: 380 g
Width: 98 mm
Height: 455 mm

Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
