SingularXYZGNSS / RTK receiver

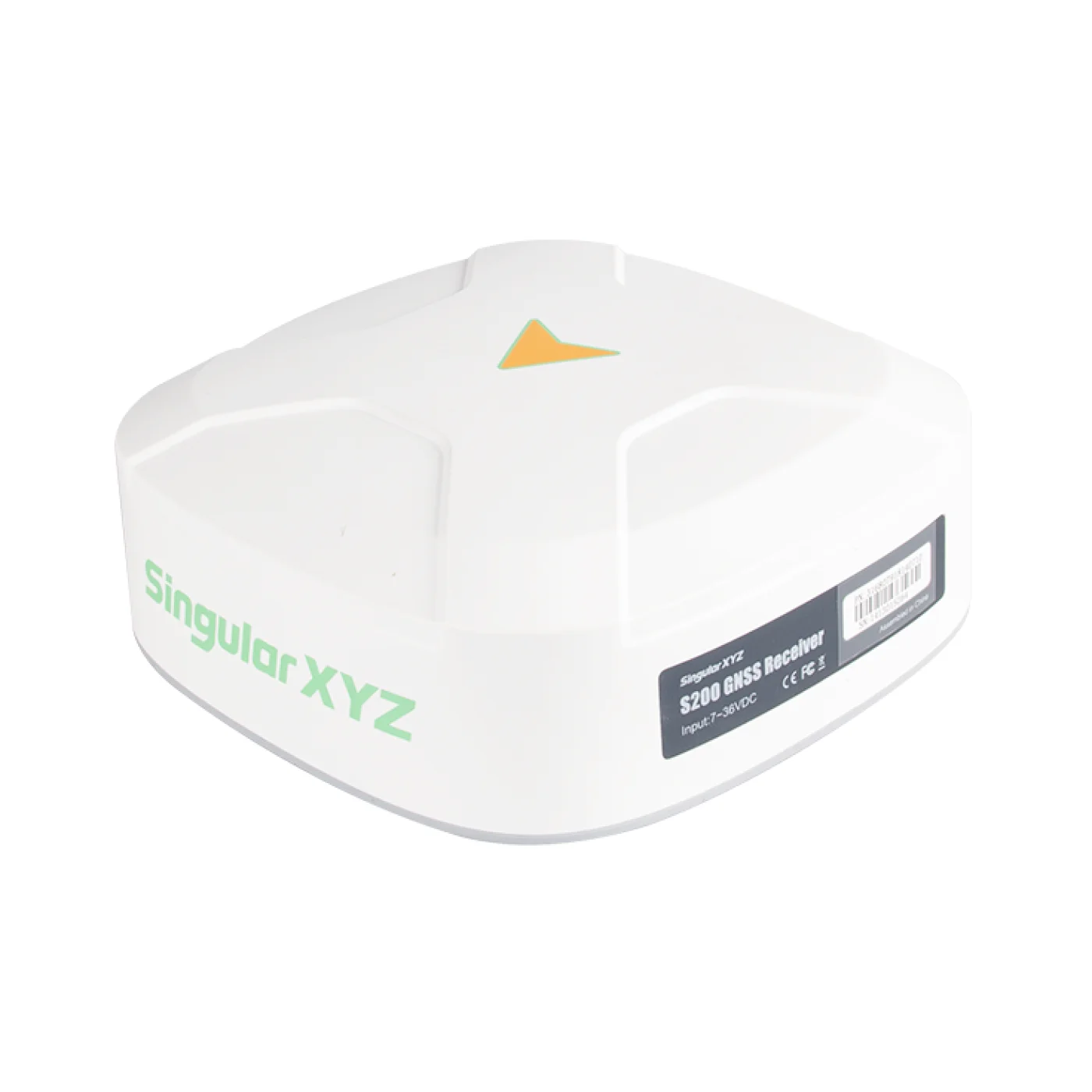

SingularXYZ S200
SingularXYZ S200 is a GNSS / RTK receiver released in 2024. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 1,408, satellite systems supported 5, multi-band GNSS (L1 + L5/L2).
7.3Score
Positioning4.9
Connectivity & safety5.9
Durability7.9
price range—
- Year
- 2024
- Brand
- SingularXYZ
- Popularity
- #142 of 301
- Model numbers
- S200 GNSS Receiver
8 mmRTK accuracy (horizontal)
1,408Tracking channels
5Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
IPx7Water protection (IPx)
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 1,408Top 33%
Satellite systems supported · 5Top 44%
Water protection (IPx) · IPx7Bottom 43%
Compared with every model of this kind in the catalog.
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 5
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, B1, B2, B3
- Tracking channels
- 1,408
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- Position update rate
- 100 Hz
- Built-in UHF radio
- No
Connectivity & safety
- Bluetooth
- Yes
- Cellular modem (4G / LTE)
- Yes
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Drop resistance
- 2 m
- Operating temperature (min)
- -45 °C
- Operating temperature (max)
- 75 °C
- Width
- 181 mm
- Height
- 70 mm
- Depth
- 181 mm
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
