- M100X vs S200

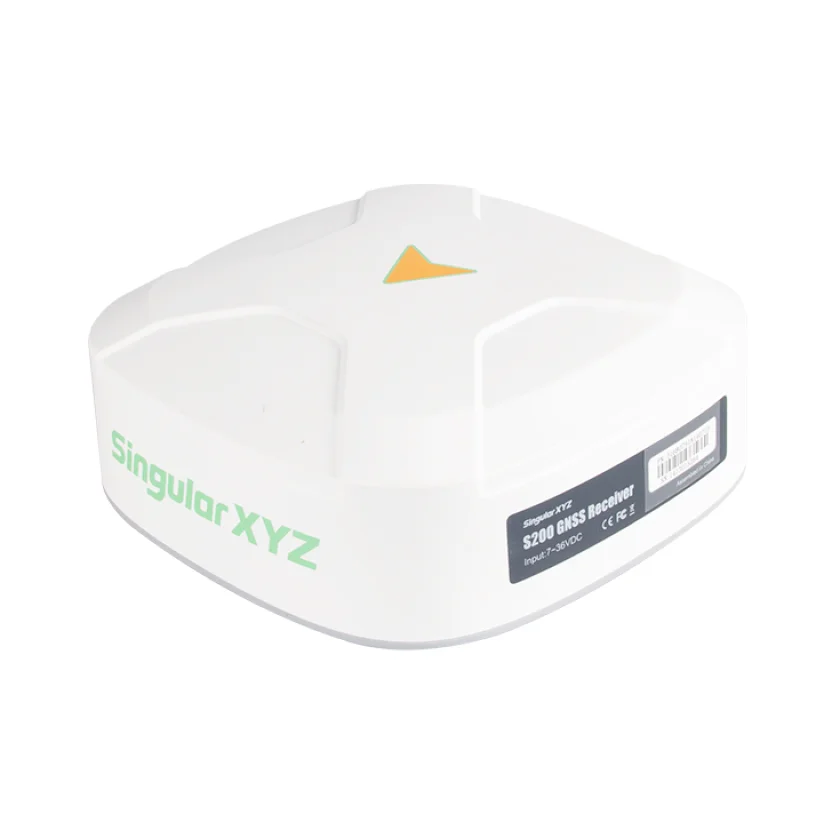

ComNav M100X vs SingularXYZ S200
What M100X does better (0) and where S200 wins (2) — every spec side by side.
Dimensions
Size comparison
M100XS200
| M100X | S200 | Difference | |
|---|---|---|---|
| Height | 151 mm | 70 mm | +81 mm |
| Width | 27 mm | 181 mm | −154 mm |
| Depth | 103 mm | 181 mm | −78 mm |
Drawn to the same scale from the official dimensions (front and side).
Why is M100X better than S200?
M100X has no measurable advantages in this pair.
Why is S200 better than M100X?
- Drop resistance1 m vs 2 m2×
- Operating temperature (min)-40 °C vs -45 °C+-11%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS | GPS, GLONASS, Galileo, BeiDou, QZSS |
| Satellite systems supported | 5 | 5 |
| Multi-band GNSS (L1 + L5/L2) | Yes | Yes |
| Frequency bands | L1, L2, E1, E5b, B1, B2, B3, L-band | L1, L2, L5, E1, E5a, E5b, B1, B2, B3 |
| Tracking channels | — | 1,408 |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | — | 8 mm |
| Position update rate | — | 100 Hz |
| Dual-antenna heading | Yes | — |
| Correction sources | NTRIP (internet), Cellular modem, L-band / PPP | NTRIP (internet), Cellular modem |
| Built-in UHF radio | — | No |
| L-band / PPP corrections | Yes | — |
| Connectivity & safety | ||
| Bluetooth | Yes | Yes |
| Cellular modem (4G / LTE) | Yes | Yes |
| Build & durability | ||
| Protection rating | IP67 | IP67 |
| Water protection (IPx) | IPx7 | IPx7 |
| Drop resistance | 1 m | 2 m |
| Operating temperature (min) | -40 °C | -45 °C |
| Operating temperature (max) | 75 °C | 75 °C |
| Weight | 300 g | — |
| Width | 27 mm | 181 mm |
| Height | 151 mm | 70 mm |
| Depth | 103 mm | 181 mm |
| Housing material | Aluminum Alloy | — |
