SingularXYZGNSS / RTK receiver

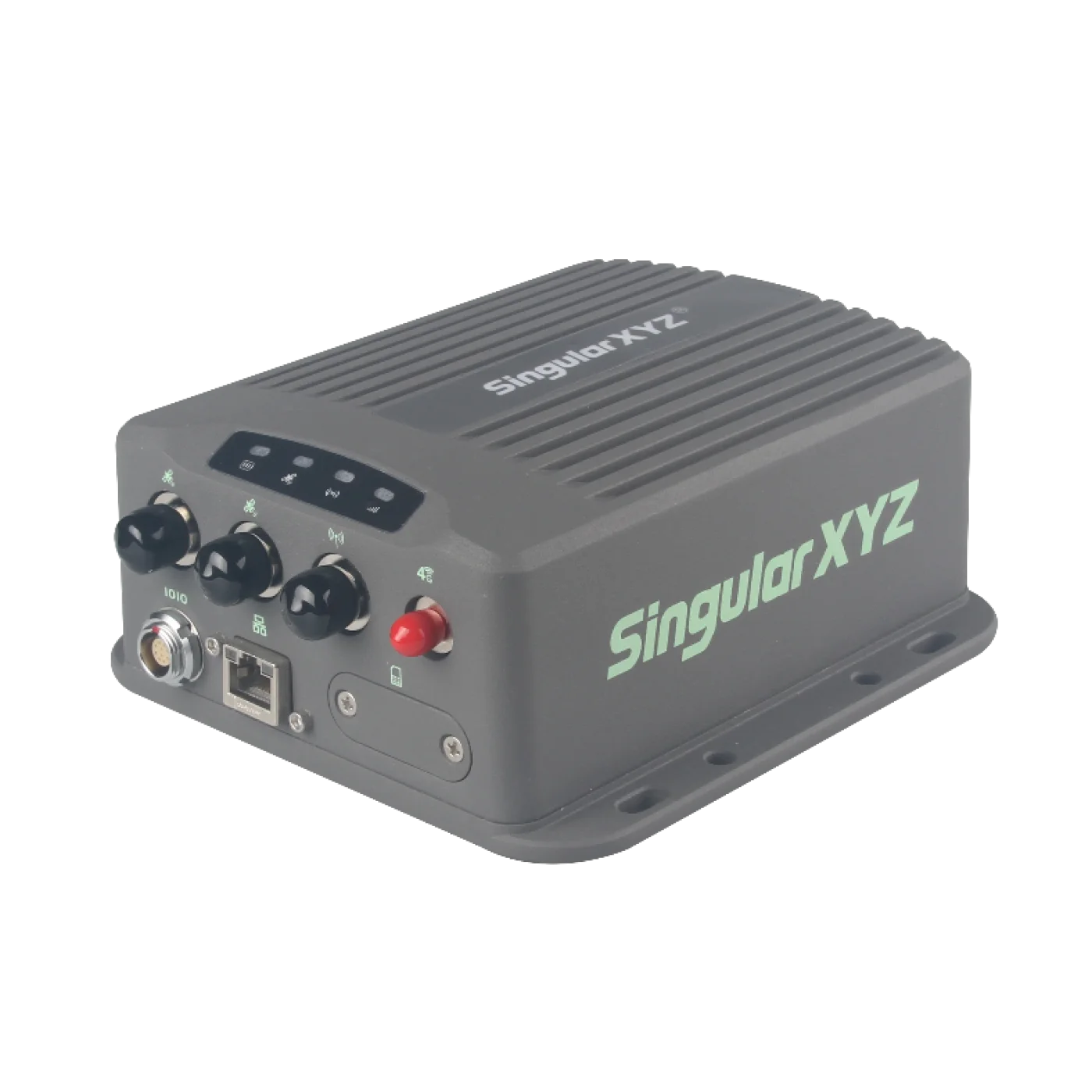

SingularXYZ SV100 Dual
SingularXYZ SV100 Dual is a GNSS / RTK receiver released in 2022. Key specs: RTK accuracy (horizontal) 8 mm, satellite systems supported 5, multi-band GNSS (L1 + L5/L2), battery life 13 h.
5.9Score
Positioning5.1
Maps & navigation4.9
Connectivity & safety5.9
Battery5.8
Durability5.3
price range—
- Year
- 2022
- Brand
- SingularXYZ
- Popularity
- #172 of 301
- Model numbers
- SV100 Dual GNSS Receiver
8 mmRTK accuracy (horizontal)
5Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
13 hBattery life
IPx7Water protection (IPx)
1,050 gWeight
8 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Satellite systems supported · 5Top 34%
Battery life · 13 hTop 43%
Water protection (IPx) · IPx7Bottom 41%
Weight · 1,050 gBottom 13%
Internal storage · 8 GBBottom 14%
Compared with every model of this kind in the catalog.
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 5
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, B1, B2, B3
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- RTK accuracy (vertical)
- 15 mm
- Static accuracy (horizontal)
- 2.5 mm
- Dual-antenna heading
- Yes
- Built-in UHF radio
- Yes
- Raw data logging (RINEX)
- Yes
Maps & navigation
- Internal storage
- 8 GB
Connectivity & safety
- Wi-Fi
- Yes
- Bluetooth
- Yes
- Cellular modem (4G / LTE)
- Yes
Battery & power
- Battery life
- 13 h
- External power input
- 9 - 28 V DC
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- MIL-STD-810
- Yes
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 75 °C
- Weight
- 1,050 g
- Width
- 142 mm
- Height
- 65 mm
- Depth
- 162 mm
- Housing material
- Magnesium-aluminum alloy
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
