SingularXYZGNSS / RTK receiver

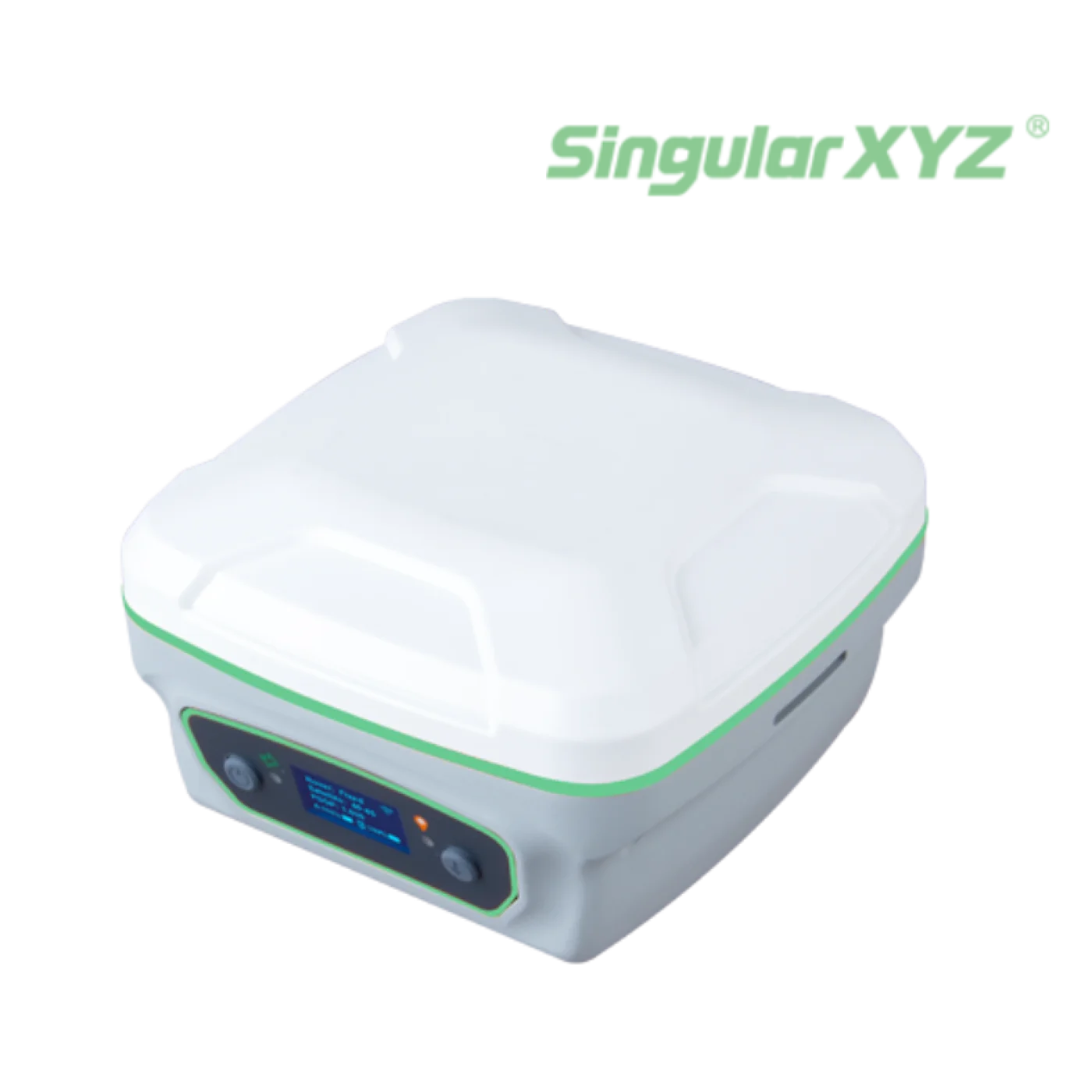

SingularXYZ Y1
SingularXYZ Y1 is a GNSS / RTK receiver released in 2022. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 1,598, tilt compensation (IMU), satellite systems supported 6.
6.0Score
Positioning8.8
Maps & navigation4.9
Connectivity & safety5.9
Battery5.5
Durability4.7
price range—
- Year
- 2022
- Brand
- SingularXYZ
- Popularity
- #180 of 301
- Model numbers
- Y1 GNSS Receiver
8 mmRTK accuracy (horizontal)
1,598Tracking channels
YesTilt compensation (IMU)
6Satellite systems supported
12 hBattery life
IPx7Water protection (IPx)
834 gWeight
8 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 1,598Top 3%
Satellite systems supported · 6Top 12%
Battery life · 12 hTop 47%
Water protection (IPx) · IPx7Bottom 41%
Weight · 834 gBottom 30%
Internal storage · 8 GBBottom 14%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is Y1 a good choice?
Tracking channels: 1,598better than 97% of GNSS / RTK receivers
Satellite systems supported: 6better than 70% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 6
- Tracking channels
- 1,598
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- RTK accuracy (vertical)
- 15 mm
- Static accuracy (horizontal)
- 2.5 mm
- Tilt compensation (IMU)
- Yes
- Built-in UHF radio
- Yes
- Raw data logging (RINEX)
- Yes
Maps & navigation
- Internal storage
- 8 GB
Connectivity & safety
- Wi-Fi
- Yes
- Bluetooth
- Yes
- Cellular modem (4G / LTE)
- Yes
Battery & power
- Battery life
- 12 h
- Battery capacity
- 6,600 mAh
- Hot-swappable batteries
- Yes
- External power input
- 6-28V DC
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Drop resistance
- 2 m
- Operating temperature (min)
- -30 °C
- Operating temperature (max)
- 65 °C
- Weight
- 834 g
- Width
- 123 mm
- Height
- 70 mm
- Depth
- 123 mm
- Housing material
- Magnesium-aluminum alloy
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
