TrimbleGNSS / RTK receiver

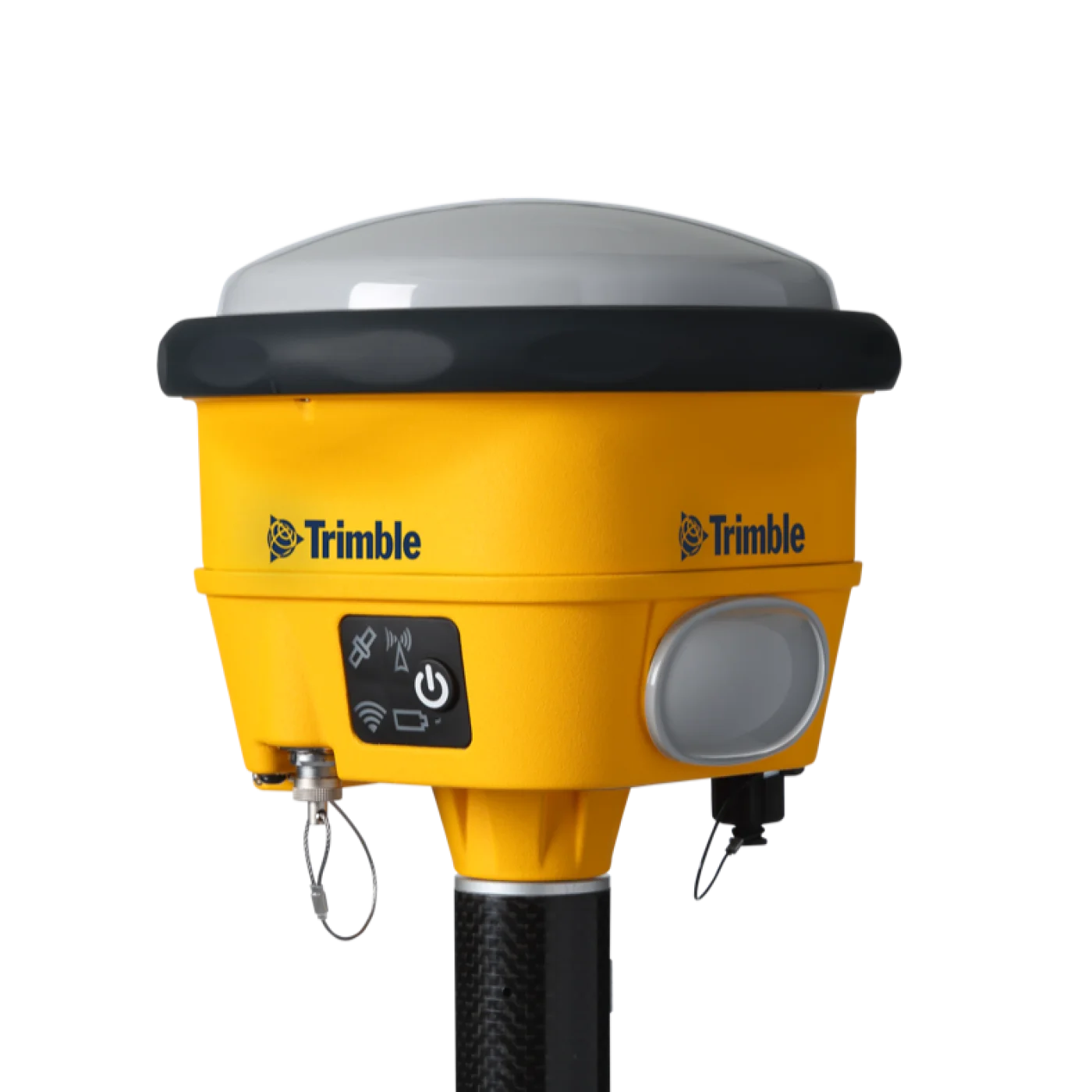

Trimble R780
Trimble R780 is a GNSS / RTK receiver released in 2022. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 672, tilt compensation (IMU), satellite systems supported 6.
6.0Score
Positioning6.8
Maps & navigation8.4
Connectivity & safety5.9
Battery2.4
Durability6.9
price range—
- Year
- 2022
- Brand
Trimble- Popularity
- #175 of 301
- Model numbers
- Trimble R780
8 mmRTK accuracy (horizontal)
672Tracking channels
YesTilt compensation (IMU)
6Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
6 hBattery life
IPx8Water protection (IPx)
1,550 gWeight
9 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 672Bottom 27%
Satellite systems supported · 6Top 12%
Battery life · 6 hBottom 49%
Water protection (IPx) · IPx8Top 10%
Weight · 1,550 gBottom 2%
Internal storage · 9 GBBottom 29%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is R780 a good choice?
Water protection (IPx): IPx8better than 85% of GNSS / RTK receivers
Satellite systems supported: 6better than 70% of GNSS / RTK receivers
Internal storage: 9 GBbetter than 75% of GNSS / RTK receivers
Weak points
Battery life: 6 hworse than 94% of GNSS / RTK receivers
Weight: 1,550 gworse than 92% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 6
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3
- Tracking channels
- 672
- GNSS engine
- Trimble Maxwell 7
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- Static accuracy (horizontal)
- 3 mm
- Tilt compensation (IMU)
- Yes
- Built-in UHF radio
- Yes
- L-band / PPP corrections
- Yes
Maps & navigation
- Internal storage
- 9 GB
Connectivity & safety
- Wi-Fi
- Yes
- Bluetooth
- Yes
Battery & power
- Battery life
- 6 h
Build & durability
- Protection rating
- IP68
- Water protection (IPx)
- IPx8
- MIL-STD-810
- Yes
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 65 °C
- Weight
- 1,550 g
- Width
- 139 mm
- Height
- 130 mm
- Housing material
- Marine Aluminium
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
