SingularXYZGNSS / RTK receiver
SingularXYZ Z1

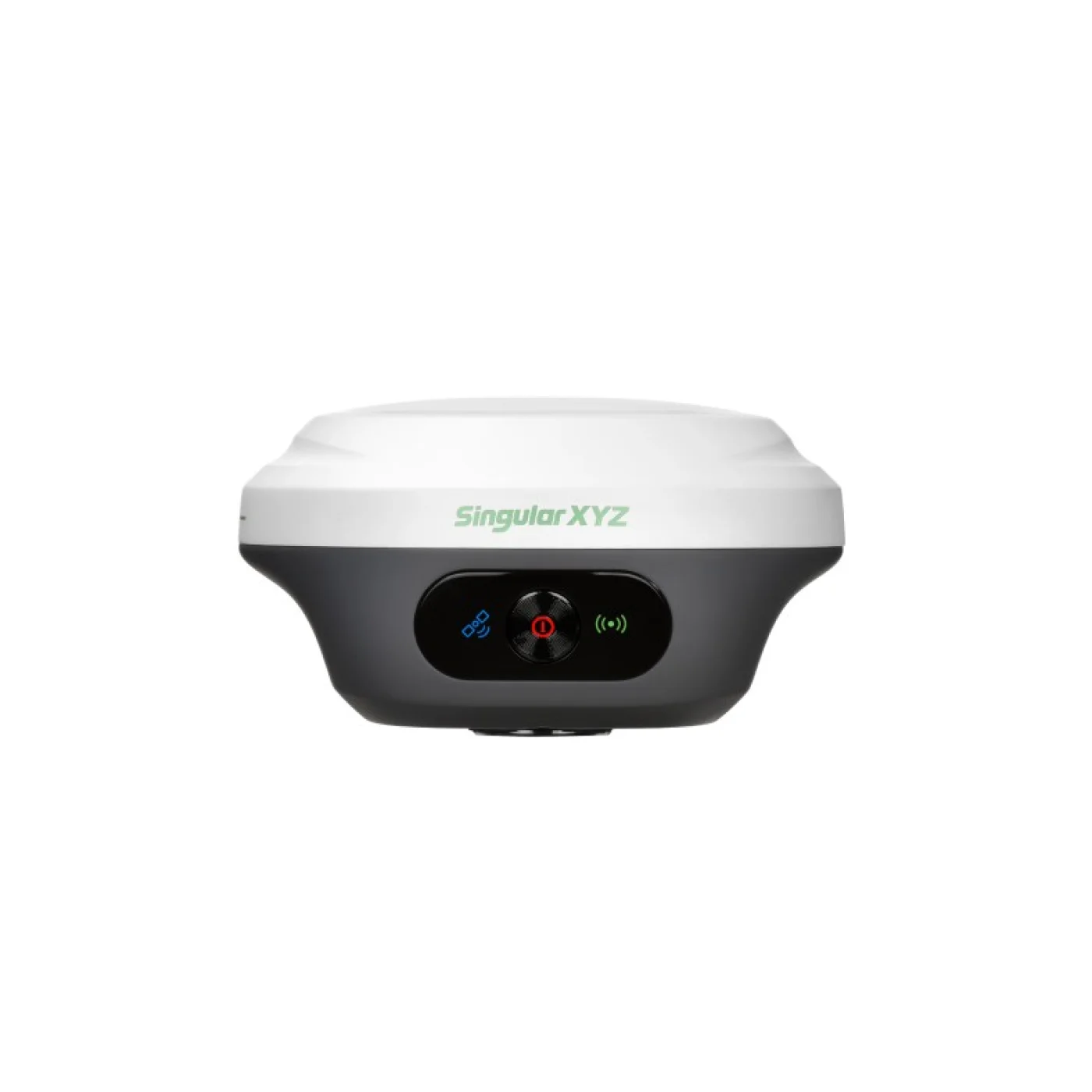

SingularXYZ Z1 is a GNSS / RTK receiver released in 2024. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 1,408, tilt compensation (IMU), satellite systems supported 5.
4.5Score
Positioning6.5
Maps & navigation2.1
Connectivity & safety5.9
Battery6.8
Durability7.2
price range—
- Year
- 2024
- Brand
- SingularXYZ
- Popularity
- #120 of 301
- Model numbers
- Z1 GNSS Receiver
8 mmRTK accuracy (horizontal)
1,408Tracking channels
YesTilt compensation (IMU)
5Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
15 hBattery life
IPx7Water protection (IPx)
547 gWeight
4 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 1,408Top 33%
Satellite systems supported · 5Top 44%
Battery life · 15 hTop 38%
Water protection (IPx) · IPx7Bottom 43%
Weight · 547 gBottom 49%
Internal storage · 4 GBBottom 3%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is Z1 a good choice?
Weight: 547 gbetter than 75% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
Satellite systems supported: 5worse than 88% of GNSS / RTK receivers
In rankings
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 5
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3
- Tracking channels
- 1,408
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- Static accuracy (horizontal)
- 2.5 mm
- Tilt compensation (IMU)
- Yes
- Max. tilt angle
- 60°
- Built-in UHF radio
- Yes
- L-band / PPP corrections
- Yes
- Raw data logging (RINEX)
- Yes
Maps & navigation
- Internal storage
- 4 GB
Connectivity & safety
- Wi-Fi
- Yes
- Bluetooth
- Yes
- USB-C
- Yes
Battery & power
- Battery life
- 15 h
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Drop resistance
- 2 m
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 65 °C
- Weight
- 547 g
- Width
- 107 mm
- Height
- 59 mm
- Depth
- 107 mm
- Housing material
- Magnesium-aluminum alloy
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
