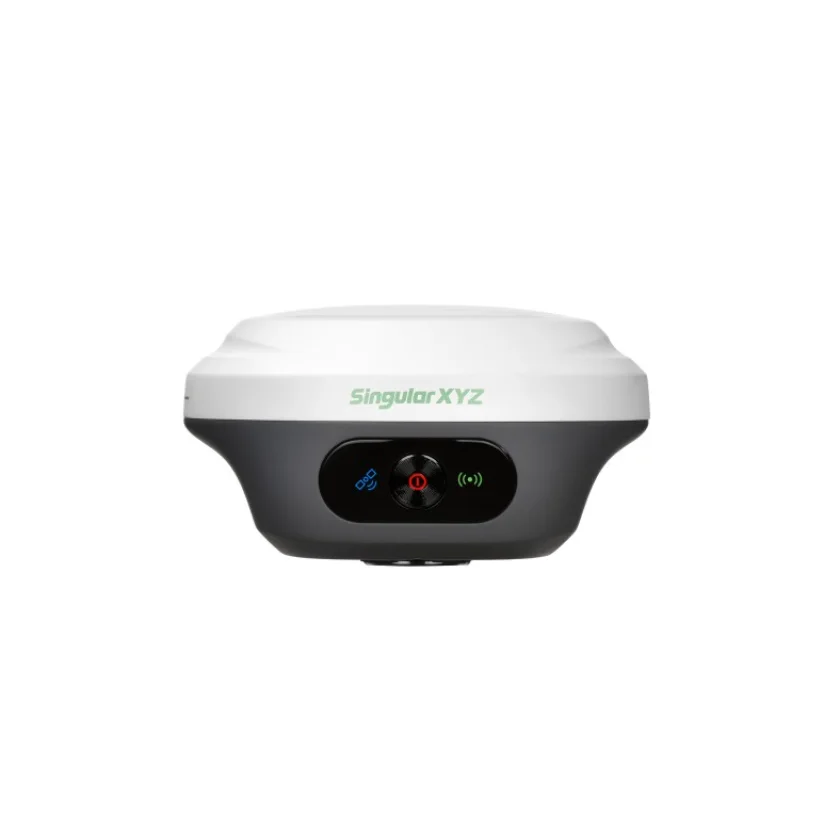

SingularXYZ Z1 vs Trimble R980
What Z1 does better (4) and where R980 wins (2) — every spec side by side.
Why is Z1 better than R980?
- Battery life15 h vs 6 h2.3×
- Weight547 g vs 1,130 g2.1×
- Tracking channels1,408 vs 6722.1×
- Static accuracy (horizontal)2.5 mm vs 3 mm+20%
Why is R980 better than Z1?
- Internal storage4 GB vs 9 GB2.2×
- Satellite systems supported5 vs 6+20%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 5 | 6 |
| Multi-band GNSS (L1 + L5/L2) | Yes | Yes |
| Frequency bands | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3 | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3 |
| Tracking channels | 1,408 | 672 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 8 mm | 8 mm |
| Static accuracy (horizontal) | 2.5 mm | 3 mm |
| Tilt compensation (IMU) | Yes | Yes |
| Max. tilt angle | 60° | — |
| Correction sources | UHF radio, LoRa radio, L-band / PPP, SBAS | NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS |
| Built-in UHF radio | Yes | Yes |
| L-band / PPP corrections | Yes | Yes |
| Raw data logging (RINEX) | Yes | — |
| Maps & navigation | ||
| Internal storage | 4 GB | 9 GB |
| Connectivity & safety | ||
| Wi-Fi | Yes | Yes |
| Bluetooth | Yes | Yes |
| Cellular modem (4G / LTE) | — | Yes |
| USB-C | Yes | Yes |
| Battery & power | ||
| Battery life | 15 h | 6 h |
| Build & durability | ||
| Protection rating | IP67 | IP67 |
| Water protection (IPx) | IPx7 | IPx7 |
| MIL-STD-810 | — | Yes |
| Drop resistance | 2 m | — |
| Operating temperature (min) | -40 °C | -40 °C |
| Operating temperature (max) | 65 °C | 65 °C |
| Weight | 547 g | 1,130 g |
| Width | 107 mm | — |
| Height | 59 mm | — |
| Depth | 107 mm | — |
| Housing material | Magnesium-aluminum alloy | Magnesium |
