- CGI-230 vs T20

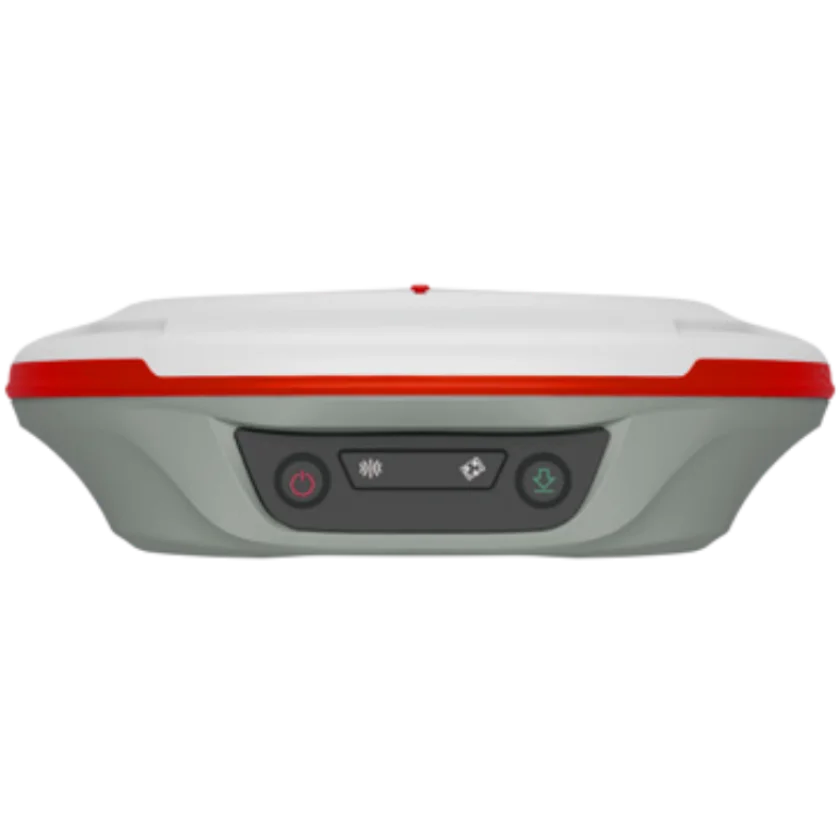

CHCNAV CGI-230 vs ComNav T20
What CGI-230 does better (3) and where T20 wins (0) — every spec side by side.
Why is CGI-230 better than T20?
- Weight400 g vs 680 g+70%
- Operating temperature (min)-40 °C vs -30 °C+-25%
- Operating temperature (max)75 °C vs 65 °C+15%
Why is T20 better than CGI-230?
T20 has no measurable advantages in this pair.
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | — | GPS, GLONASS, Galileo, BeiDou, QZSS |
| Satellite systems supported | — | 5 |
| Tracking channels | — | 1,590 |
| SBAS (WAAS / EGNOS) | — | Yes |
| Static accuracy (horizontal) | — | 3 mm |
| Tilt compensation (IMU) | Yes | Yes |
| Dual-antenna heading | Yes | — |
| Correction sources | — | NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS |
| Built-in UHF radio | — | Yes |
| L-band / PPP corrections | — | Yes |
| Maps & navigation | ||
| Internal storage | — | 8 GB |
| Connectivity & safety | ||
| Bluetooth | — | Yes |
| Cellular modem (4G / LTE) | — | Yes |
| USB-C | — | Yes |
| Battery & power | ||
| Battery life | — | 12 h |
| External power input | — | 5/9V |
| Build & durability | ||
| Protection rating | — | IP67 |
| Water protection (IPx) | — | IPx7 |
| Drop resistance | — | 2 m |
| Operating temperature (min) | -40 °C | -30 °C |
| Operating temperature (max) | 75 °C | 65 °C |
| Weight | 400 g | 680 g |
| Width | 105 mm | 149 mm |
| Height | 350 mm | 48 mm |
| Depth | 154 mm | — |
| Housing material | — | Magnesium aluminum alloy |
