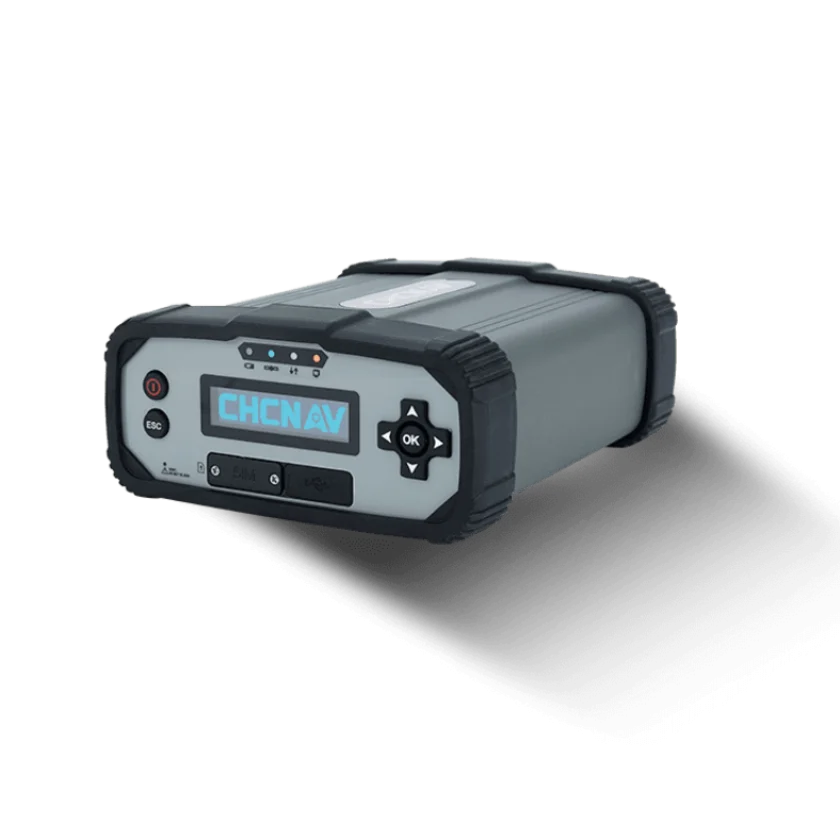

CHCNAV P5 vs Stonex SC2200
What P5 does better (1) and where SC2200 wins (2) — every spec side by side.
Dimensions
Size comparison
P5SC2200
| P5 | SC2200 | Difference | |
|---|---|---|---|
| Height | 69 mm | 79 mm | −10 mm |
| Width | 150 mm | 164 mm | −14 mm |
| Depth | 200 mm | 222 mm | −22 mm |
| Weight | 2,150 g | 2,000 g | +150 g |
Drawn to the same scale from the official dimensions (front and side).
Why is P5 better than SC2200?
- Tracking channels624 vs 555+12%
Why is SC2200 better than P5?
- Satellite systems supported5 vs 6+20%
- Weight2,150 g vs 2,000 g+7%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 5 | 6 |
| Multi-band GNSS (L1 + L5/L2) | Yes | — |
| Frequency bands | L1, L2, L5, E1, E5a, E5b, B1, B2, B3 | — |
| Tracking channels | 624 | 555 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | — | Yes |
| RTK accuracy (horizontal) | — | 8 mm |
| Static accuracy (horizontal) | 2.5 mm | — |
| Correction sources | NTRIP (internet), Cellular modem, SBAS | NTRIP (internet), Cellular modem, L-band / PPP, SBAS |
| Built-in UHF radio | — | No |
| L-band / PPP corrections | — | Yes |
| Raw data logging (RINEX) | Yes | Yes |
| Maps & navigation | ||
| Internal storage | — | 31 GB |
| Memory card slot | — | Yes |
| Connectivity & safety | ||
| Wi-Fi | Yes | — |
| Bluetooth | Yes | Yes |
| Cellular modem (4G / LTE) | Yes | Yes |
| Battery & power | ||
| Battery life | 20 h | 20 h |
| Battery capacity | — | 600 mAh |
| External power input | 9 V DC to 36 V DC | — |
| Build & durability | ||
| Protection rating | IP67 | IP67 |
| Water protection (IPx) | IPx7 | IPx7 |
| Operating temperature (min) | -40 °C | -40 °C |
| Operating temperature (max) | 65 °C | 65 °C |
| Weight | 2,150 g | 2,000 g |
| Width | 150 mm | 164 mm |
| Height | 69 mm | 79 mm |
| Depth | 200 mm | 222 mm |
