StonexGNSS / RTK receiver

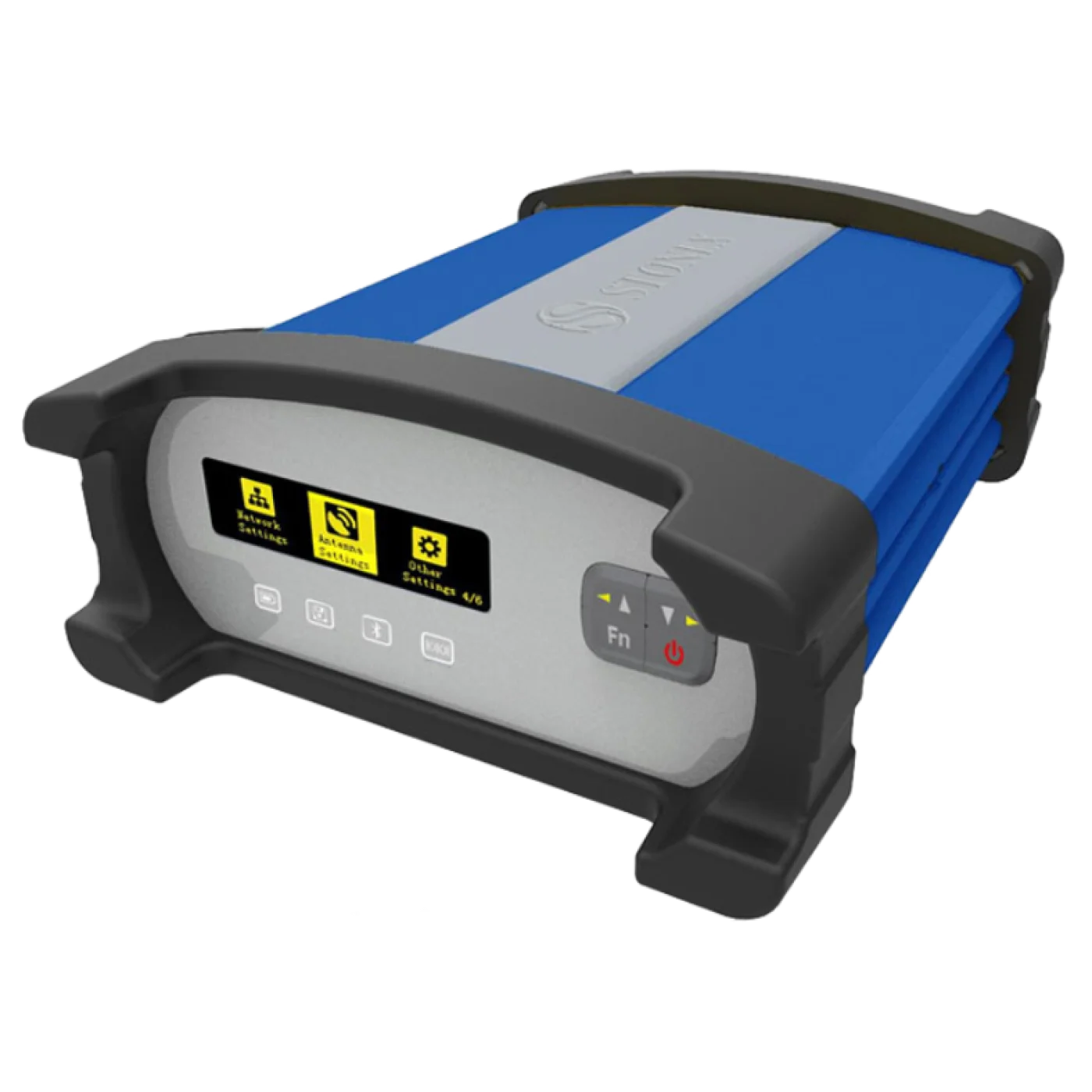

Stonex SC2200
Stonex SC2200 is a GNSS / RTK receiver released in 2019. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 555, satellite systems supported 6, battery life 20 h.
7.5Score
Positioning4.8
Maps & navigation8.2
Connectivity & safety5.9
Battery7.3
Durability2.8
price range—
- Year
- 2019
- Brand
- Stonex
- Popularity
- #243 of 301
8 mmRTK accuracy (horizontal)
555Tracking channels
6Satellite systems supported
20 hBattery life
IPx7Water protection (IPx)
2,000 gWeight
31 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 555Bottom 19%
Satellite systems supported · 6Top 19%
Battery life · 20 hTop 20%
Water protection (IPx) · IPx7Bottom 43%
Weight · 2,000 gBottom 2%
Internal storage · 31 GBTop 31%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is SC2200 a good choice?
Battery life: 20 hbetter than 88% of GNSS / RTK receivers
Internal storage: 31 GBbetter than 90% of GNSS / RTK receivers
Satellite systems supported: 6better than 70% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
Weight: 2,000 gworse than 95% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 6
- Tracking channels
- 555
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- Built-in UHF radio
- No
- L-band / PPP corrections
- Yes
- Raw data logging (RINEX)
- Yes
Maps & navigation
- Internal storage
- 31 GB
- Memory card slot
- Yes
Connectivity & safety
- Bluetooth
- Yes
- Cellular modem (4G / LTE)
- Yes
Battery & power
- Battery life
- 20 h
- Battery capacity
- 600 mAh
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 65 °C
- Weight
- 2,000 g
- Width
- 164 mm
- Height
- 79 mm
- Depth
- 222 mm
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
