CHCNAVGNSS / RTK receiver

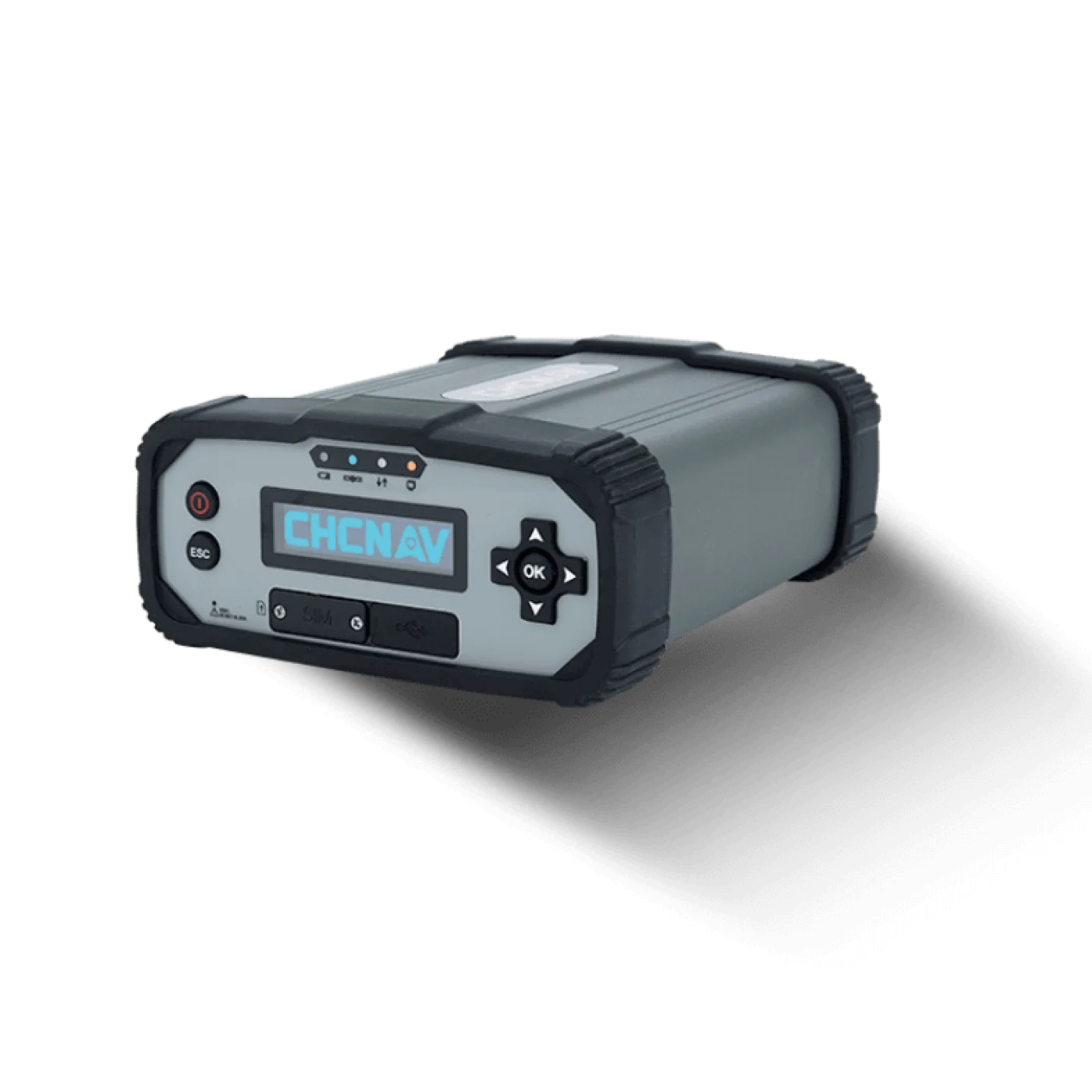

CHCNAV P5
CHCNAV P5 is a GNSS / RTK receiver released in 2020. Key specs: tracking channels 624, satellite systems supported 5, multi-band GNSS (L1 + L5/L2), battery life 20 h.
7.6Score
Positioning3.7
Connectivity & safety5.9
Battery9.0
Durability2.8
price range—
- Year
- 2020
- Brand
- CHCNAV
- Popularity
- #207 of 301
- Model numbers
- P5 GNSS
624Tracking channels
5Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
20 hBattery life
IPx7Water protection (IPx)
2,150 gWeight
Spec guide
How it ranks among GNSS / RTK receivers
Tracking channels · 624Bottom 26%
Satellite systems supported · 5Top 48%
Battery life · 20 hTop 20%
Water protection (IPx) · IPx7Bottom 43%
Weight · 2,150 gBottom 2%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is P5 a good choice?
Battery life: 20 hbetter than 88% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
Satellite systems supported: 5worse than 88% of GNSS / RTK receivers
Weight: 2,150 gworse than 97% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 5
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, B1, B2, B3
- Tracking channels
- 624
- SBAS (WAAS / EGNOS)
- Yes
- Static accuracy (horizontal)
- 2.5 mm
- Raw data logging (RINEX)
- Yes
Connectivity & safety
- Wi-Fi
- Yes
- Bluetooth
- Yes
- Cellular modem (4G / LTE)
- Yes
Battery & power
- Battery life
- 20 h
- External power input
- 9 V DC to 36 V DC
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 65 °C
- Weight
- 2,150 g
- Width
- 150 mm
- Height
- 69 mm
- Depth
- 200 mm
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
