- Jupiter Laser RTK vs Orion ONE-AR

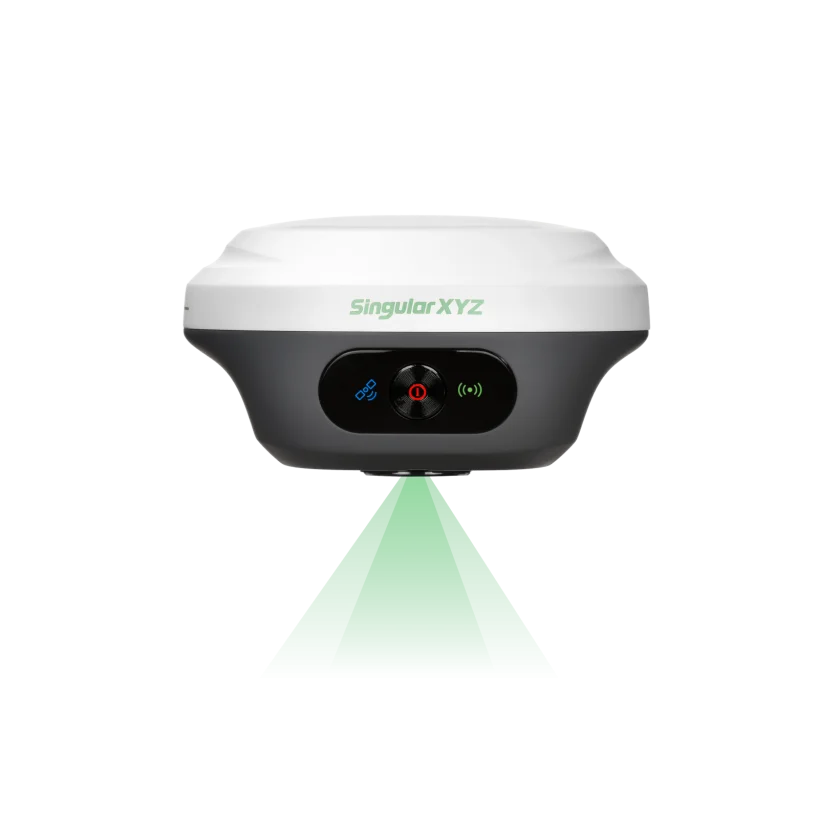

ComNav Jupiter Laser RTK vs SingularXYZ Orion ONE-AR
What Jupiter Laser RTK does better (4) and where Orion ONE-AR wins (3) — every spec side by side.
vs
6.8Positioning6.3
2.1Maps & navigation4.9
5.9Connectivity & safety5.9
7.1Battery4.8
8.6Durability7.2
Dimensions
Size comparison
Jupiter Laser RTKOrion ONE-AR
| Jupiter Laser RTK | Orion ONE-AR | Difference | |
|---|---|---|---|
| Height | 66 mm | 59 mm | +7 mm |
| Width | 134 mm | 107 mm | +27 mm |
| Depth | 134 mm | 107 mm | +27 mm |
| Weight | 810 g | 547 g | +263 g |
Drawn to the same scale from the official dimensions (front and side).
Why is Jupiter Laser RTK better than Orion ONE-AR?
- Battery life16 h vs 12 h+33%
- Water protection (IPx)IPx8 vs IPx7+14%
- Satellite systems supported6 vs 5+20%
- Tracking channels1,668 vs 1,408+18%
Why is Orion ONE-AR better than Jupiter Laser RTK?
- Multi-band GNSS (L1 + L5/L2)No · Jupiter Laser RTK: Yes
- Weight810 g vs 547 g+48%
- Internal storage4 GB vs 8 GB2×
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) | GPS, GLONASS, Galileo, BeiDou, QZSS |
| Satellite systems supported | 6 | 5 |
| Multi-band GNSS (L1 + L5/L2) | No | Yes |
| Frequency bands | L-band | L1, L2, L5, E1, E5a, E5b, B1, B2, B3 |
| Tracking channels | 1,668 | 1,408 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 8 mm | 8 mm |
| RTK accuracy (vertical) | 15 mm | 15 mm |
| Static accuracy (horizontal) | — | 2.5 mm |
| Tilt compensation (IMU) | Yes | Yes |
| Max. tilt angle | — | 60° |
| Correction sources | NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS | UHF radio, L-band / PPP, SBAS |
| Built-in UHF radio | Yes | Yes |
| L-band / PPP corrections | Yes | Yes |
| Raw data logging (RINEX) | — | Yes |
| Maps & navigation | ||
| Internal storage | 4 GB | 8 GB |
| Connectivity & safety | ||
| Wi-Fi | Yes | Yes |
| Bluetooth | Yes | Yes |
| Cellular modem (4G / LTE) | Yes | — |
| NFC | — | Yes |
| USB-C | Yes | Yes |
| Camera | Yes | Yes |
| Battery & power | ||
| Battery life | 16 h | 12 h |
| Battery capacity | 5,000 mAh | — |
| External power input | 7.2V | — |
| Build & durability | ||
| Protection rating | IP68 | IP67 |
| Water protection (IPx) | IPx8 | IPx7 |
| Drop resistance | 2 m | 2 m |
| Operating temperature (min) | -40 °C | -40 °C |
| Operating temperature (max) | 65 °C | 65 °C |
| Weight | 810 g | 547 g |
| Width | 134 mm | 107 mm |
| Height | 66 mm | 59 mm |
| Depth | 134 mm | 107 mm |
| Housing material | Aluminium magnesium alloy | Magnesium-aluminum alloy |
