- Jupiter Laser RTK vs eRTK10 mini

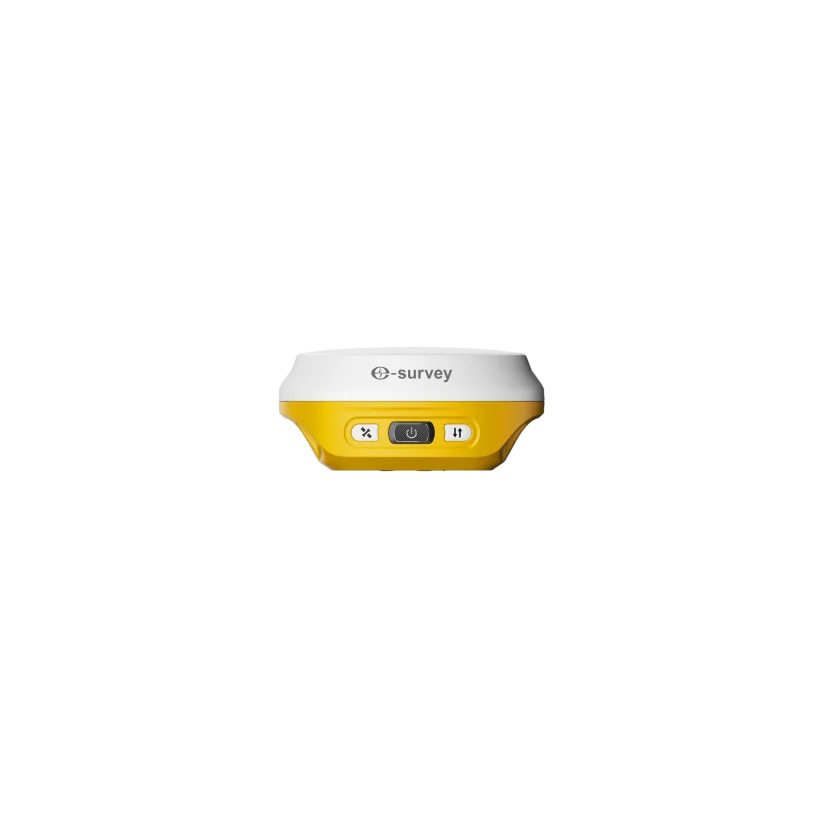

ComNav Jupiter Laser RTK vs eSurvey eRTK10 mini
What Jupiter Laser RTK does better (5) and where eRTK10 mini wins (3) — every spec side by side.
vs
6.8Positioning5.4
2.1Maps & navigation4.9
5.9Connectivity & safety5.9
7.1Battery5.2
8.6Durability6.2
Why is Jupiter Laser RTK better than eRTK10 mini?
- Battery life16 h vs 12 h+33%
- Water protection (IPx)IPx8 vs IPx7+14%
- Operating temperature (min)-40 °C vs -30 °C+-25%
- Tracking channels1,668 vs 1,408+18%
- Operating temperature (max)65 °C vs 60 °C+8%
Why is eRTK10 mini better than Jupiter Laser RTK?
- Weight810 g vs 380 g2.1×
- Internal storage4 GB vs 8 GB2×
- Battery capacity5,000 mAh vs 5,800 mAh+16%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 6 | 6 |
| Multi-band GNSS (L1 + L5/L2) | No | No |
| Frequency bands | L-band | L-band |
| Tracking channels | 1,668 | 1,408 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 8 mm | 8 mm |
| RTK accuracy (vertical) | 15 mm | — |
| Tilt compensation (IMU) | Yes | Yes |
| Correction sources | NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS | UHF radio, L-band / PPP, SBAS |
| Built-in UHF radio | Yes | Yes |
| L-band / PPP corrections | Yes | Yes |
| Maps & navigation | ||
| Internal storage | 4 GB | 8 GB |
| Connectivity & safety | ||
| Wi-Fi | Yes | — |
| Bluetooth | Yes | Yes |
| Cellular modem (4G / LTE) | Yes | — |
| USB-C | Yes | Yes |
| Camera | Yes | Yes |
| Battery & power | ||
| Battery life | 16 h | 12 h |
| Battery capacity | 5,000 mAh | 5,800 mAh |
| Power source | — | Built-in rechargeable |
| External power input | 7.2V | — |
| Build & durability | ||
| Protection rating | IP68 | IP67 |
| Water protection (IPx) | IPx8 | IPx7 |
| Drop resistance | 2 m | 2 m |
| Operating temperature (min) | -40 °C | -30 °C |
| Operating temperature (max) | 65 °C | 60 °C |
| Weight | 810 g | 380 g |
| Width | 134 mm | 98 mm |
| Height | 66 mm | 455 mm |
| Depth | 134 mm | — |
| Housing material | Aluminium magnesium alloy | — |
