- M600 mini vs SL900

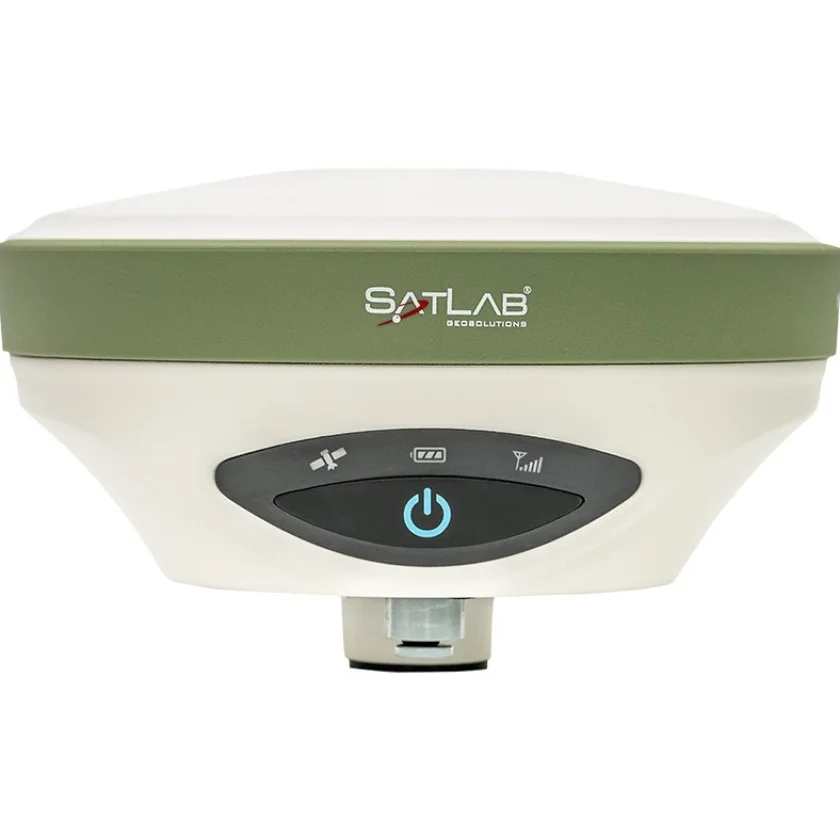

ComNav M600 mini vs SatLab SL900
What M600 mini does better (2) and where SL900 wins (3) — every spec side by side.
Dimensions
Size comparison
M600 miniSL900
| M600 mini | SL900 | Difference | |
|---|---|---|---|
| Height | 53 mm | 95 mm | −42 mm |
| Width | 191 mm | 170 mm | +21 mm |
| Weight | 800 g | 1,200 g | −400 g |
Drawn to the same scale from the official dimensions (front and side).
Why is M600 mini better than SL900?
- Weight800 g vs 1,200 g+50%
- Operating temperature (max)75 °C vs 65 °C+15%
Why is SL900 better than M600 mini?
- Satellite systems supported3 vs 4+33%
- Drop resistance1 m vs 2 m2×
- Tracking channels404 vs 555+37%
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, BeiDou | GPS, GLONASS, Galileo, BeiDou |
| Satellite systems supported | 3 | 4 |
| Multi-band GNSS (L1 + L5/L2) | Yes | Yes |
| Frequency bands | L1, L2, B1, B2 | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3 |
| Tracking channels | 404 | 555 |
| GNSS engine | — | Trimble BD990 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 8 mm | 8 mm |
| Static accuracy (horizontal) | 2.5 mm | — |
| Tilt compensation (IMU) | — | Yes |
| Dual-antenna heading | Yes | — |
| Correction sources | NTRIP (internet), UHF radio, Cellular modem, SBAS | NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS |
| Built-in UHF radio | Yes | Yes |
| L-band / PPP corrections | — | Yes |
| Raw data logging (RINEX) | — | Yes |
| Maps & navigation | ||
| Internal storage | — | 16 GB |
| Connectivity & safety | ||
| Bluetooth | — | Yes |
| Cellular modem (4G / LTE) | Yes | Yes |
| NFC | — | Yes |
| Battery & power | ||
| Battery life | — | 9 h |
| Battery capacity | — | 5,000 mAh |
| External power input | 6 - 28 VDC | 6-28V DC external power input（5-pin port） with over-discharge protection |
| Build & durability | ||
| Protection rating | — | IP67 |
| Water protection (IPx) | — | IPx7 |
| Drop resistance | 1 m | 2 m |
| Operating temperature (min) | -40 °C | -40 °C |
| Operating temperature (max) | 75 °C | 65 °C |
| Weight | 800 g | 1,200 g |
| Width | 191 mm | 170 mm |
| Height | 53 mm | 95 mm |
| Depth | 142 mm | — |
| Housing material | Aluminum alloy | — |
