SatLabGNSS / RTK receiver

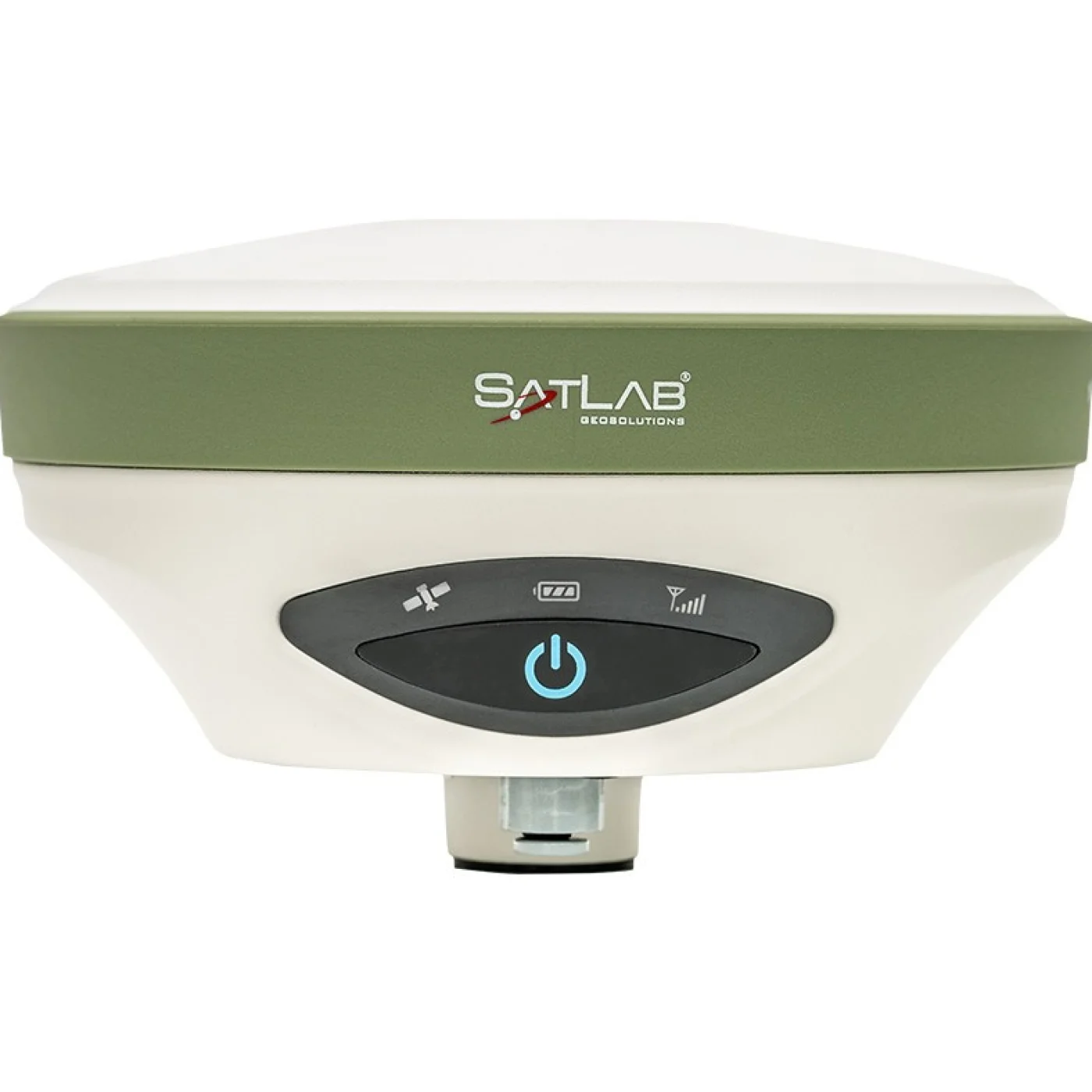

SatLab SL900
SatLab SL900 is a GNSS / RTK receiver released in 2018. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 555, tilt compensation (IMU), satellite systems supported 4.
5.5Score
Positioning3.7
Maps & navigation8.8
Connectivity & safety5.9
Battery2.8
Durability3.6
price range—
- Year
- 2018
- Brand
- SatLab
- Popularity
- #280 of 301
- Model numbers
- SatLab SL900 GNSS RTK Receiver
8 mmRTK accuracy (horizontal)
555Tracking channels
YesTilt compensation (IMU)
4Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
9 hBattery life
IPx7Water protection (IPx)
1,200 gWeight
16 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 555Bottom 19%
Satellite systems supported · 4Bottom 38%
Battery life · 9 hBottom 35%
Water protection (IPx) · IPx7Bottom 43%
Weight · 1,200 gBottom 10%
Internal storage · 16 GBTop 47%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is SL900 a good choice?
Internal storage: 16 GBbetter than 80% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
Battery life: 9 hworse than 92% of GNSS / RTK receivers
Satellite systems supported: 4worse than 97% of GNSS / RTK receivers
Weight: 1,200 gworse than 80% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 4
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3
- Tracking channels
- 555
- GNSS engine
- Trimble BD990
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- Tilt compensation (IMU)
- Yes
- Built-in UHF radio
- Yes
- L-band / PPP corrections
- Yes
- Raw data logging (RINEX)
- Yes
Maps & navigation
- Internal storage
- 16 GB
Connectivity & safety
- Bluetooth
- Yes
- Cellular modem (4G / LTE)
- Yes
- NFC
- Yes
Battery & power
- Battery life
- 9 h
- Battery capacity
- 5,000 mAh
- External power input
- 6-28V DC external power input（5-pin port） with over-discharge protection
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Drop resistance
- 2 m
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 65 °C
- Weight
- 1,200 g
- Width
- 170 mm
- Height
- 95 mm
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
