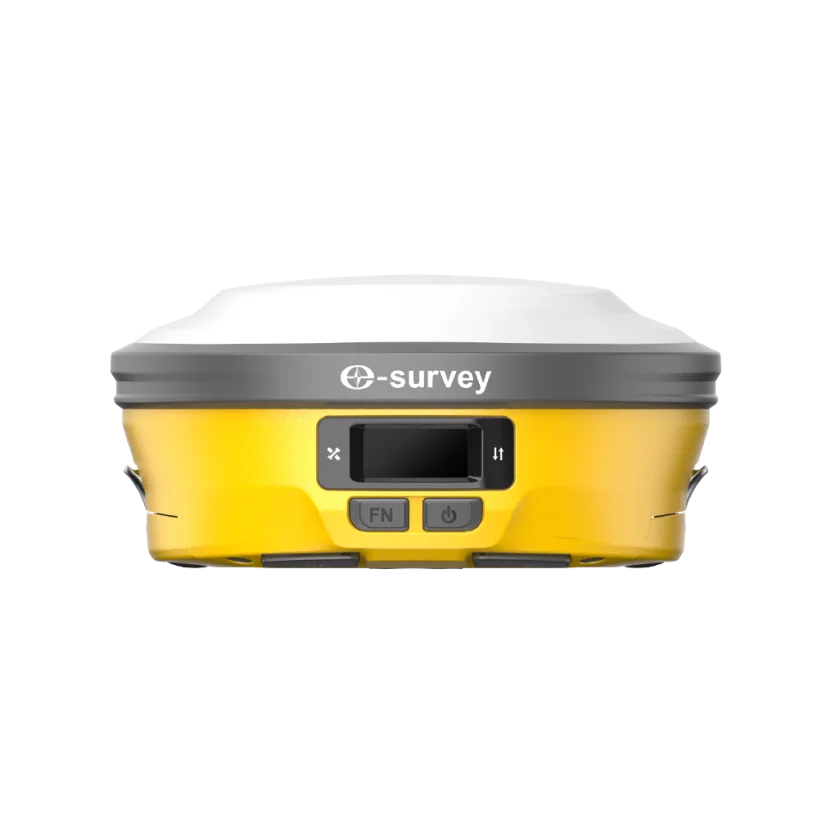

eSurvey eRTK80 vs SingularXYZ Xbase
What eRTK80 does better (2) and where Xbase wins (1) — every spec side by side.
Dimensions
Size comparison
eRTK80Xbase
| eRTK80 | Xbase | Difference | |
|---|---|---|---|
| Height | 78 mm | 93 mm | −15 mm |
| Width | 159 mm | 145 mm | +14 mm |
| Depth | 159 mm | 145 mm | +14 mm |
| Weight | 1,100 g | 1,204 g | −104 g |
Drawn to the same scale from the official dimensions (front and side).
Why is eRTK80 better than Xbase?
- Battery life10 h vs 8 h+25%
- Weight1,100 g vs 1,204 g+9%
Why is Xbase better than eRTK80?
- Multi-band GNSS (L1 + L5/L2)No · eRTK80: Yes
Specifications
Side by side
| Satellite positioning | ||
| Satellite systems | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) | GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS) |
| Satellite systems supported | 6 | 6 |
| Multi-band GNSS (L1 + L5/L2) | No | Yes |
| Frequency bands | L-band | L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3 |
| Tracking channels | 1,408 | 1,408 |
| SBAS (WAAS / EGNOS) | Yes | Yes |
| RTK positioning | Yes | Yes |
| RTK accuracy (horizontal) | 8 mm | 8 mm |
| RTK accuracy (vertical) | 15 mm | 15 mm |
| Static accuracy (horizontal) | 2.5 mm | 2.5 mm |
| Tilt compensation (IMU) | Yes | Yes |
| Max. tilt angle | 60° | — |
| Correction sources | NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS | NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS |
| Built-in UHF radio | Yes | Yes |
| L-band / PPP corrections | Yes | Yes |
| Raw data logging (RINEX) | — | Yes |
| Maps & navigation | ||
| Internal storage | 8 GB | 8 GB |
| Connectivity & safety | ||
| Wi-Fi | Yes | Yes |
| Bluetooth | Yes | Yes |
| Cellular modem (4G / LTE) | Yes | Yes |
| NFC | — | Yes |
| USB-C | Yes | Yes |
| Camera | Yes | — |
| Battery & power | ||
| Battery life | 10 h | 8 h |
| Battery capacity | 3,400 mAh | — |
| Power source | Removable rechargeable pack | — |
| Hot-swappable batteries | Yes | — |
| Build & durability | ||
| Protection rating | IP68 | IP68 |
| Water protection (IPx) | IPx8 | IPx8 |
| Drop resistance | 2 m | 2 m |
| Operating temperature (min) | -30 °C | -30 °C |
| Operating temperature (max) | 65 °C | 65 °C |
| Weight | 1,100 g | 1,204 g |
| Width | 159 mm | 145 mm |
| Height | 78 mm | 93 mm |
| Depth | 159 mm | 145 mm |
| Housing material | — | Magnesium-aluminum Alloy |
