Bad ElfGNSS / RTK receiver

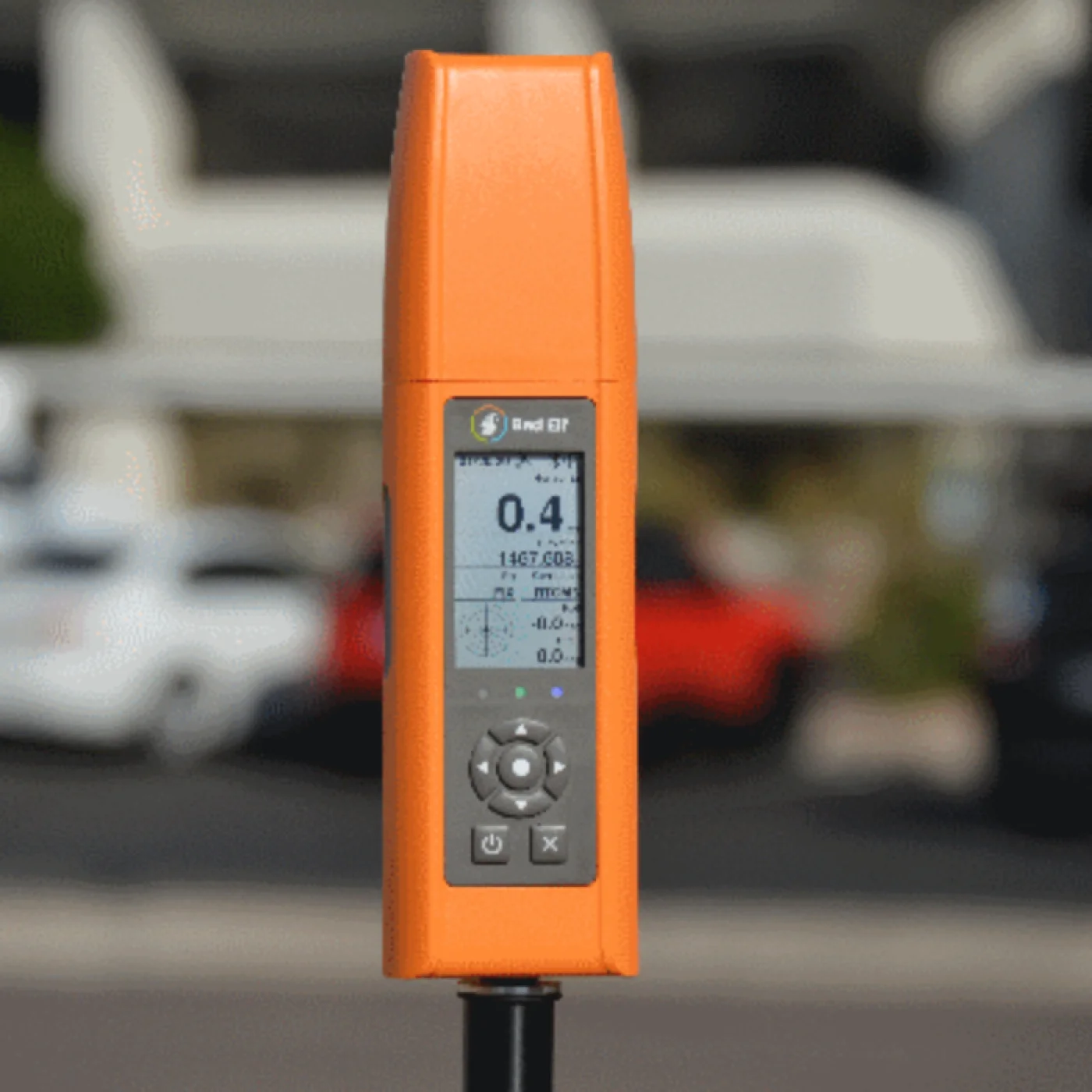

Bad Elf Flex
Bad Elf Flex is a GNSS / RTK receiver released in 2019. Key specs: tracking channels 800, satellite systems supported 5, battery life 11 h, weight 854 g.
3.9Score
Positioning2.7
Battery3.9
Durability2.9
price range—
- Year
- 2019
- Brand
- Bad Elf
- Popularity
- #239 of 301
- Model numbers
- Bad Elf Flex GNSS
800Tracking channels
5Satellite systems supported
11 hBattery life
854 gWeight
Spec guide
How it ranks among GNSS / RTK receivers
Tracking channels · 800Bottom 32%
Satellite systems supported · 5Top 48%
Battery life · 11 hBottom 44%
Weight · 854 gBottom 29%
Compared with every model of this kind in the catalog.
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 5
- Tracking channels
- 800
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- L-band / PPP corrections
- Yes
- Raw data logging (RINEX)
- Yes
Connectivity & safety
- Bluetooth
- Yes
Battery & power
- Battery life
- 11 h
- External power input
- 12 A/h
Build & durability
- Operating temperature (min)
- -30 °C
- Operating temperature (max)
- 60 °C
- Weight
- 854 g
- Width
- 70 mm
- Height
- 254 mm
- Depth
- 70 mm
- Housing material
- Aluminum
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
