FJDGNSS / RTK receiver

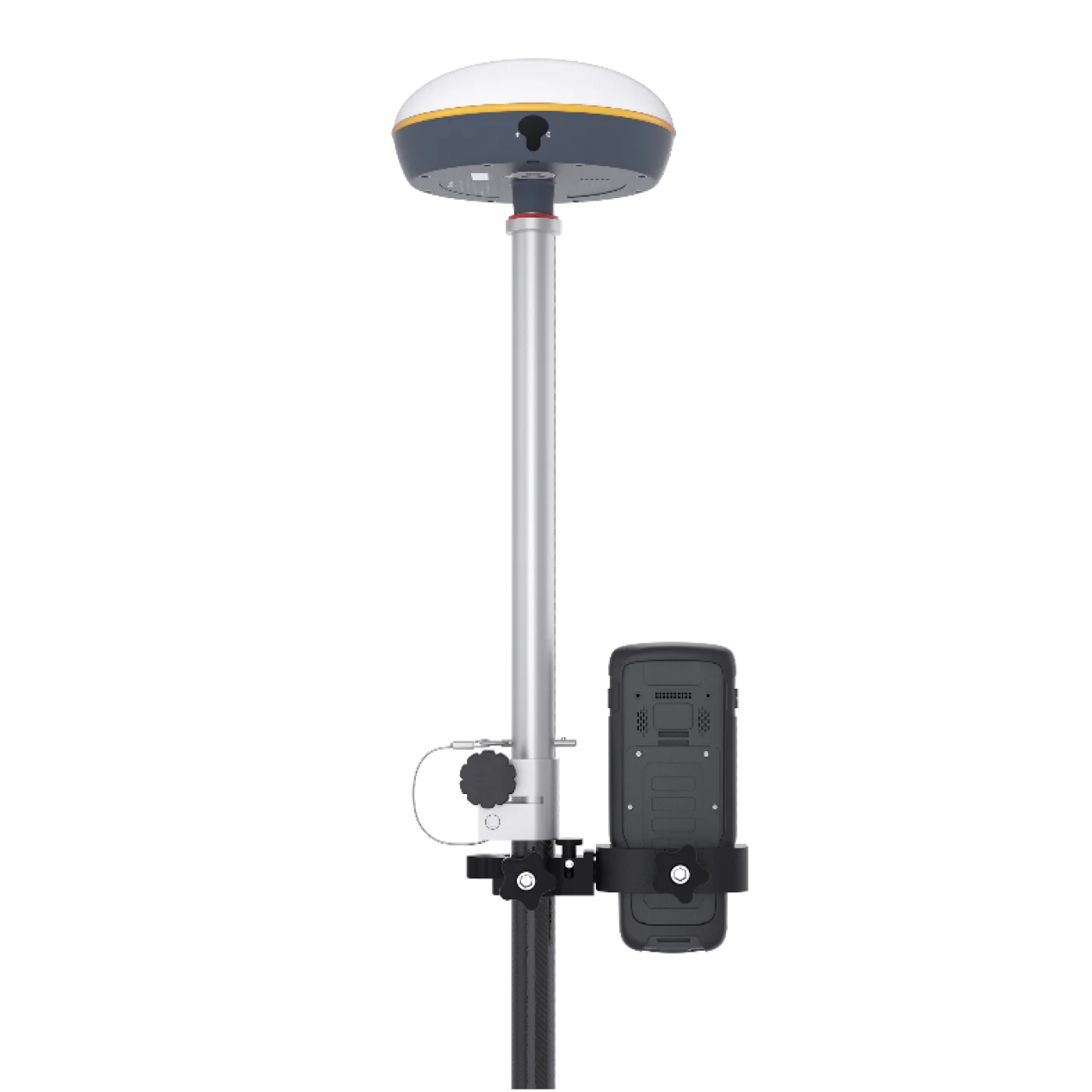

FJD Trion V1t
FJD Trion V1t is a GNSS / RTK receiver released in 2022. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 965, tilt compensation (IMU), satellite systems supported 6.
4.3Score
Positioning7.8
Durability2.6
price range—
- Year
- 2022
- Brand
- FJD
- Popularity
- #167 of 301
- Model numbers
- FJD Trion V1t RTK GNSS
8 mmRTK accuracy (horizontal)
965Tracking channels
YesTilt compensation (IMU)
6Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
IPx7Water protection (IPx)
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 965Bottom 42%
Satellite systems supported · 6Top 12%
Water protection (IPx) · IPx7Bottom 41%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is Trion V1t a good choice?
Satellite systems supported: 6better than 70% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 6
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3
- Tracking channels
- 965
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- RTK accuracy (vertical)
- 15 mm
- Tilt compensation (IMU)
- Yes
- Built-in UHF radio
- Yes
Connectivity & safety
- Bluetooth
- Yes
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Drop resistance
- 1.5 m
- Operating temperature (min)
- -30 °C
- Operating temperature (max)
- 60 °C
- Housing material
- Alloy
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
