eSurveyGNSS / RTK receiver

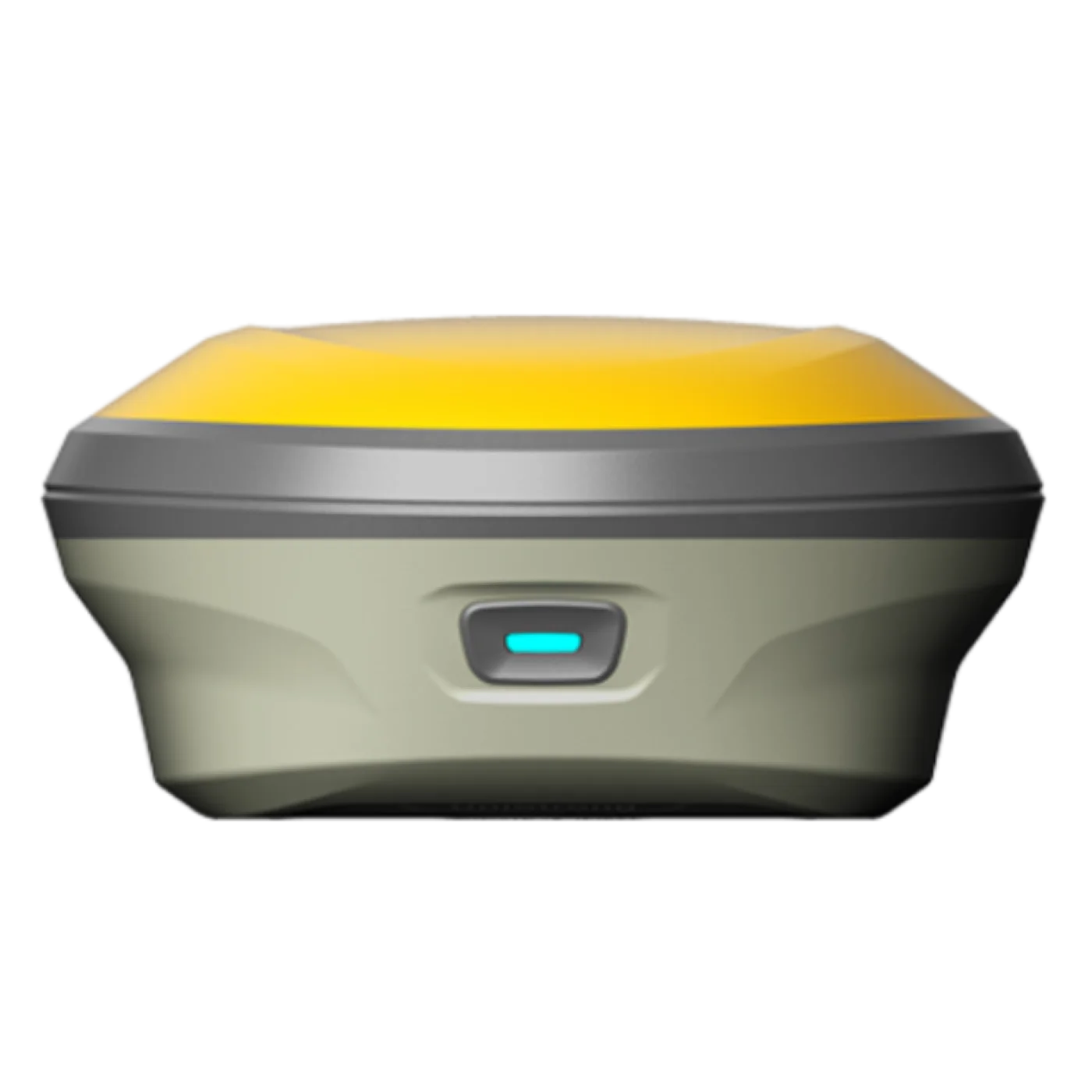

eSurvey E500

Name: eSurvey E500
Brand: eSurvey

eSurvey E500 is a GNSS / RTK receiver released in 2021. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 800, satellite systems supported 6, battery life 12 h.

4.5Score

Positioning6.1

Maps & navigation4.9

Connectivity & safety5.9

Battery4.3

Durability4.3

price range—

Full specifications

Year: 2021
Type: GNSS / RTK receiver
Brand: eSurvey
Popularity: #196 of 301
Model numbers: eSurvey E500 GNSS Receiver

8 mmRTK accuracy (horizontal)

800Tracking channels

6Satellite systems supported

NoMulti-band GNSS (L1 + L5/L2)

12 hBattery life

IPx7Water protection (IPx)

1,060 gWeight

8 GBInternal storage

Spec guide

How it ranks among GNSS / RTK receivers

Spec guide

RTK accuracy (horizontal) · 8 mmTop 47% Tracking channels · 800Bottom 32% Satellite systems supported · 6Top 19% Battery life · 12 hBottom 49% Water protection (IPx) · IPx7Bottom 43% Weight · 1,060 gBottom 15% Internal storage · 8 GBBottom 23%

Compared with every model of this kind in the catalog.

compared with other GNSS / RTK receivers

Why is E500 a good choice?

Satellite systems supported: 6better than 70% of GNSS / RTK receivers

Weak points

Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers

Specifications

Full specifications

Satellite positioning

Satellite systems: GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS)
Satellite systems supported: 6
Multi-band GNSS (L1 + L5/L2): No
Frequency bands: L-band
Tracking channels: 800
SBAS (WAAS / EGNOS): Yes
RTK positioning: Yes
RTK accuracy (horizontal): 8 mm
Static accuracy (horizontal): 2 mm
Correction sources: NTRIP (internet), UHF radio, Cellular modem, L-band / PPP, SBAS
Built-in UHF radio: Yes
L-band / PPP corrections: Yes
Raw data logging (RINEX): Yes
