SatLabGNSS / RTK receiver

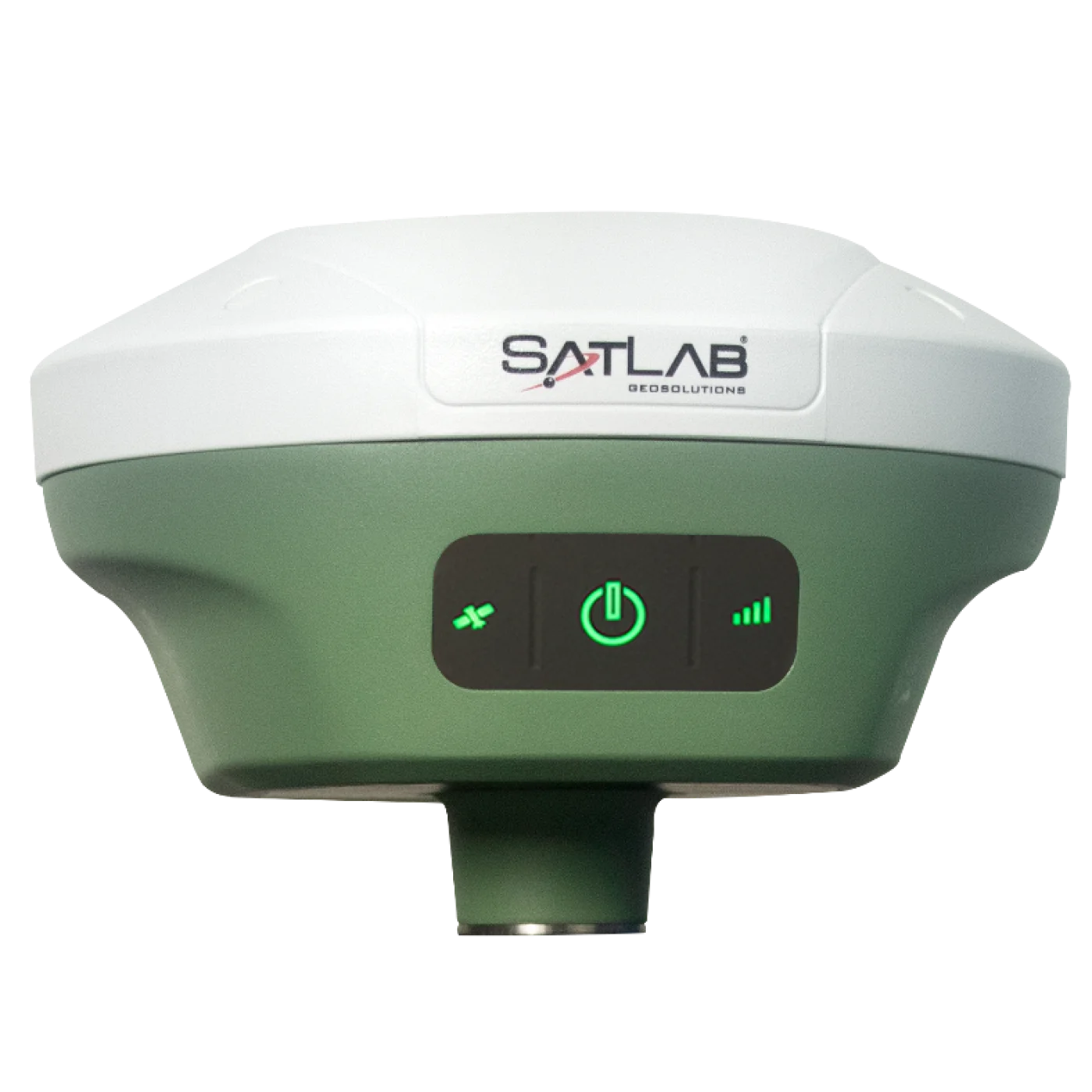

SatLab Freyja
SatLab Freyja is a GNSS / RTK receiver released in 2021. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 800, tilt compensation (IMU), satellite systems supported 6.
5.1Score
Positioning7.7
Maps & navigation4.9
Battery4.8
Durability5.1
price range—
- Year
- 2021
- Brand
- SatLab
- Popularity
- #191 of 301
- Model numbers
- Freyja GNSS Receiver
8 mmRTK accuracy (horizontal)
800Tracking channels
YesTilt compensation (IMU)
6Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
12 hBattery life
IPx7Water protection (IPx)
800 gWeight
8 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 800Bottom 32%
Satellite systems supported · 6Top 19%
Battery life · 12 hBottom 49%
Water protection (IPx) · IPx7Bottom 43%
Weight · 800 gBottom 34%
Internal storage · 8 GBBottom 23%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is Freyja a good choice?
Satellite systems supported: 6better than 70% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 6
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3
- Tracking channels
- 800
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- Static accuracy (horizontal)
- 2.5 mm
- Tilt compensation (IMU)
- Yes
- Max. tilt angle
- 30°
- Built-in UHF radio
- Yes
- L-band / PPP corrections
- Yes
Maps & navigation
- Internal storage
- 8 GB
Connectivity & safety
- Bluetooth
- Yes
Battery & power
- Battery life
- 12 h
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Operating temperature (min)
- -30 °C
- Operating temperature (max)
- 70 °C
- Weight
- 800 g
- Width
- 132 mm
- Height
- 67 mm
- Housing material
- magnesium
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
