SatLabGNSS / RTK receiver

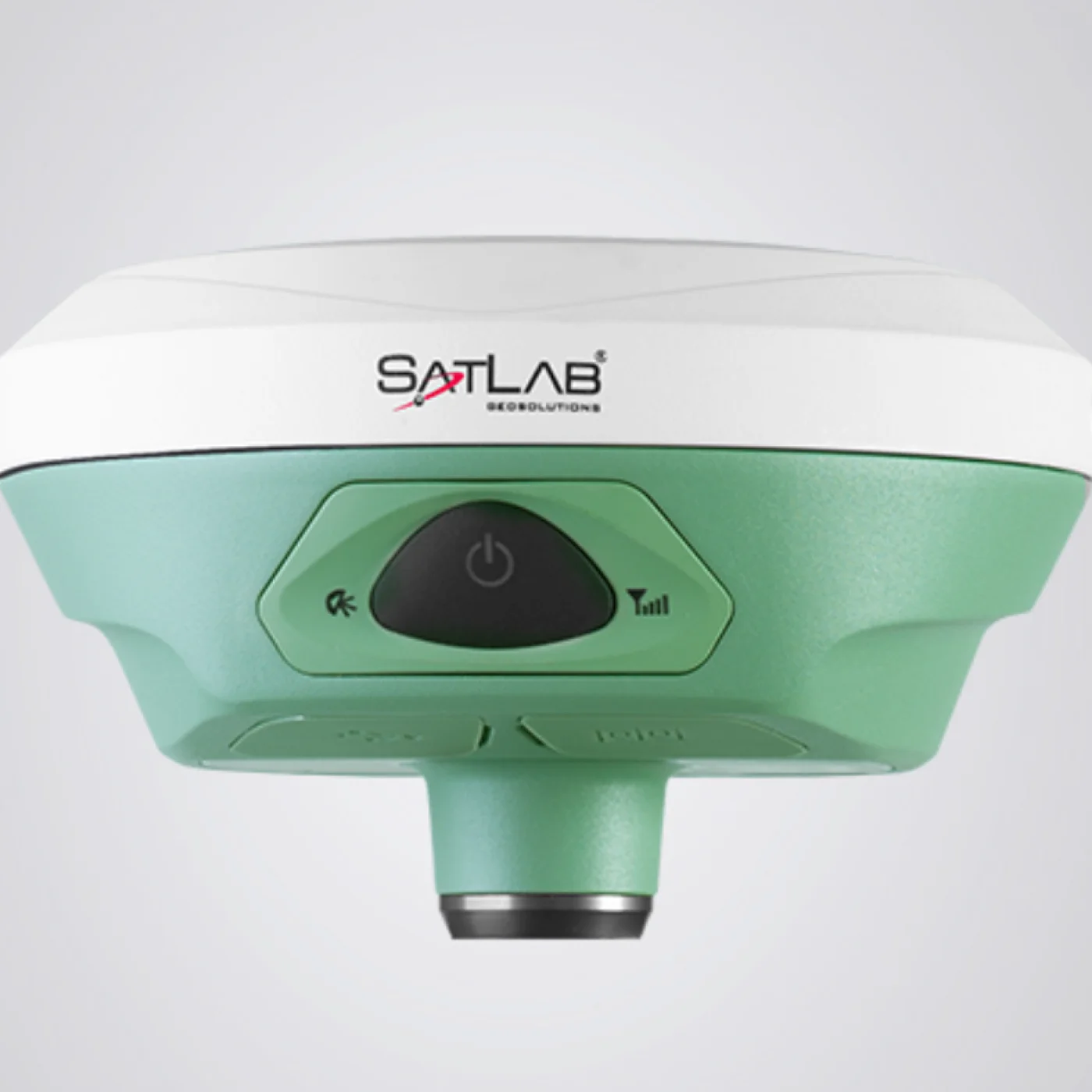

SatLab SL800
SatLab SL800 is a GNSS / RTK receiver released in 2018. Key specs: RTK accuracy (horizontal) 8 mm, tracking channels 555, satellite systems supported 6, multi-band GNSS (L1 + L5/L2).
4.3Score
Positioning7.5
Maps & navigation4.9
Battery3.4
Durability6.6
price range—
- Year
- 2018
- Brand
- SatLab
- Popularity
- #281 of 301
- Model numbers
- SatLab SL800 GNSS Receiver
8 mmRTK accuracy (horizontal)
555Tracking channels
6Satellite systems supported
YesMulti-band GNSS (L1 + L5/L2)
9 hBattery life
IPx7Water protection (IPx)
700 gWeight
8 GBInternal storage
Spec guide
How it ranks among GNSS / RTK receivers
RTK accuracy (horizontal) · 8 mmTop 47%
Tracking channels · 555Bottom 19%
Satellite systems supported · 6Top 19%
Battery life · 9 hBottom 35%
Water protection (IPx) · IPx7Bottom 43%
Weight · 700 gBottom 39%
Internal storage · 8 GBBottom 23%
Compared with every model of this kind in the catalog.
compared with other GNSS / RTK receivers
Why is SL800 a good choice?
Satellite systems supported: 6better than 70% of GNSS / RTK receivers
Weak points
Water protection (IPx): IPx7worse than 93% of GNSS / RTK receivers
Battery life: 9 hworse than 92% of GNSS / RTK receivers
Specifications
Full specifications
Satellite positioning
- Satellite systems supported
- 6
- Multi-band GNSS (L1 + L5/L2)
- Yes
- Frequency bands
- L1, L2, L5, E1, E5a, E5b, E6, B1, B2, B3
- Tracking channels
- 555
- GNSS engine
- NovAtel OEM729
- SBAS (WAAS / EGNOS)
- Yes
- RTK positioning
- Yes
- RTK accuracy (horizontal)
- 8 mm
- L-band / PPP corrections
- Yes
Maps & navigation
- Internal storage
- 8 GB
Connectivity & safety
- Bluetooth
- Yes
- NFC
- Yes
Battery & power
- Battery life
- 9 h
- Battery capacity
- 6,300 mAh
- External power input
- 6-28V DC external power input（5-pin port） with over-discharge protection
Build & durability
- Protection rating
- IP67
- Water protection (IPx)
- IPx7
- Drop resistance
- 2 m
- Operating temperature (min)
- -40 °C
- Operating temperature (max)
- 65 °C
- Weight
- 700 g
- Width
- 128 mm
- Height
- 57 mm
- Housing material
- Magnesium Alloy
Specs are collected from manufacturers and open databases and normalised to one format; check details with the seller before you buy.
